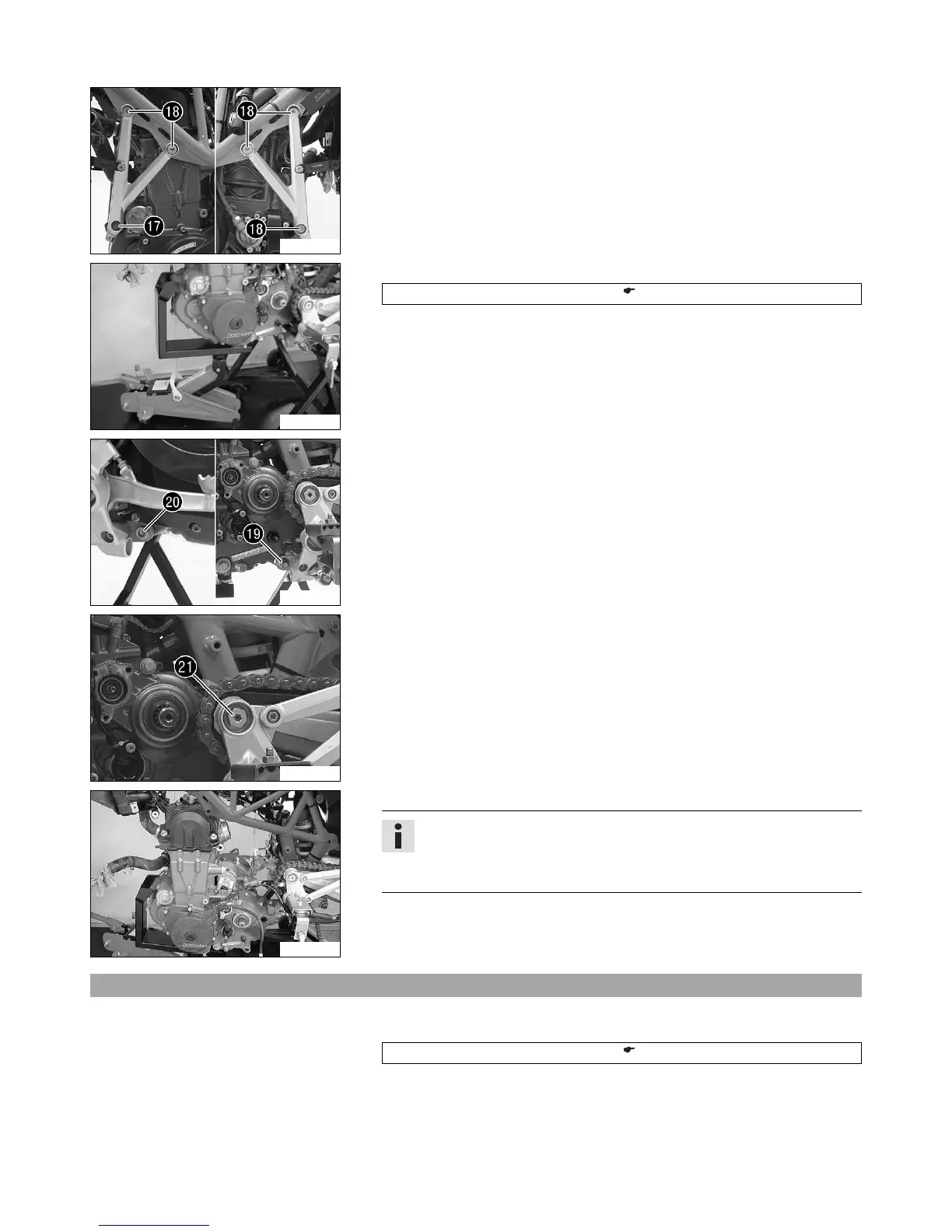

16 ENGINE 103
S00097-10
– Remove nut br.
– Remove screws bs.
– Remove the engine bearer on the left and right.
300222-10
– Position the floor jack under the engine and fix it using the special tool.
Floor jack attachment (75029055000) ( p. 217)
S00099-10
– Remove nut bt and screw ck of the lower engine bracket.
S00098-10
– Remove screw cl of the swingarm pivot.
– Remove the swingarm pivot.
S00095-10
– Lower the engine.
Info
You should have an assistant for this step.
Make sure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments from damage.
16.2 Installing the engine
Preparatory work
– Raise the engine onto the special tool and fix it.
Floor jack attachment (75029055000) ( p. 217)
