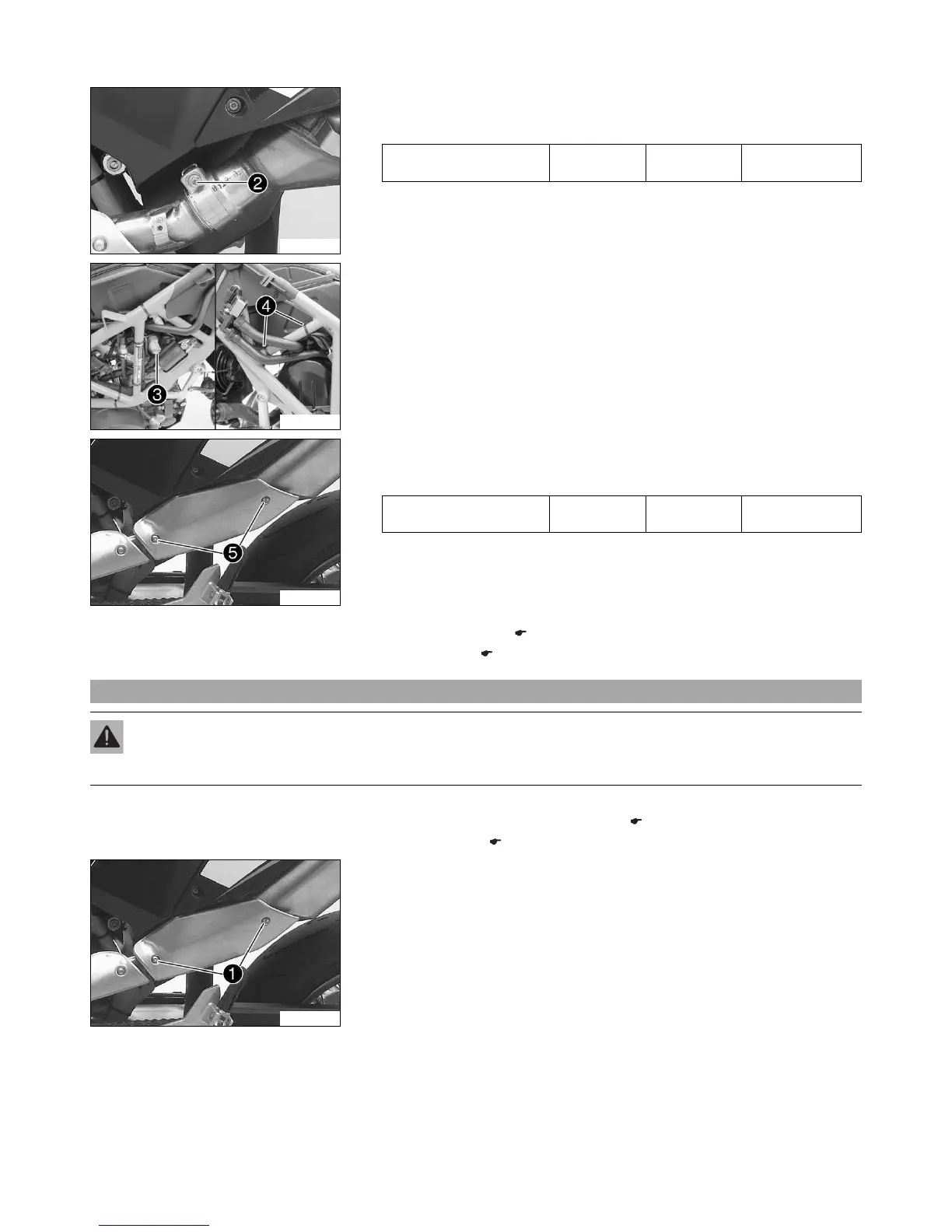

9 EXHAUST 53
S00070-10
– Position the screw clamp.
– Tighten screw 2.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
202035-10
– Plug in connector 3 of the lambda sensor. Position the cable and secure it with
cable binders 4.
S00061-11
– Position the heat guard.
– Mount and tighten screws 5.
Guideline
Screw, exhaust heat shield M5 8 Nm
(5.9 lbf ft)
Loctite
®
243™
Finishing work
– Mount the side cover. ( p. 60)
– Mount the seat. ( p. 60)
9.3 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Preparatory work
– Raise the motorcycle with the work stand. ( p. 11)
– Remove the seat. ( p. 59)
S00061-12
Main work
– Remove screws 1.
– Remove the exhaust heat guard.
