16 ENGINE 110

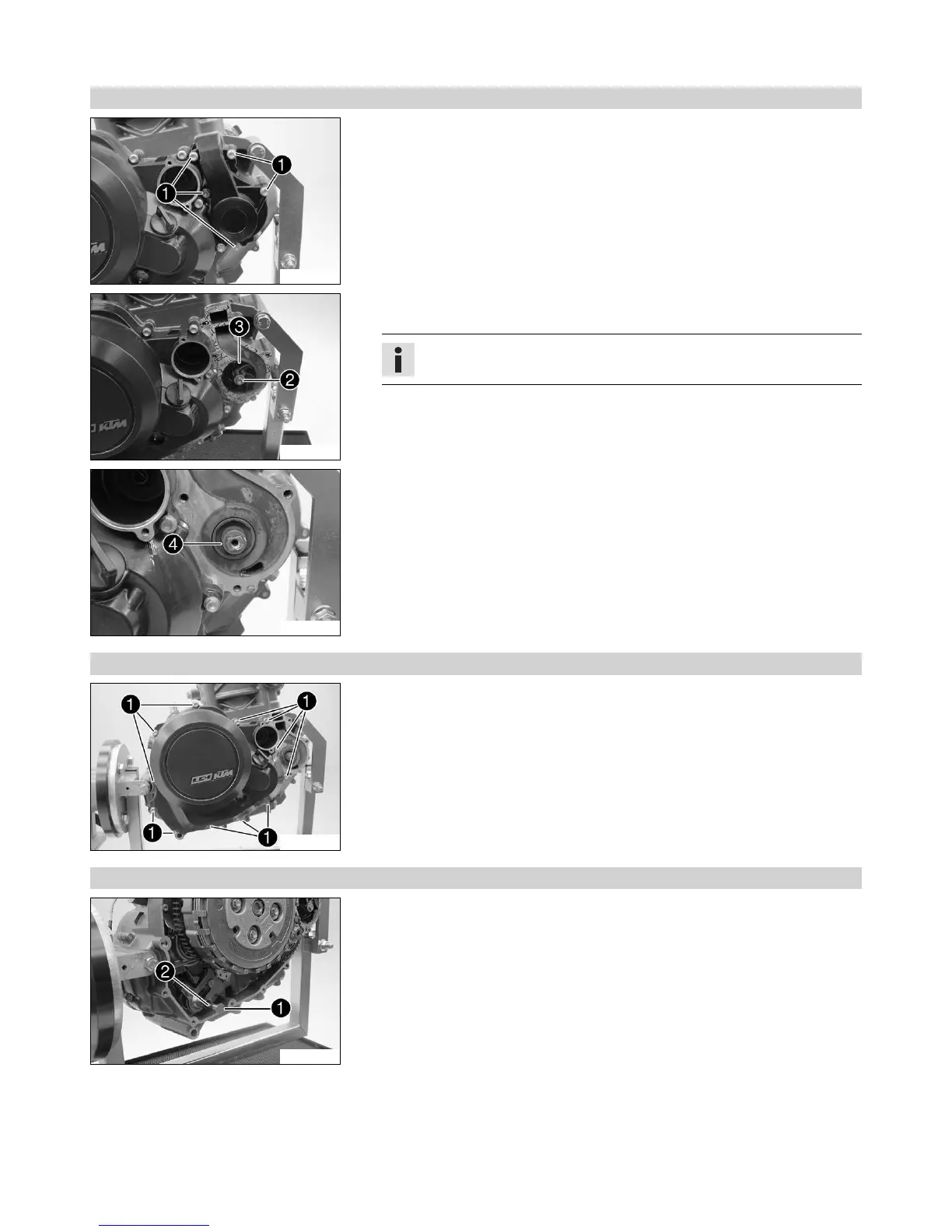

16.3.11 Removing water pump wheel
300012-10
– Remove screws 1. Take off the water pump cover.
300013-10
– Remove screw 2. Take off the water pump wheel 3.
– Take off the water pump cover seal.
Info
Do not lose the centering pins.
300014-10
– Remove the shaped washer 4.
16.3.12 Removing clutch cover
300015-10
– Remove screws 1. Take off the clutch cover.
– Take off the dowels. Remove the clutch cover seal.
16.3.13 Removing spacer and spring
300154-10
– Remove the spacer 1 and spring 2 of the shift shaft.
