11 FUEL TANK, SEAT, TRIM 60

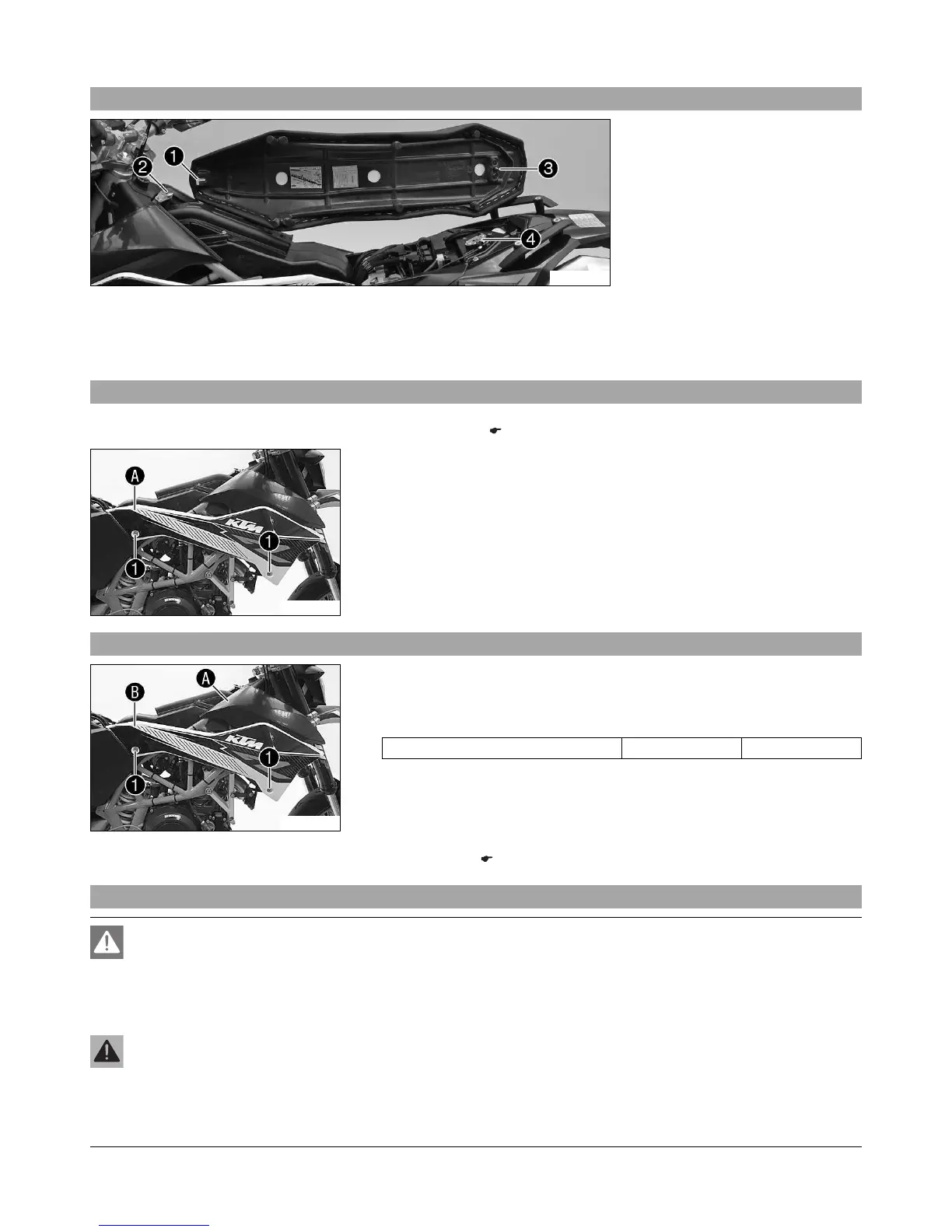

11.4 Mounting the seat
601887-10
– Hook slot 1 of the seat onto screw 2, press the rear downward and at the same time push it forward.
– Push locking pin 3 into lock housing 4 and push the back of the seat down until the locking pin locks in place with an audible
click.
– Finally, check that the seat is correctly mounted.
11.5 Taking off the side cover
Preparatory work
– Remove the seat. ( p. 59)
S00079-10
Main work
– Remove screws 1.
– Pull off the side cover in area A and take off from above.
– Repeat the operation on the opposite side.
11.6 Mounting the side cover
S00079-11
Main work
– Attach the side cover in area A and engage it in area B.
– Mount and tighten screws 1.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
– Repeat the operation on the opposite side.
Finishing work
– Mount the seat. ( p. 60)
11.7 Checking the fuel pressure
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Condition
The fuel tank is completely full.
