16 ENGINE 116

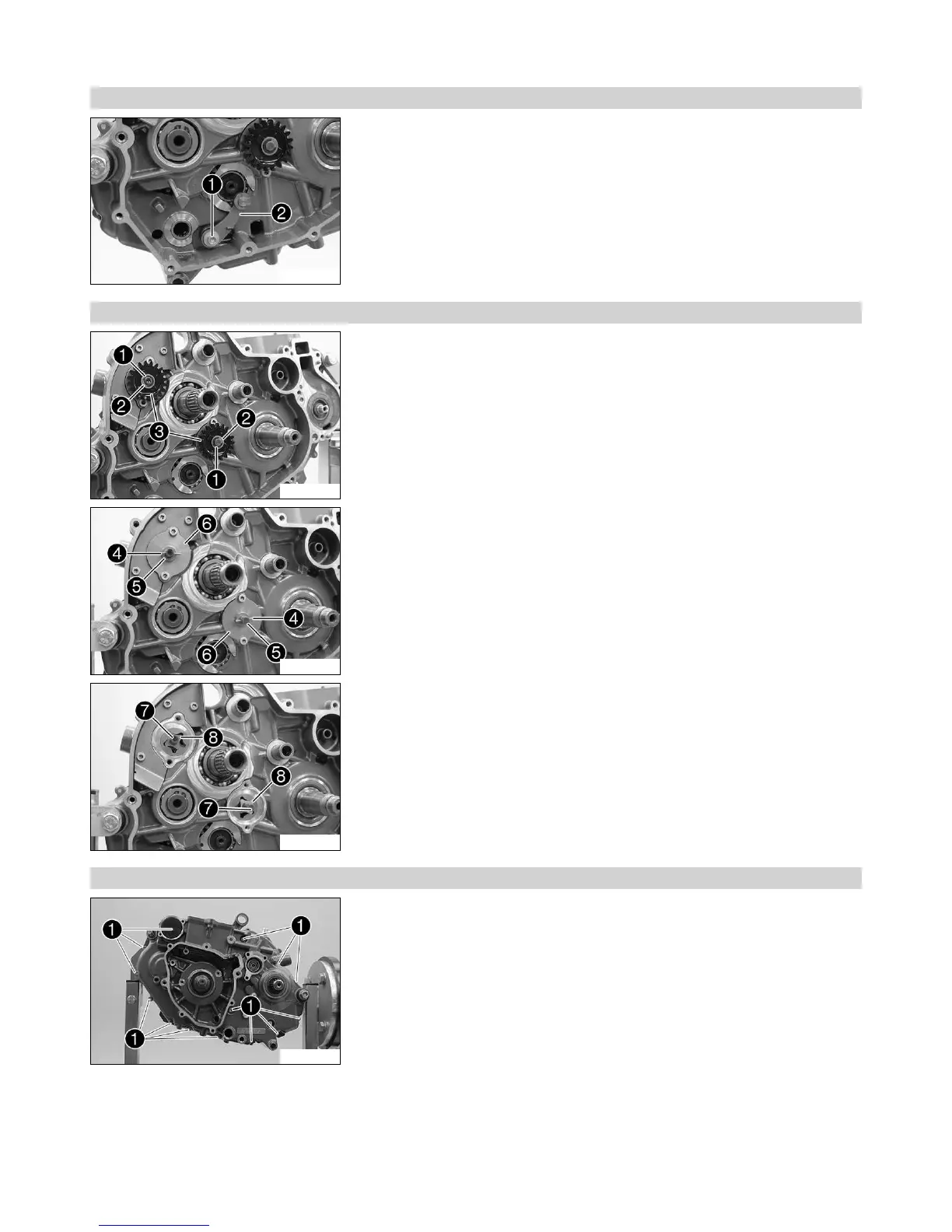

16.3.28 Removing locking lever
300069-10
– Remove screw 1.
– Take off locking lever 2 with the sleeve and spring.
16.3.29 Removing oil pumps
300070-10
– Remove the lock washers 1 and normal washers 2 from both oil pumps.
– Take off the oil pump toothed wheels 3.
300071-10
– Remove the pins 4 and washers 5.
– Remove screws. Take off the oil pump cover 6.
300072-10
– Remove both oil pump shafts 7 with internal rotors 8.
– Take the external rotors out of the engine case.
16.3.30 Removing left engine case
300075-10
– Remove screws 1.
– Swing the left section of the engine case up and remove the nut or screw of the
engine fixing arm.
