KTM 2013 690 SMC R EU User Manual

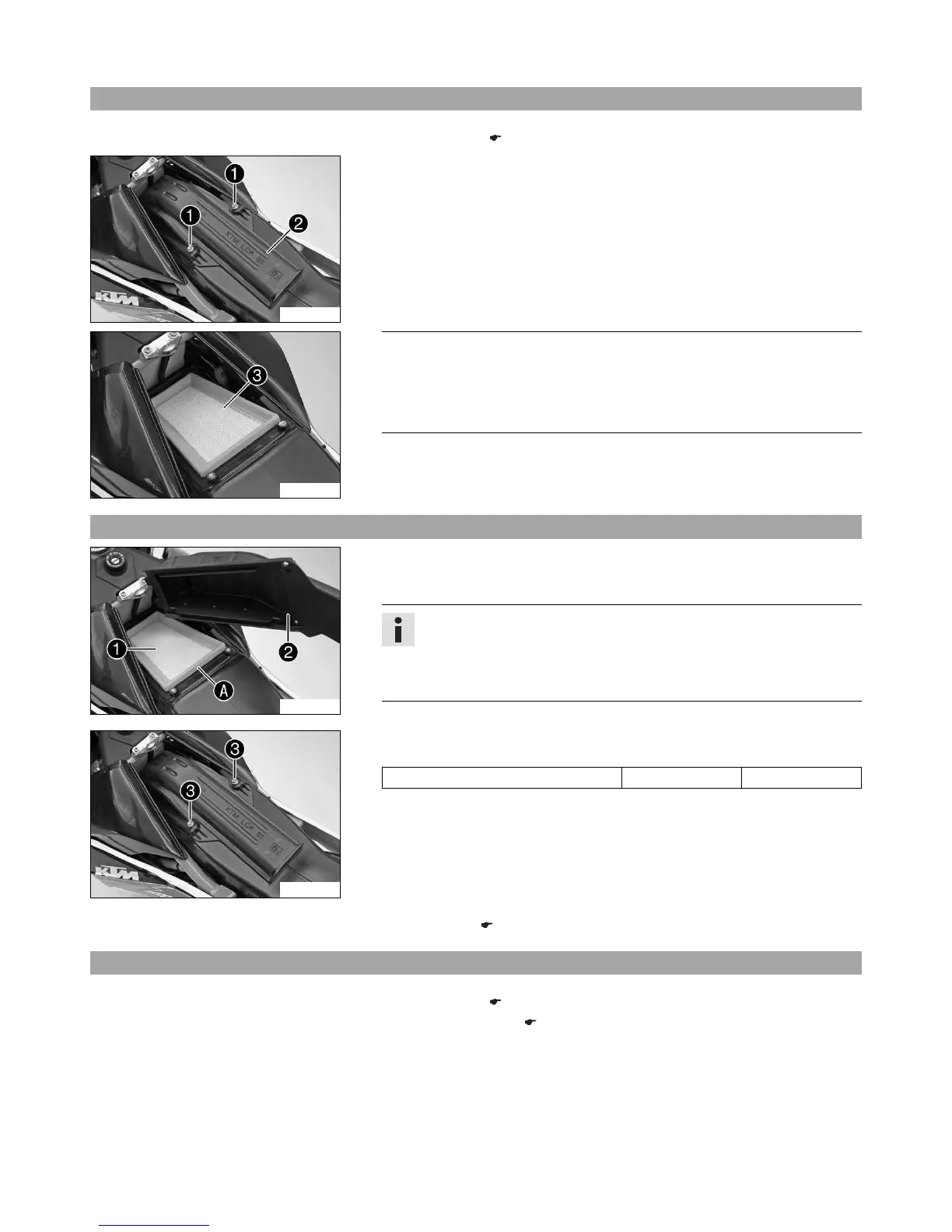

10 AIR FILTER 56
10.1 Removing the air filter
Preparatory work
– Remove the seat. ( p. 59)
601882-10
Main work
– Remove screws 1. Take off air filter box top 2.
601880-10
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the
engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the
engine and result in increased wear.
– Remove air filter 3.
10.2 Installing the air filter
601881-10
Main work
– Clean the air filter box.
– Mount air filter 1.
Info
The air filter must lie flush against the air filter box along the entire sealing
surface A.
If the air filter is not correctly mounted, dust and dirt can enter the engine
and cause damage.
– Hook air filter box top 2 into the front of the air filter box and swing down.
601882-11
– Mount and tighten screws 3.
Guideline
Screw, air filter box top M6 2 Nm (1.5 lbf ft)
Finishing work
– Mount the seat. ( p. 60)
10.3 Removing the air filter box
Preparatory work
– Remove the seat. ( p. 59)
– Take off the side cover. ( p. 60)
