20 IGNITION SYSTEM 172

20.3 Ignition coil – checking the secondary winding

Condition

Ignition coil cylinder 1 is disconnected.

Spark plug connector cylinder 1 has been removed.

Preparatory work

– Remove the seat. ( p. 59)

– Take off the side cover. ( p. 60)

600739-13

Main work

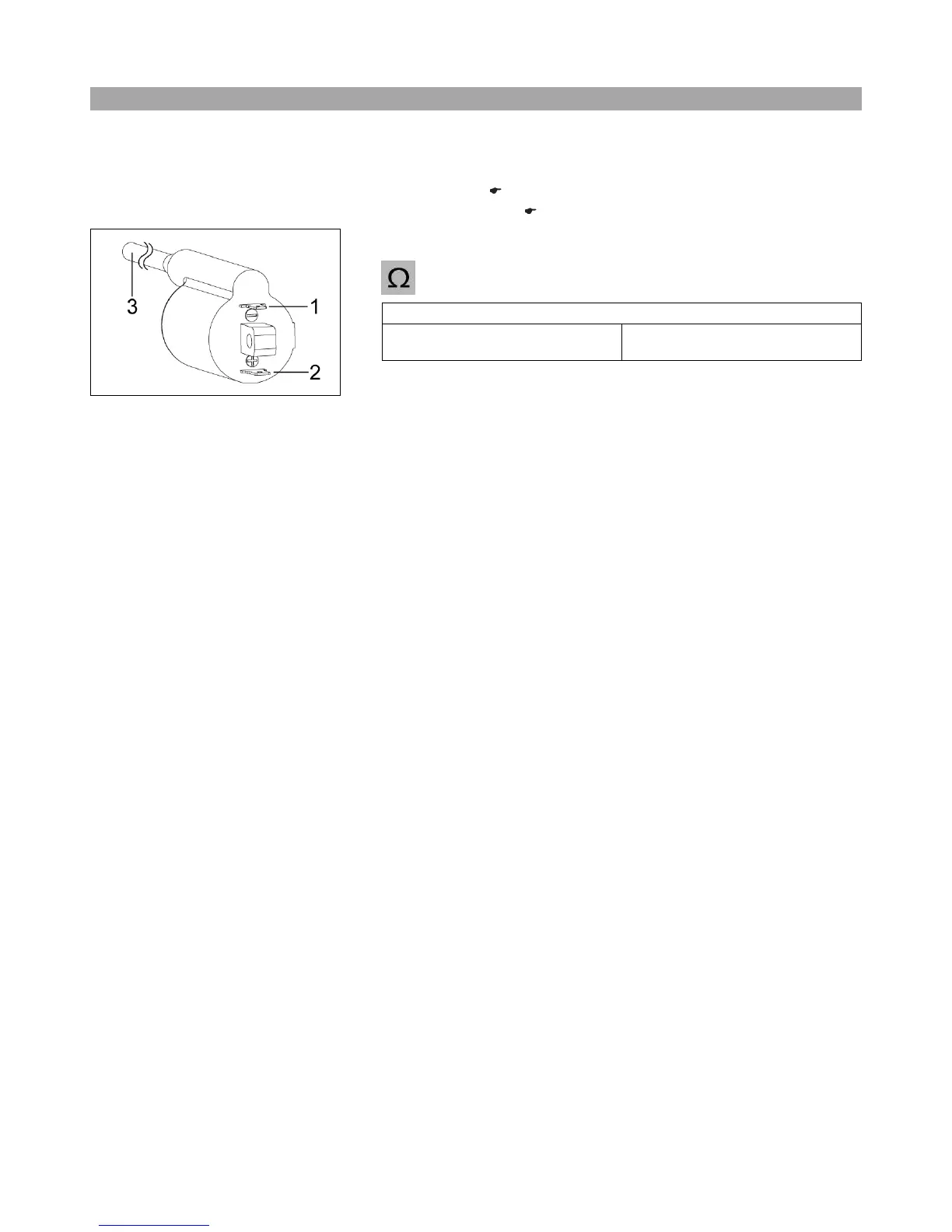

Ignition coil cylinder 1 – check the secondary winding resistance

– Measure the resistance between the specified points.

Ignition coil pin 2 (+) – Ignition coil pin 3

Ignition coil

Resistance of secondary winding

at: 20 °C (68 °F)

10.4… 15.6 kΩ

» If the displayed value does not correspond to the nominal value:

– Change the ignition coil.
