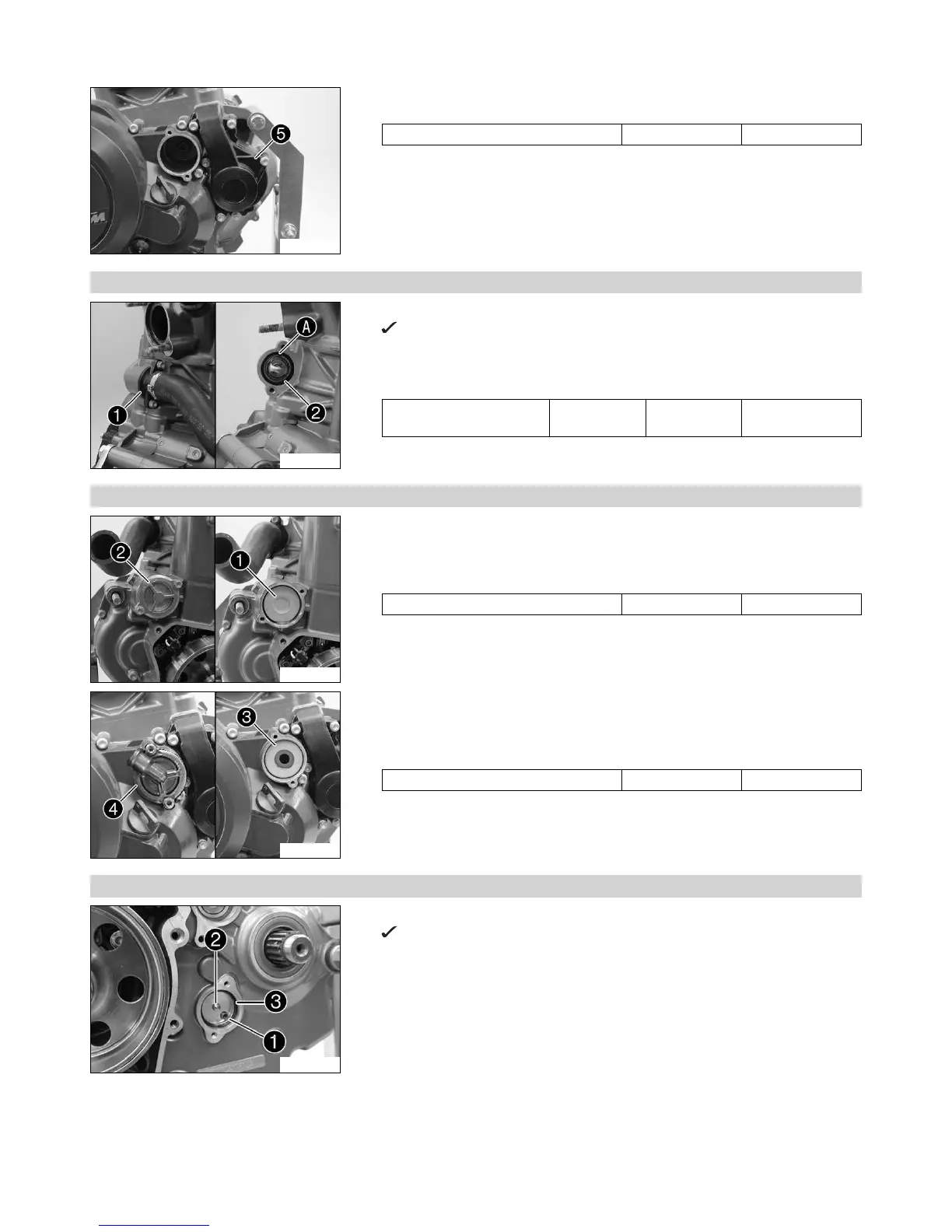

16 ENGINE 157
300012-12
– Put on the water pump cover 5. Mount and tighten screws.
Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
16.5.27 Installing thermostat
300010-11
– Position the thermostat 1 with the gasket.
The drill hole A must face upward.
– Install the thermostat case 2 with the radiator hose.
– Mount and tighten the screws.
Guideline
Screw, thermostat housing M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.28 Installing the oil filter
300009-11
– Insert the oil filter 1.
– Lubricate the O-ring of the oil filter cover. Install the oil filter cover 2.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
306801-11
– Insert the oil filter 3.
– Lubricate the O-ring of the oil filter cover. Install the oil filter cover 4.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
16.5.29 Installing gear position sensor
300007-11
– Mount the contact springs 1 and contact bolt 2.
The contact bolts are mounted with the flat side forward; the pointed sides
face the sensor.
– Position O-ring 3.
