16 ENGINE 147

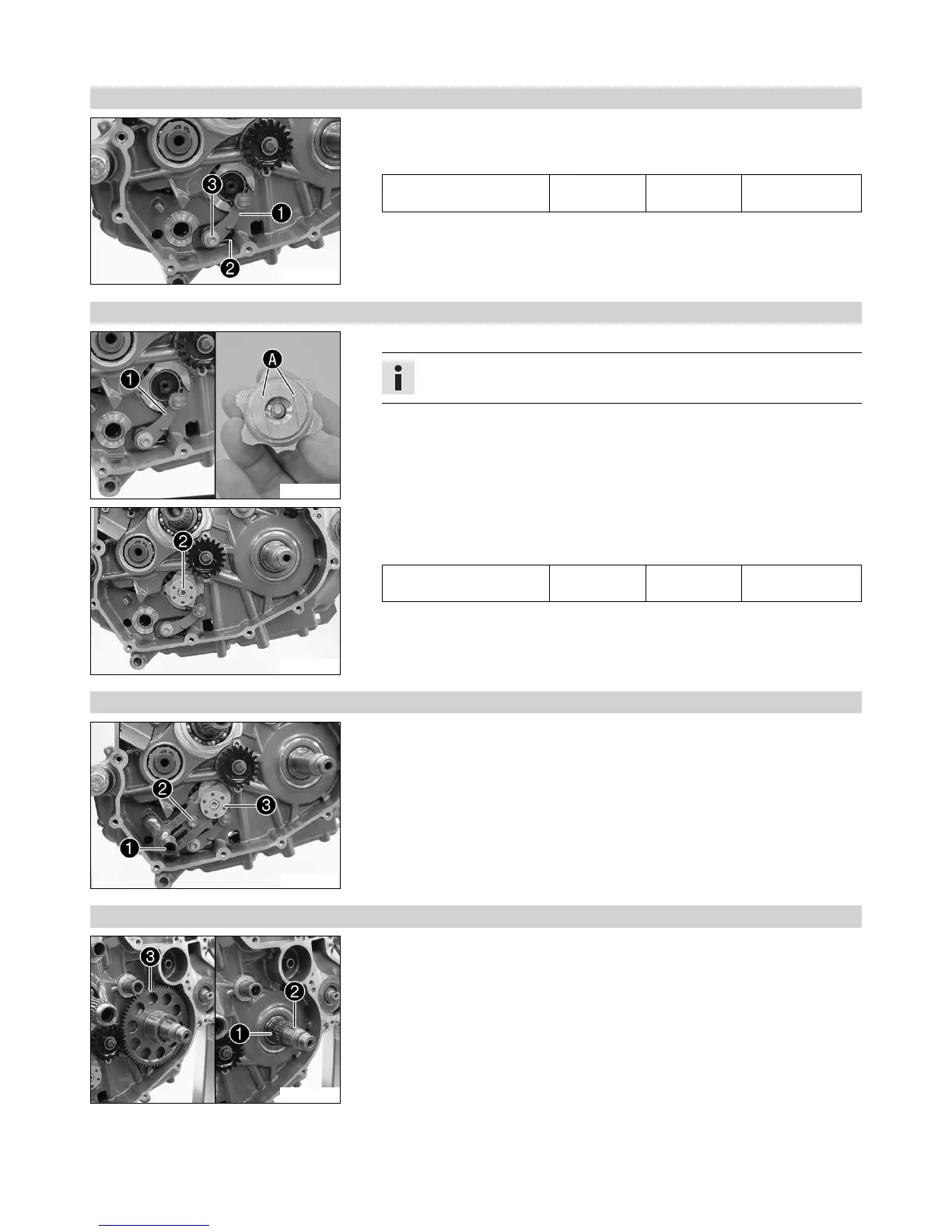

16.5.5 Installing locking lever
300069-11
– Position locking lever 1 with sleeve and spring 2.
– Mount and tighten screw 3.
Guideline
Screw, locking lever M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.6 Installing shift drum locating
300068-10
– Press locking lever 1 down and position shift drum locating.
Info
The flat surfaces A of the shift drum locating are not symmetric.
300067-11
– Release the locking lever.
– Mount and tighten screw 2.
Guideline
Screw, shift drum locating M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.7 Installing shift shaft
300066-11
– Slide shift shaft 1 with the washer into the bearing seat.
– Push sliding plate 2 away from the shift drum locating 3. Insert the shift shaft all
the way.
– Let the sliding plate engage in the shift drum locating.
– Shift through the transmission.
16.5.8 Installing starter drive
300065-11
– Install the two needle bearings 1 and the woodruff key 2.
– Push on the freewheel gear 3.
