6 FORK, TRIPLE CLAMP 17
S00058-10

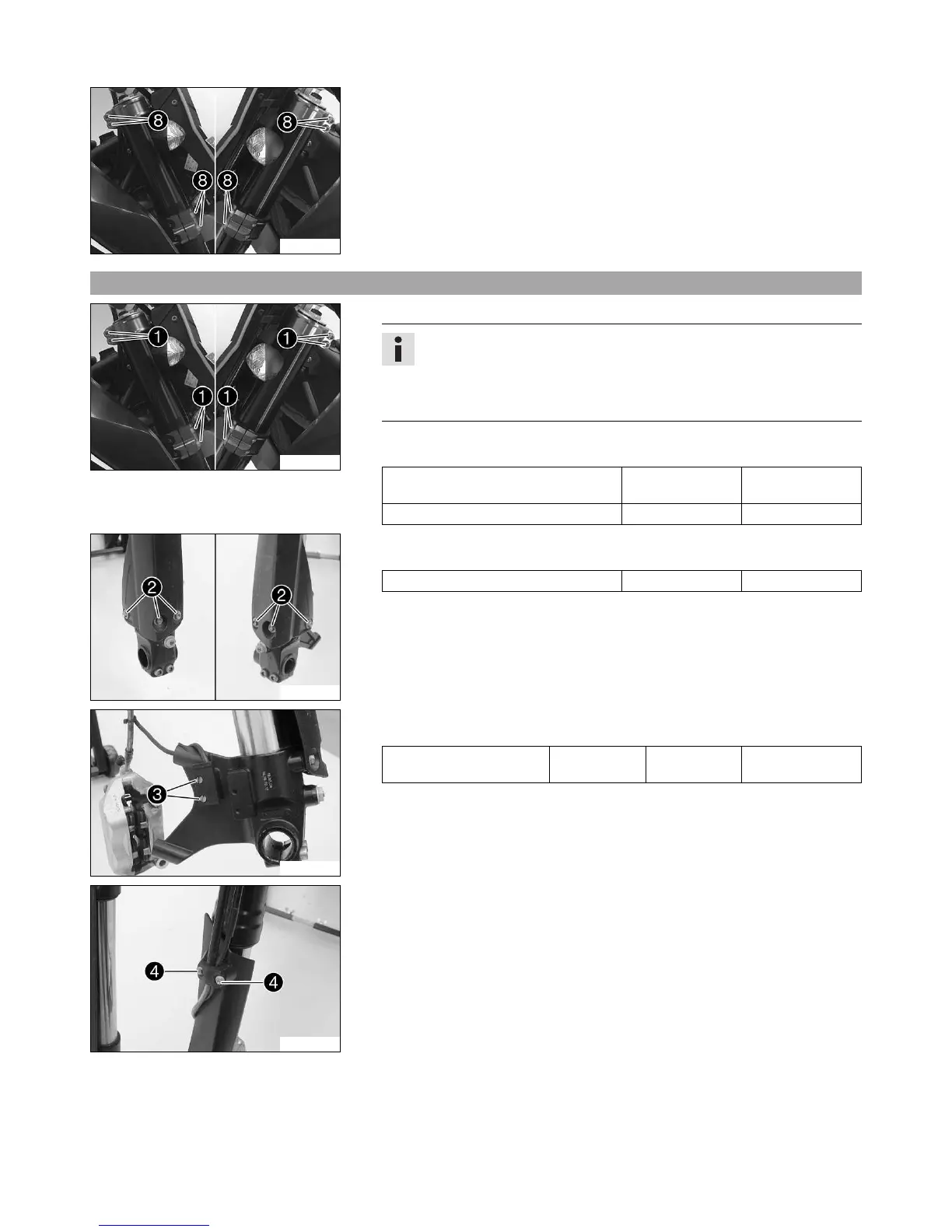

– Loosen the screws 8 of the triple clamp. Remove the fork legs from the bottom.
6.8 Installing the fork legs
S00058-11
– Slide the fork legs into the triple clamps on both sides.
Info
The bleeder screws must face forwards.
The topmost milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
The upper fork projection must be the same on both sides.
– Tighten screws 1 on both sides.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
201378-11
– Position the fork protection. Mount and tighten screws 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
201377-11
– Position the wheel speed sensor. Mount and tighten screws 3.
Guideline
Screw, wheel speed sensor M4 1 Nm
(0.7 lbf ft)
Loctite
®
243™
201376-11
– Position the brake line, wiring harness and clamp.
– Mount and tighten screws 4.
