16 ENGINE 114

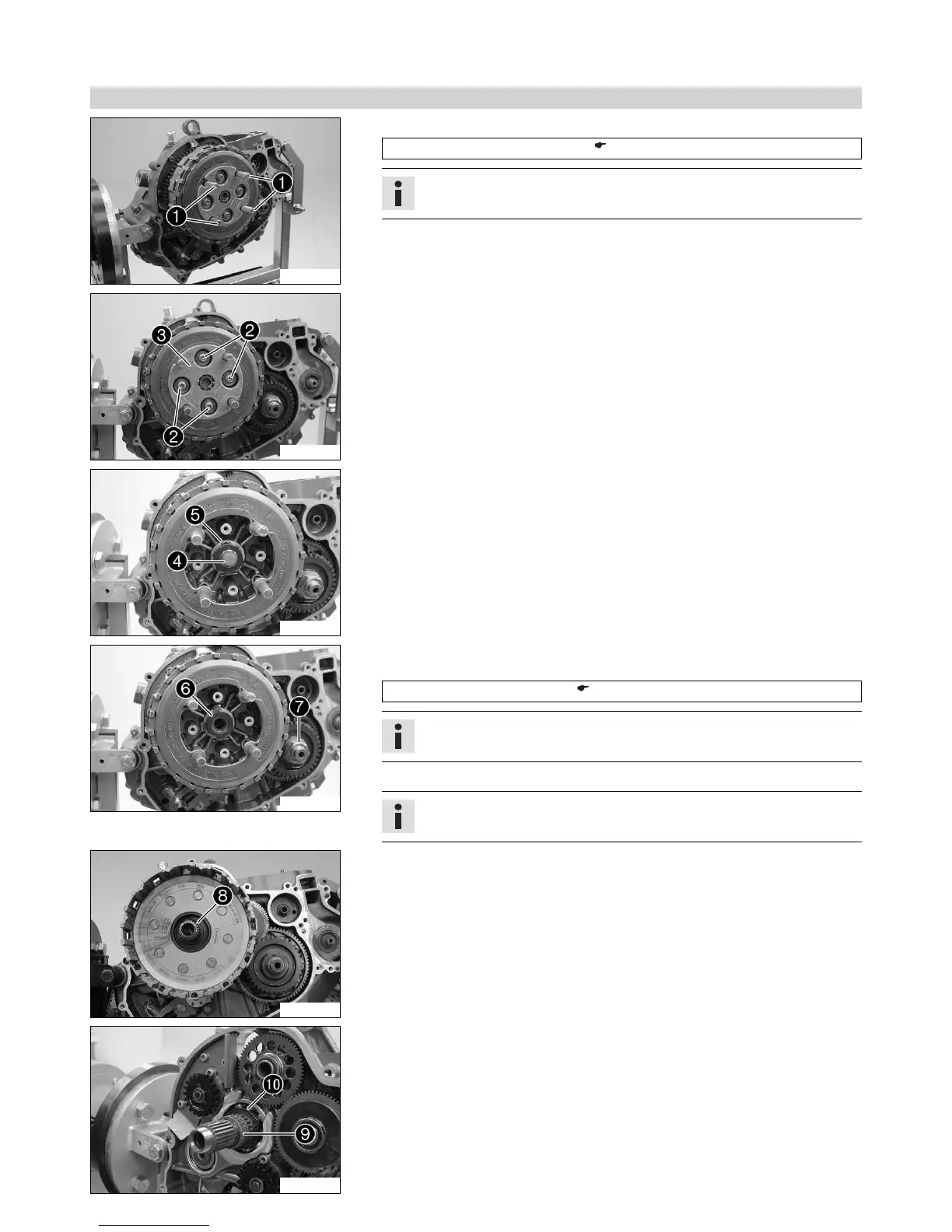

16.3.23 Removing clutch cage
300051-10
– Clamp the antihopping clutch with special tool 1.
Assembly screws (75029033000) ( p. 215)
Info
Apply the special tool with the hand only, do not use another tool.
300052-10
– Loosen the screws 2 diagonally and remove them with their spring retainers and
clutch springs.
– Remove the pressure cap 3.
300053-10
– Remove the pressure piece 4.
– Bend up the lock washer 5.
300054-10
– Hold the clutch cage using the special tool and remove the nut 6 of the inner
clutch hub.
Gear segment (75029081000) ( p. 218)
Info
Make sure that the crankshaft is not blocked.
– Remove the nut 7 of the primary gear.
Info
Left-handed thread!
302125-10
– Take off the stepped washer and remove the half-washers 8.
– Take off the clutch cage.
300056-10
– Remove needle bearing 9 and supporting plate bk.
