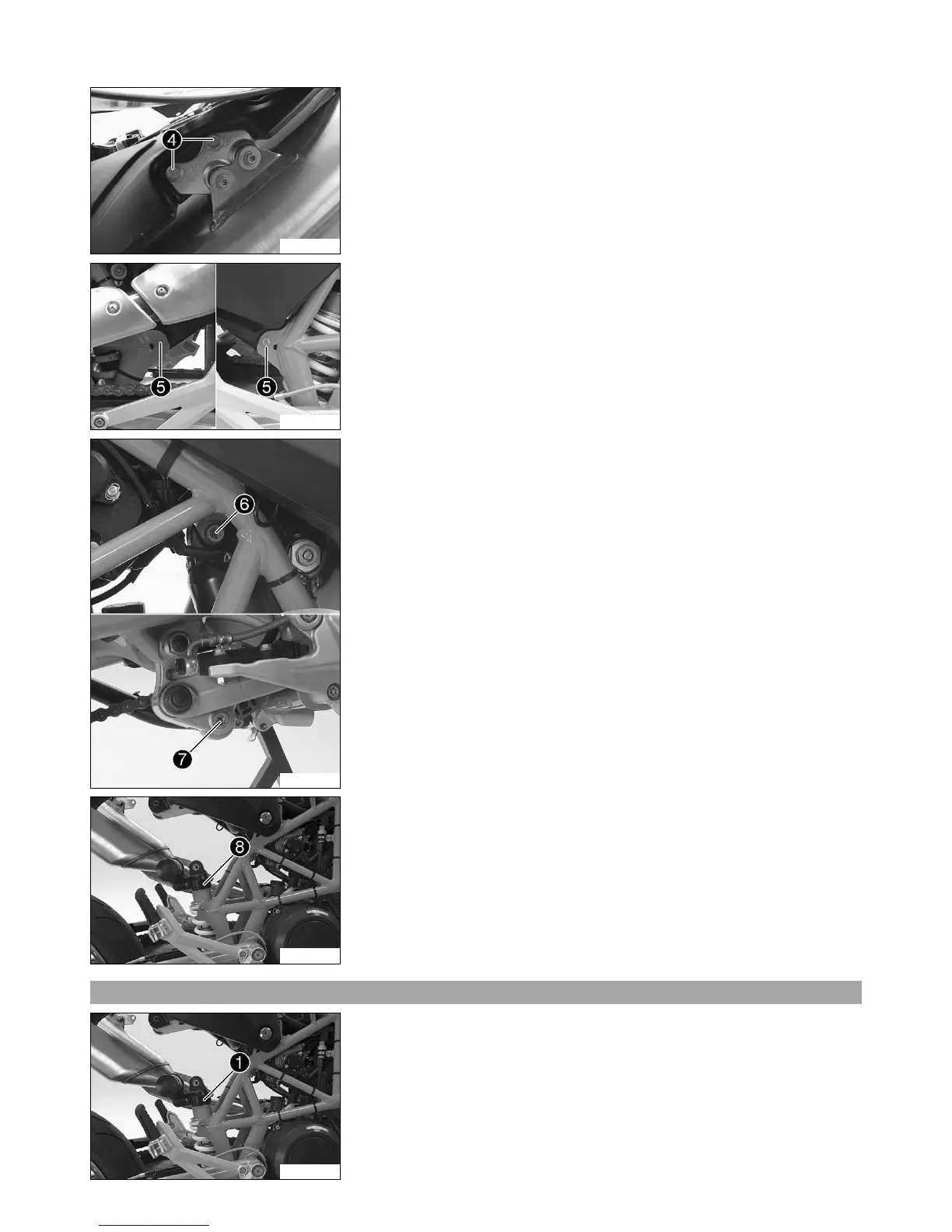

8 SHOCK ABSORBER, SWINGARM 36

S00064-12

– Lift the rear fairing.

– Remove screws 4.

S00065-10

– Remove screws 5.

S00066-10

– Loosen screw 6.

– Remove screw 7.

– Remove screw 6.

S00067-10

– Fold the rear upward.

– Take out shock absorber 8 toward the top.

8.10 Installing the shock absorber

S00067-11

Main work

– Fold the rear upward and maneuver in shock absorber 1 from above.

– Fold the rear down and position the shock absorber.
