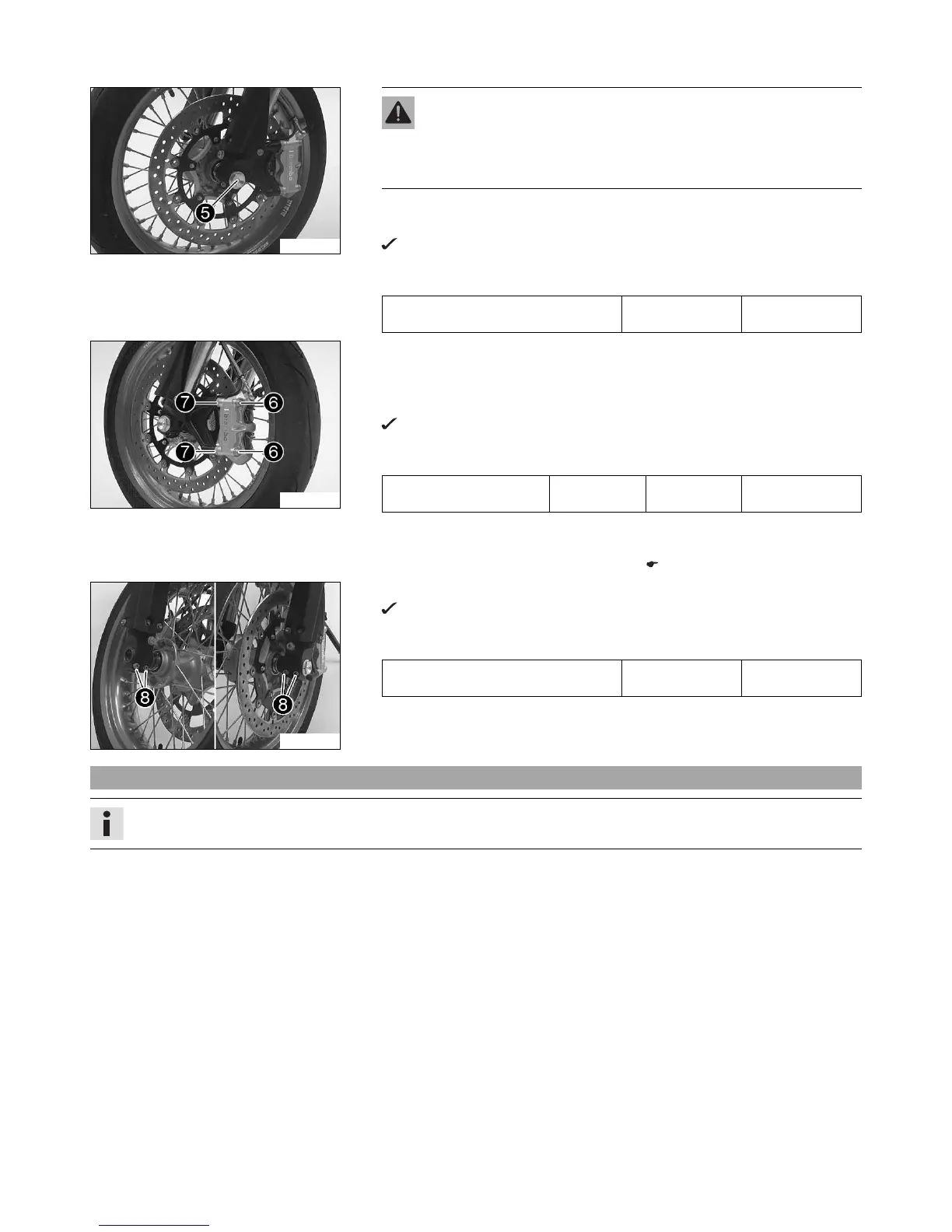

6 FORK, TRIPLE CLAMP 18
S00059-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
– Clean screw 5 and the wheel spindle.
– Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
– Mount and tighten screw 5.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
S00055-11
– Position the brake caliper and check that the brake linings are seated correctly.
– Mount screws 6 spacers 7 but do not tighten.
– Operate the hand brake lever repeatedly until the brake linings lie on the brake disc
and there is a pressure point. Fix the hand brake lever in the activated position.
The brake caliper straightens.
– Fully tighten screw 6.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Remove the fixation of the hand brake lever.
– Unload the rear of the vehicle.
– Remove the motorcycle from the work stand. ( p. 12)
S00057-10
– Pull the front brake and compress the fork powerfully a few times.
The fork legs straighten.
– Tighten screws 8.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
6.9 Servicing the fork
Info
These operations are the same on both fork legs.
Condition
The fork legs have been removed.
