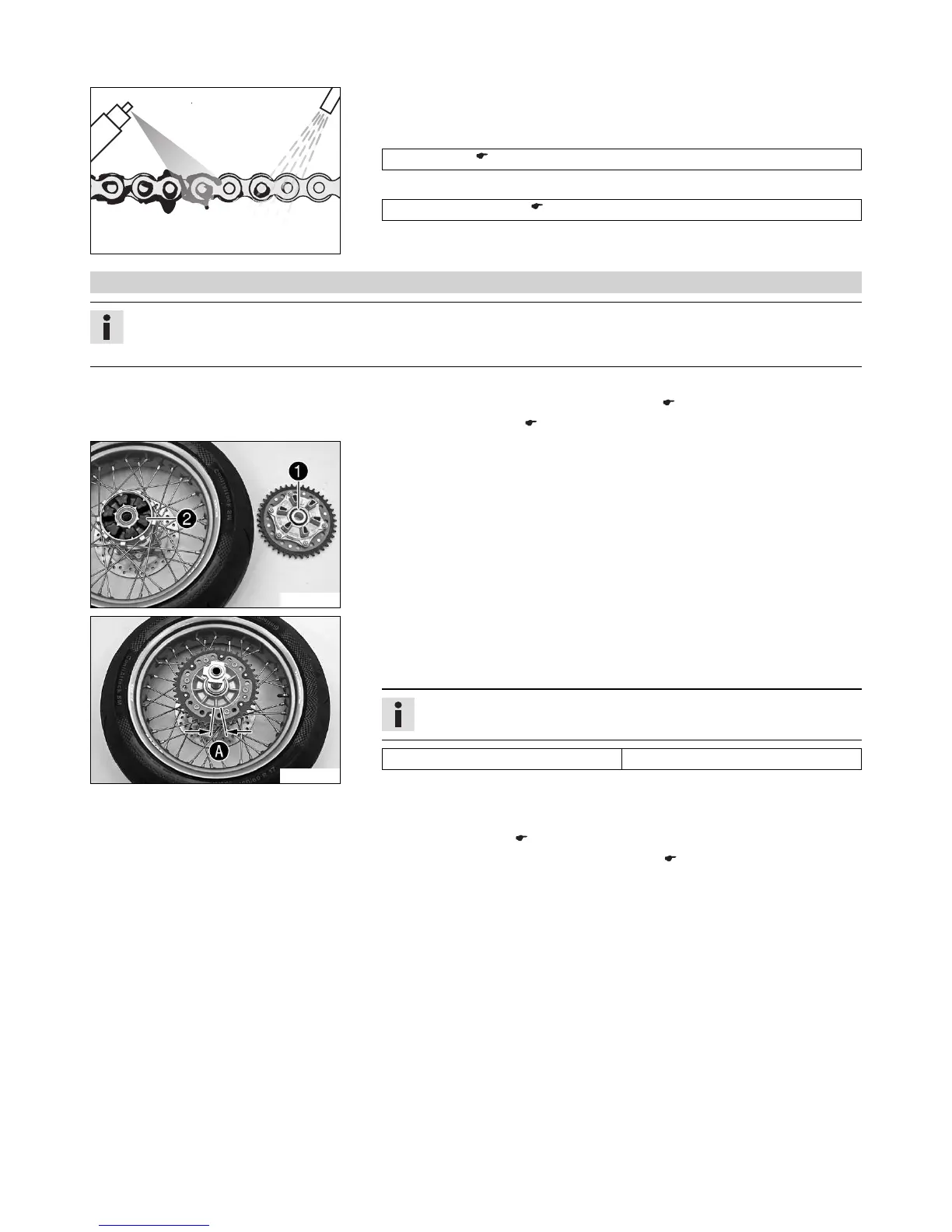

12 WHEELS 78
400725-01
– Clean the chain regularly.
– Rinse off loose dirt with a soft jet of water.
– Remove old grease remains with chain cleaner.
Chain cleaner ( p. 208)
– After drying, apply chain spray.
Chain lube for road use ( p. 208)
12.7.10 Checking the rear hub rubber dampers
Info
The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. They eventually wear out during
operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub will be damaged.
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
– Remove the rear wheel. ( p. 72)
601906-10
Main work
– Check bearing 1.
» If the bearing is damaged or worn:
– Replace the bearings.
– Check rubber dampers 2 of the rear hub for damage and wear.
» If the rubber dampers of the rear hub are damaged or worn:
– Change all rubber dampers in the rear hub.
601905-10
– Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert
the wheel spindle in the hub.
– To check play A, hold the rear wheel tight and try to rotate the rear sprocket with
your hand.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear wheel ≤ 5 mm (≤ 0.2 in)
» If play A is larger than the specified value:
– Change all rubber dampers in the rear hub.
Finishing work
– Install the rear wheel. ( p. 73)
– Take the motorcycle off of the rear wheel stand. ( p. 10)
