7 HANDLEBAR, CONTROLS 29

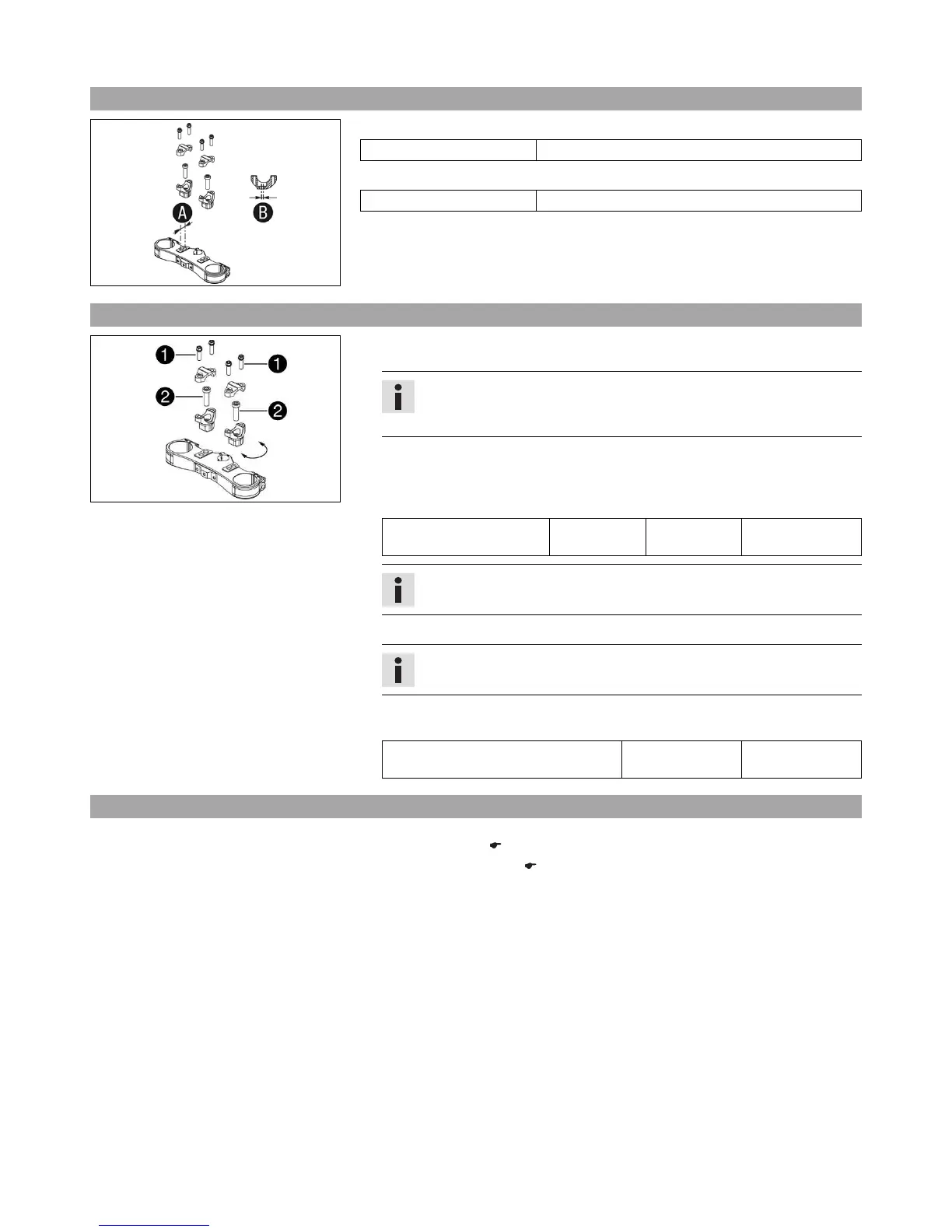

7.1 Handlebar position
601874-10
In the upper triple clamp, there are 2 drill holes separated by a distance of A.
Hole distance A 15 mm (0.59 in)
The drill holes on the handlebar holder are centered and separated by a distance of B.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can
be mounted in the position that is most comfortable for the rider.
7.2 Adjusting the handlebar position
601875-10
– Remove the four screws 1. Remove the handlebar clamps. Take off the handlebar
and set it aside.
Info
Cover the motorcycle and attachments to protect them from damage.
Do not kink the cables and lines.
– Remove the two screws 2. Take off the handlebar holder.
– Move the handlebar holder to the desired position. Mount and tighten the two
screws 2.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the handlebar holders evenly on the left and right.
– Position the handlebar.
Info
Ensure that the cables and lines are routed correctly.
– Position the handlebar clamps. Mount and evenly tighten the four screws 1.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
7.3 Checking the routing of the throttle cable
Preparatory work
– Remove the seat. ( p. 59)
– Take off the side cover. ( p. 60)
