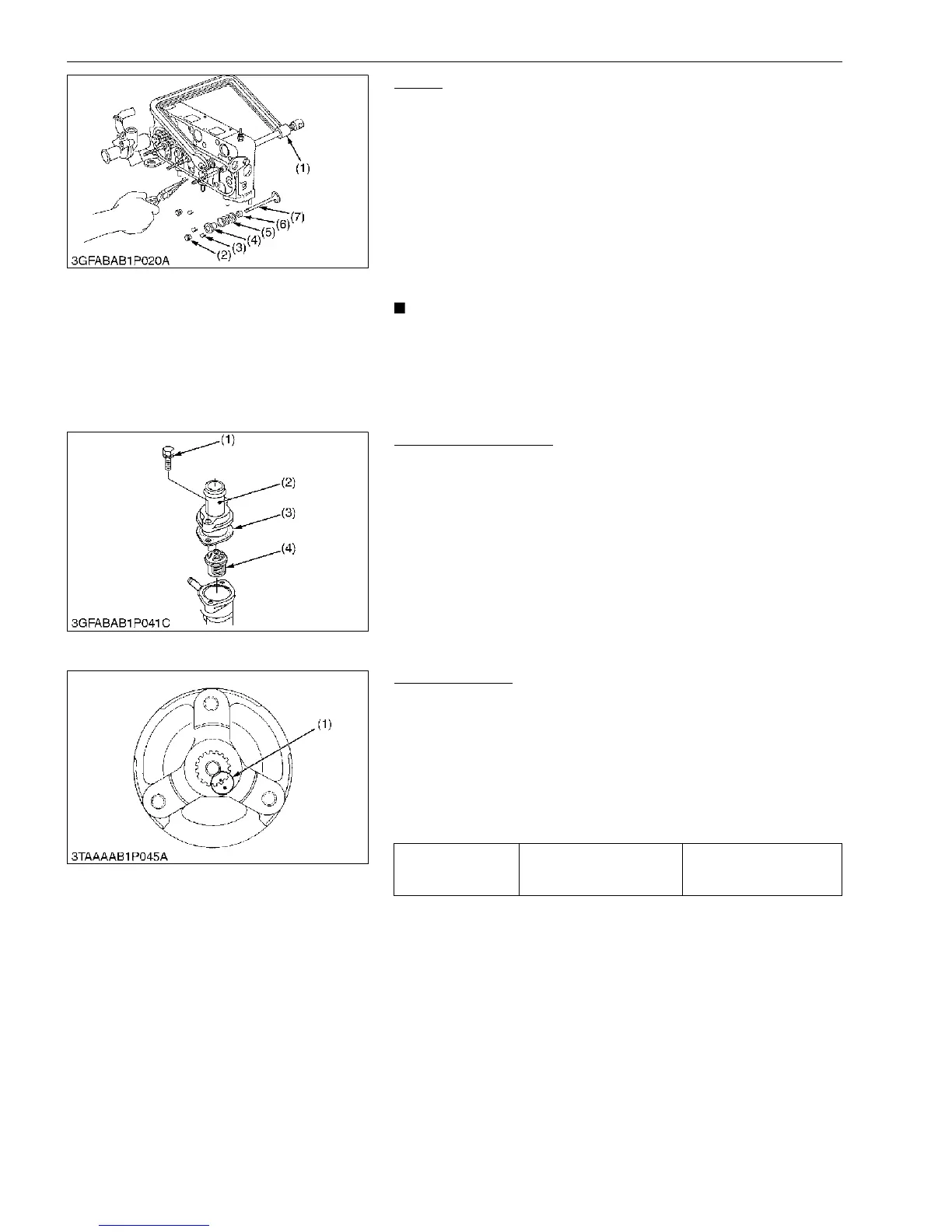

Valves
1. Remove the valve caps (2).
2. Remove the valve spring collet (3), pushing the valve spring
retainer (4) by valve spring replacer (1).
3. Remove the valve spring retainer (4), valve spring (5) and valve
stem seal (6).
4. Remove the valve (7).
(When reassembling)
• Wash the valve stem seal and valve guide hole, and apply
engine oil sufficiently.
• After installing the valve spring collets, lightly tap the stem to
assure proper fit with a plastic hammer.
IMPORTANT
• Do not change the combination of valve and valve guide.
9Y1211156ENS0039US0
Thermostat Assembly
1. Remove the thermostat cover mounting screws (1), and remove
the thermostat cover (2).
2. Remove the thermostat assembly (4).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) only at
the thermostat cover side of the gasket (3).
9Y1211156ENS0040US0
(3) Gear Case
Fan Drive Pulley
1. Secure the flywheel to keep it from turning.
2. Remove the fan drive pulley screw.
3. Draw out the fan drive pulley with a puller.
(When reassembling)
• Install the pulley to the crankshaft, aligning the mark (1) on
them.
• Apply engine oil to the fan drive pulley retaining screws. And
tighten them.
9Y1211156ENS0041US0
(1) Valve Spring Replacer
(2) Valve Cap
(3) Valve Spring Collet
(4) Valve Spring Retainer
(5) Valve Spring
(6) Valve Stem Seal
(7) Valve
(1) Thermostat Cover Mounting Screw
(2) Thermostat Cover
(3) Thermostat Cover Gasket
(4) Thermostat Assembly
Tightening torque Fan drive pulley screw
236 to 245 N·m
24.0 to 25.0 kgf·m
174 to 180 lbf·ft
(1) Alignment Mark
