Kubota B2301 Workshop Manual

STEERING
B2301, B2601, WSM
6-S6

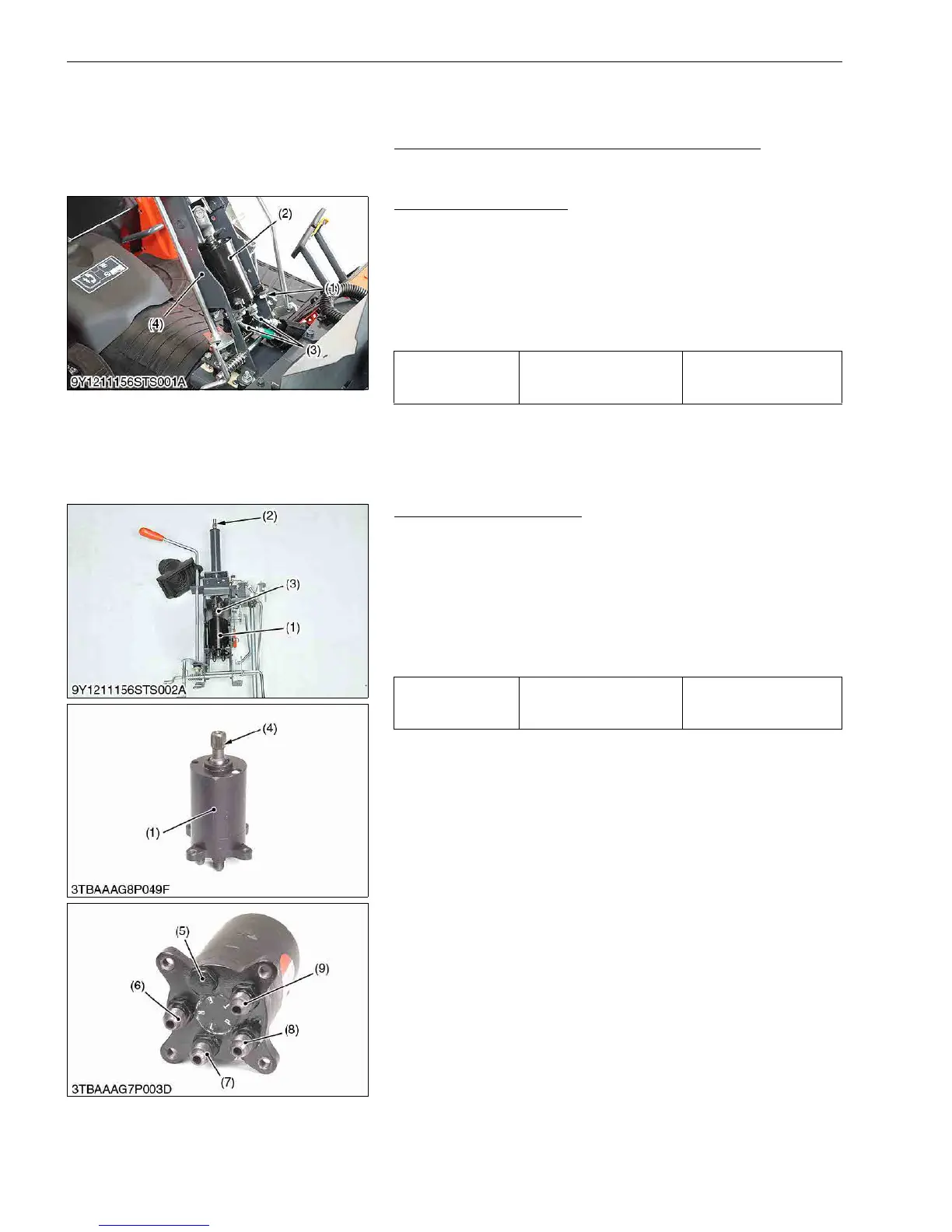

[2] DISASSEMBLING
(1) Separating Power Steering Controller
Steering Wheel, Meter Panel Bonnet and Fuel Tank
• See page 1-S23.
9Y1211156STS0006US0
Steering Post Assembly
1. Remove the steering post mounting bolts.
2. Disconnect the power steering hoses (3) from the power
steering controller (2).
3. Remove the steering post assembly (4) from the main frame.
(When reassembling)
• Connect the power steering hoses (3) to the power steering
controller (2) securely.
9Y1211156STS0007US0
(2) Power Steering Controller
Power Steering Controller
1. Remove the bolt from the universal joint (3).
2. Remove the power steering controller (1) from the steering post.
(When reassembling)
• If oil leaking from the power steering controller (1) is found,
replace the power steering controller (1). O-ring in the power
steering controller (1) is not supplied as a spare part.
• Align the power steering controller shaft (4) to the universal joint
(3) securely.
9Y1211156STS0008US0
Tightening torque
Power steering controller
for pipes and hoses
24 to 28 N·m
2.5 to 2.9 kgf·m
18 to 20 lbf·ft
(1) Bolt
(2) Power Steering Controller
(3) Power Steering Hose
(4) Steering Post Assembly
Tightening torque
Universal joint mounting
bolt
24 to 28 N·m
2.5 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Power Steering Controller
(2) Steering Shaft
(3) Universal Joint
(4) Power Steering Controller Shaft
(5) Relief Valve
(6) Adaptor (to Right Cylinder)
(7) Adaptor (to Left Cylinder)
(8) Adaptor (to Hydraulic Pump)
(9) Adaptor (to Oil Cooler)
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
