HYDRAULIC SYSTEM
B2301, B2601, WSM
7-S12
(4) 3-Points Hitch: Hydraulic Cylinder
Checking the Length of the Adjusting Bolt
NOTE
• Before disassembling the control valve, check the length of
the adjusting bolt.
1. Push the spool (1) into the control valve (2).

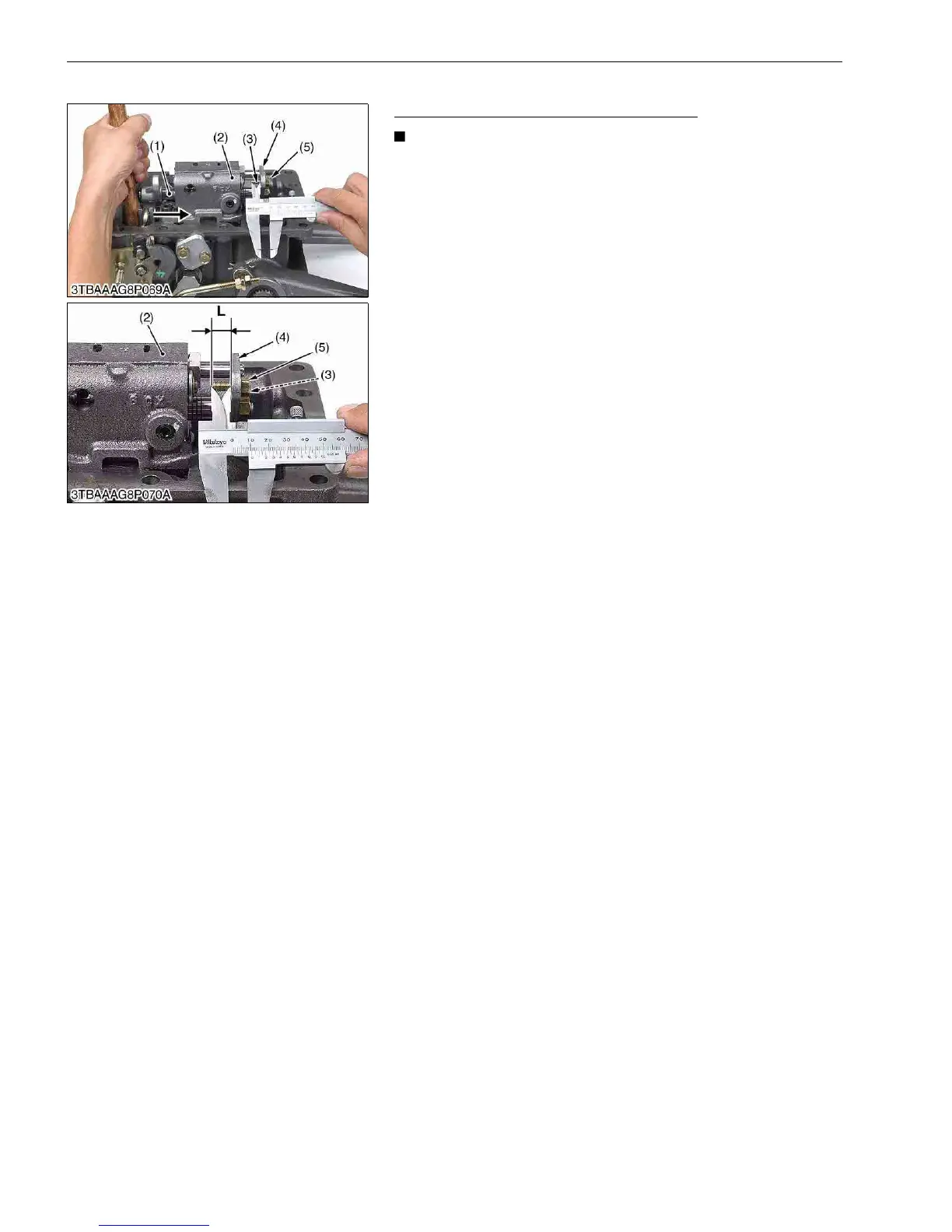

2. Check the length "L" of the adjusting bolt (3) as shown in the
picture.
(Reference)
• Length L
Approx. 10.70 mm (0.421 in.)
9Y1211156HYS0017US0
(1) Spool
(2) Control Valve
(3) Adjusting Bolt
(4) Connecting Plate
(5) Nut
L: Length of the adjusting bolt
