Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-M17
6. FRONT WHEEL DRIVE SECTION
Front wheel drive lever (1) is located at the right side
fender.
Front wheel drive lever (1) and shifter are linked.
20T shifter gear (3) is located on the front wheel
drive shifter (2).
2-wheel drive or 4-wheel drive is selected by
changing the position of 20T shifter gear (3) reverse or
forward.
When the font wheel drive lever (1) is set to "4
Wheel Drive" position, 20T shifter gear (3) slides
forward, meshes the 13T gear (4) on the 6T bevel pinion
shaft (5).
In this state, power from the 6T bevel pinion shaft (5)
is transmitted through 20T shifter gear (3) to the front
wheel drive shaft (2) and the front wheels.
9Y1211156TRM0014US0

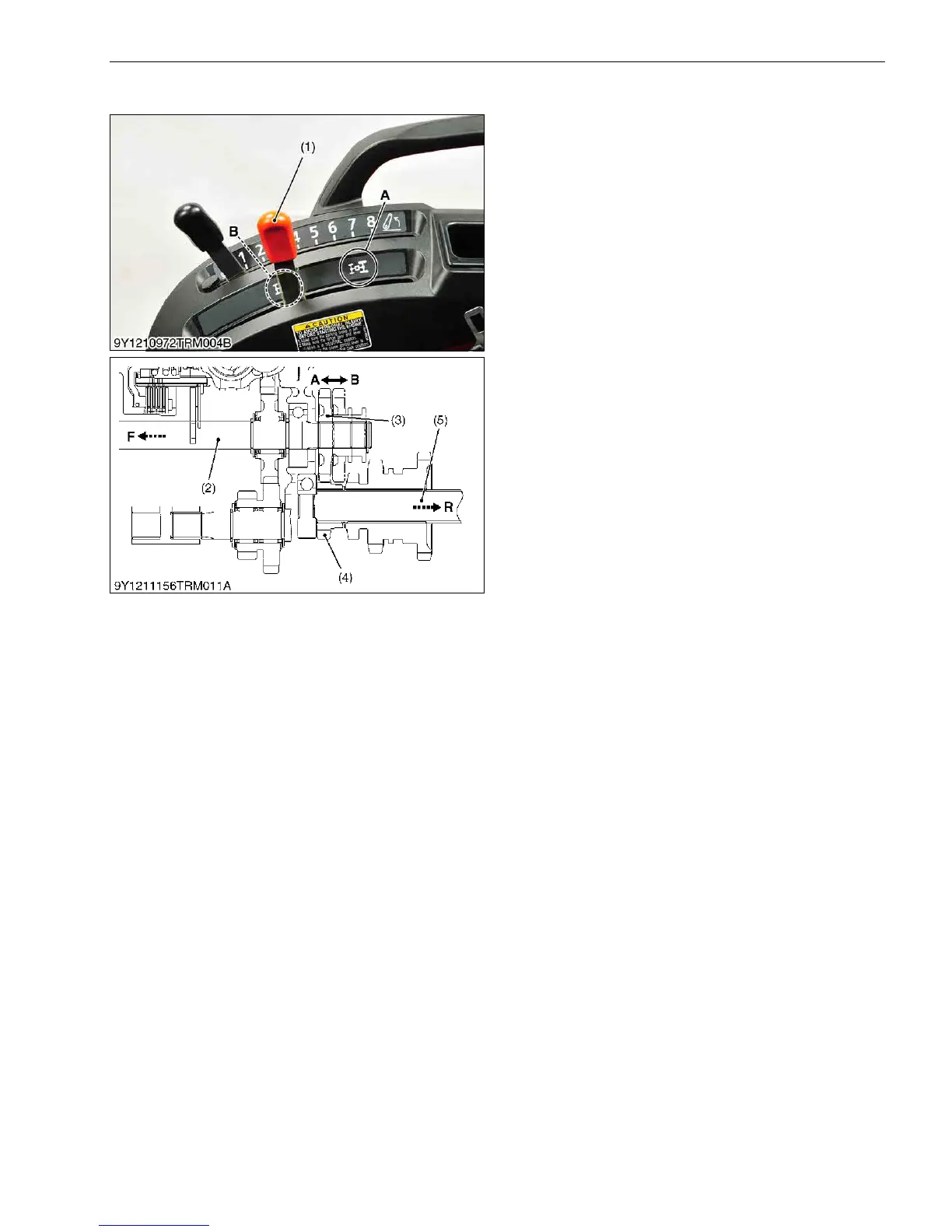

(1) Front Wheel Drive Lever
(2) Front Wheel Drive Shaft
(3) 20T Shifter Gear
(4) 13T Gear
(5) 6T Bevel Pinion Shaft
A: "4 Wheel Drive" Position
B: "2 Wheel Drive" Position
F: Power to Front Wheels
R: Power to Rear Wheels
KiSC issued 11, 2014 A
