TRANSMISSION
B2301, B2601, WSM
2-M2

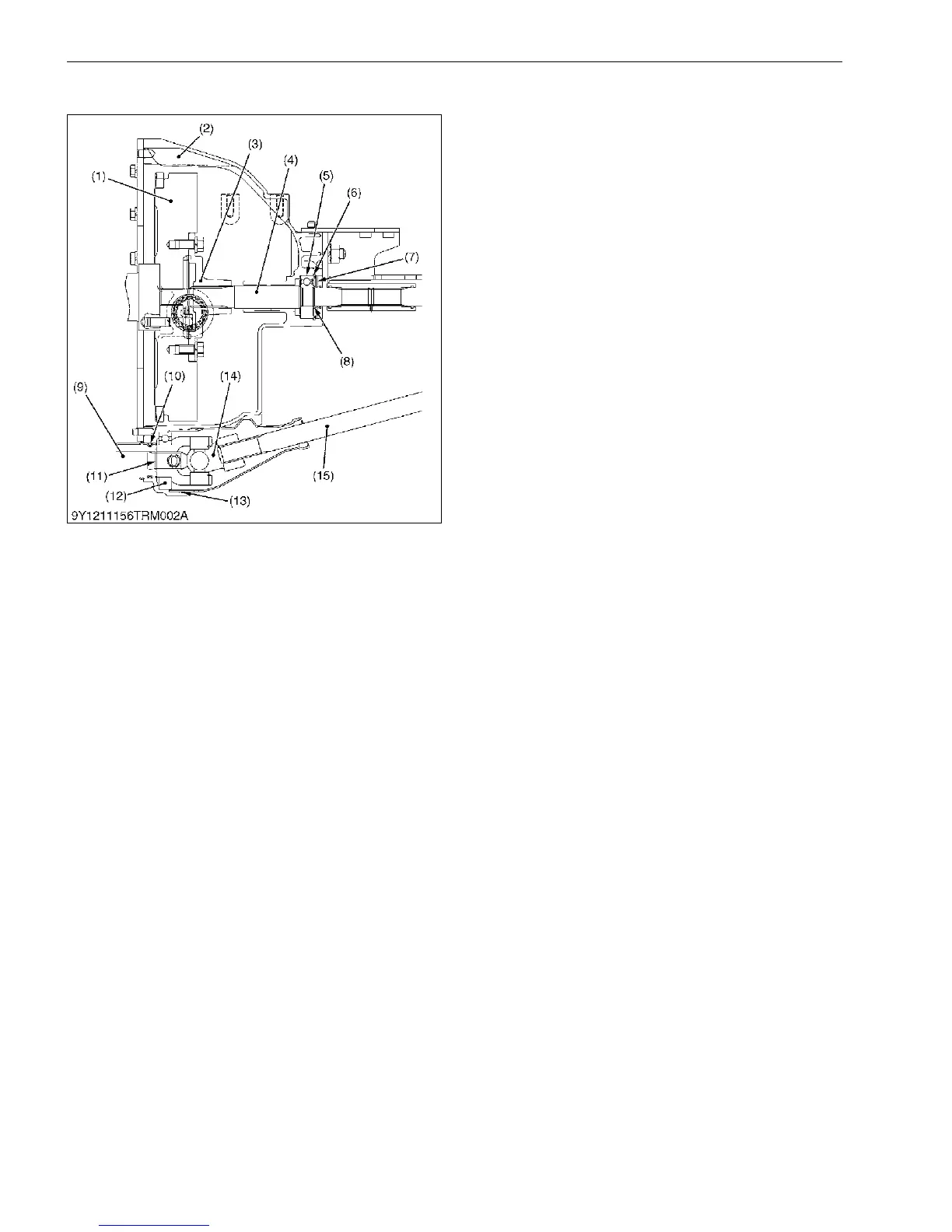

2. FRONT CASE
In this tractor, clutch disc is not installed.
The input flange (3) is installed on the clutch shaft
(4).
Power from the engine is transmitted through the
input flange (3) to the clutch shaft (4) and HST pump
shaft.
9Y1211156TRM0002US0
(1) Flywheel
(2) Clutch Housing
(3) Input Flange
(4) Clutch Shaft
(5) Ball Bearing
(6) Circlip
(7) Oil Seal
(8) Circlip
(9) Front Drive Shaft
(10) O-ring
(11) Circlip
(12) Ball Bearing
(13) O-ring
(14) Universal Joint
(15) Rear Drive Shaft
KiSC issued 11, 2014 A
