Kubota B2301 Workshop Manual

ELECTRICAL SYSTEM
B2301, B2601, WSM
8-S22
(4) Fuel Sensor
Fuel Sensor

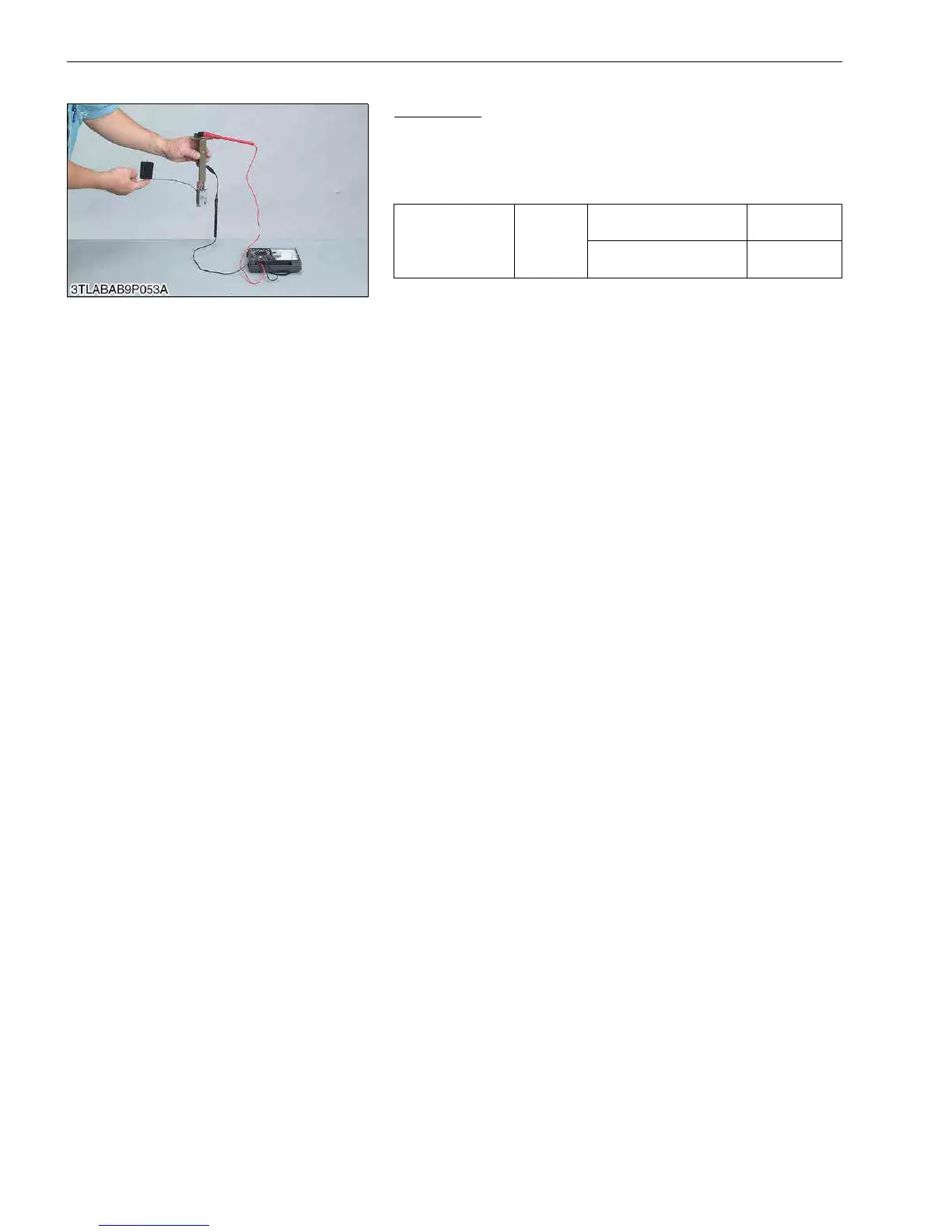

1) Sensor Continuity
1. Remove the fuel lever sensor from the fuel tank.
2. Measure the resistance across the sensor terminal and its body.
3. If the reference value are not indicated, the sensor is damaged.
9Y1211156ELS0040US0
Resistance
(Sensor terminal –
its body)
Reference
value
Float at upper-most
position
1 to 5 Ω
Float at lower-most
position
103 to 117 Ω
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
