ELECTRICAL SYSTEM
B2301, B2601, WSM
8-M7

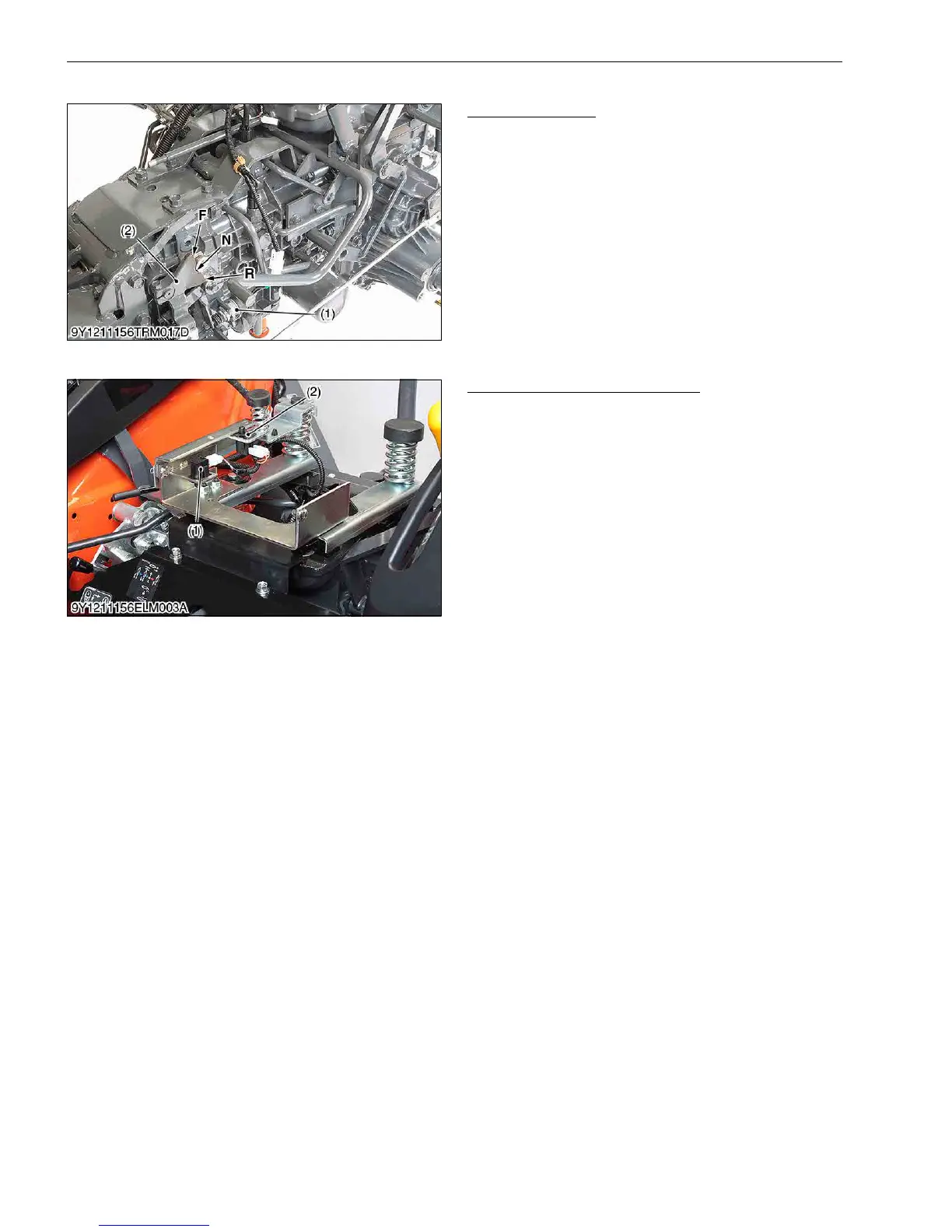

(3) HST Pedal Switch (HST Model)
HST Pedal Switch
This switch located at the neutral switch stay.
This switch is a push type.
This switch detects the position of the HST pedal.
When HST pedal is at "NEUTRAL" position, this
switch is turned to "ON".
When HST pedal is at "FORWARD" or "REVERSE"
position, this switch is turned to "OFF".
9Y1211156ELM0010US0
(4) Seat Switch
Seat Switch and Seat Tilt Switch
These switches are located under the seat. When
sitting on the seat, the seat switch (2) is pushed in and
electrical circuit is closed. When the seat is vacant, this
switch is not pushed and electric circuit is opened. Other
seat tilt switch (1) is to detect tilting the seat. When tilting
the seat forward as shown in the figure, the seat tilt
switch (1) is pushed in and electrical circuit is closed.
9Y1211156ELM0011US0
(1) HST Pedal Switch
(2) Neutral Holder
F: FORWARD
N: NEUTRAL
R: REVERSE
(1) Seat Tilt Switch (2) Seat Switch
KiSC issued 11, 2014 A
