Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-M6

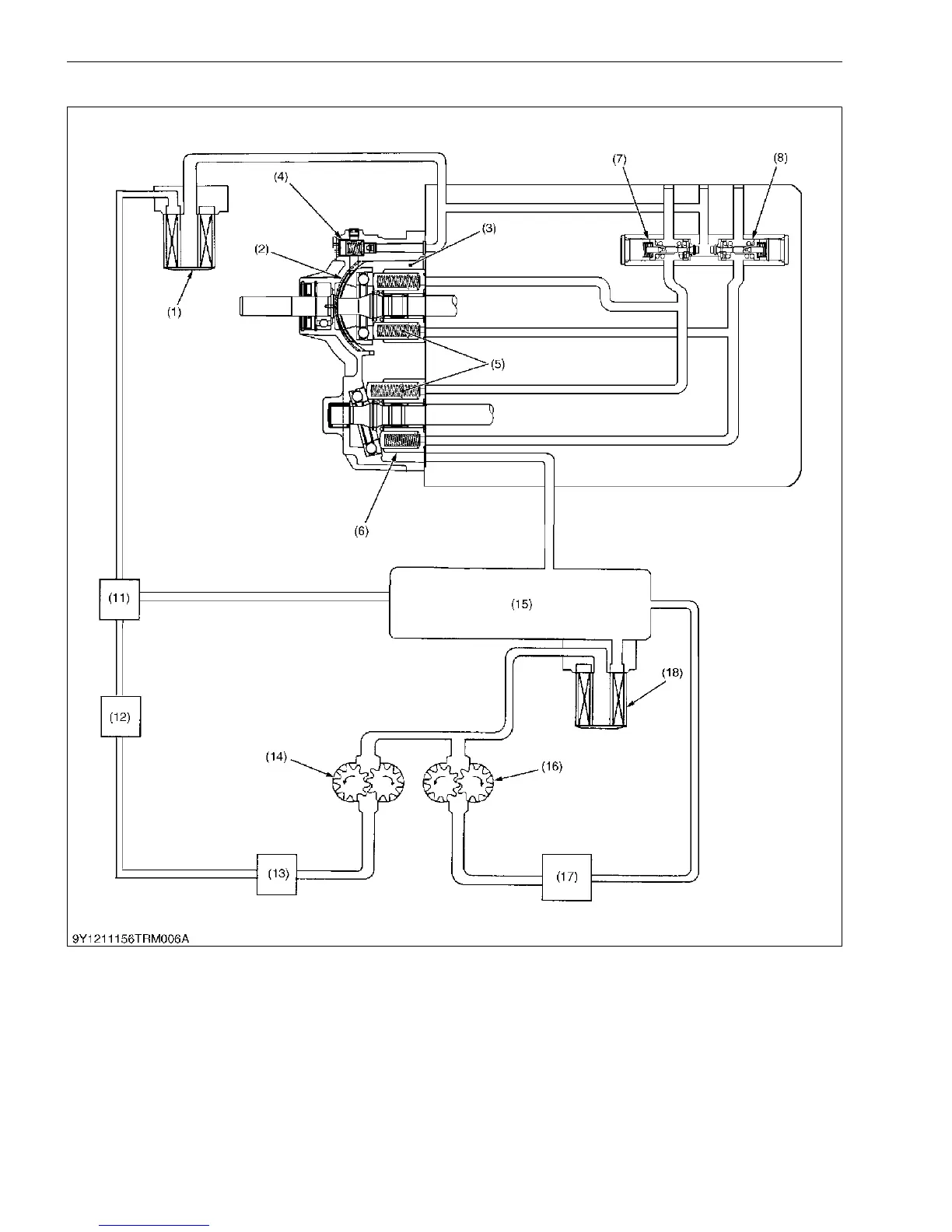

[3] OIL FLOW AND VALVES
(To be continued)
(1) Oil Filter Cartridge (for HST)
(2) Swashplate
(3) Cylinder Block (for Pump)
(4) Charge Relief Valve
(5) Piston
(6) Cylinder Block (for Motor)
(7) Check and High Pressure
Relief Valve (for Forward)
(8) Check and High Pressure
Relief Valve (for Reverse)
(9) Neutral Valve (for Forward)
(10) Neutral Valve (for Reverse)
(11) Independent PTO Control
Valve
(12) Oil Cooler
(13) Power Steering
(14) Hydraulic Pump (for Power
Steering, Independent PTO,
HST)
(15) Oil Tank
(16) Hydraulic Pump
(for 3-points Hitch)
(17) Hydraulic Control Valve
(for 3-points Hitch)
(18) Oil Filter Cartridge
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
