Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-M19

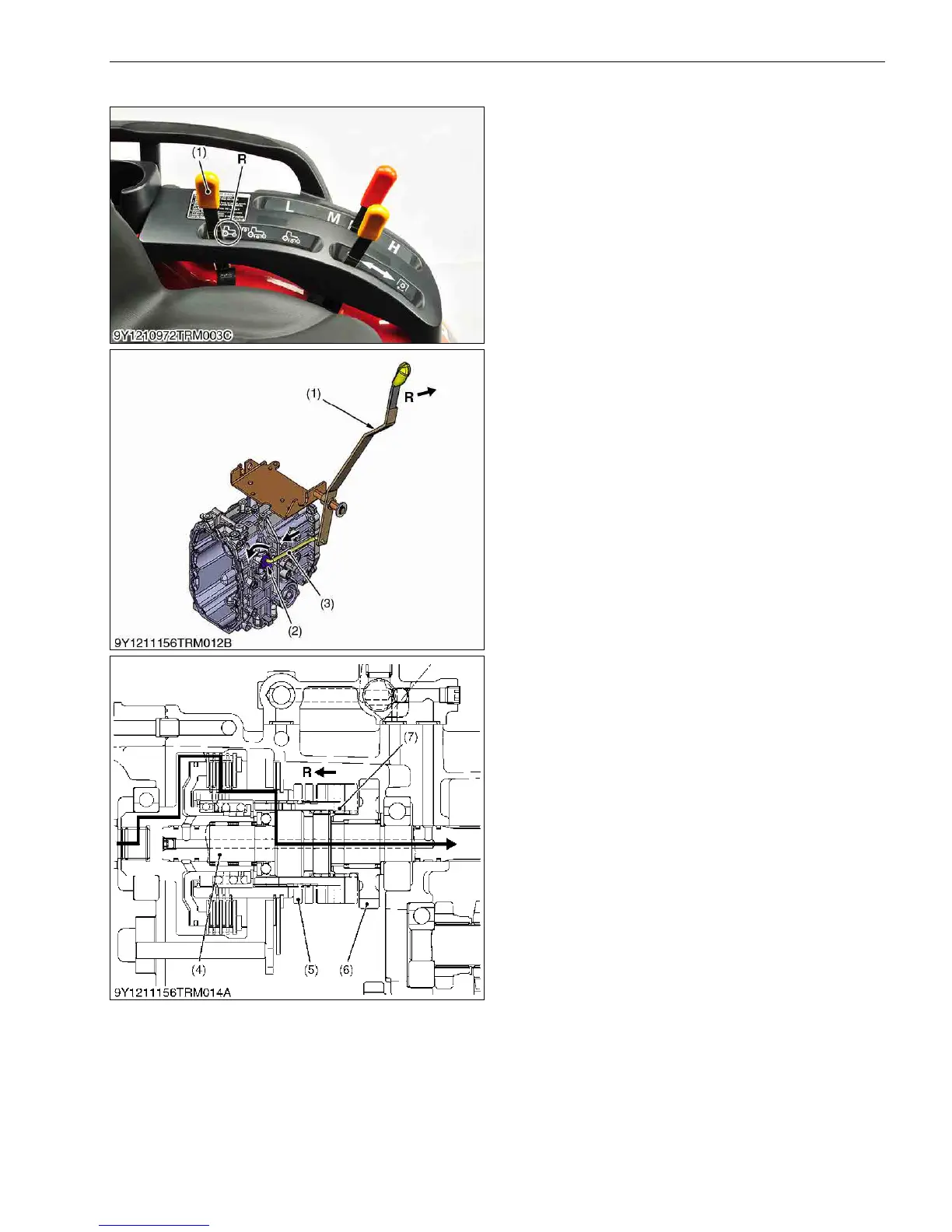

[2] REAR PTO SECTION
When the PTO shift lever (1) is set to "Rear PTO"
(R) position, the PTO shift lever (1) pushes the control
rod (3).
The control rod (3) pushes the PTO shift arm (2). In
this state, the PTO shift arm (2) shifts the PTO shifter (5)
forward. The inner spline of the PTO shifter (5) meshes
the independent PTO shaft spline.
Power is transmitted from the independent PTO
clutch to the rear PTO shaft as follows.
Independent PTO Clutch → PTO Shifter (5) →
Independent PTO Shaft (4) → Rear PTO Shaft
9Y1211156TRM0016US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Control Rod
(4) Independent PTO Shaft
(5) PTO Shifter
(6) 25T Mid Gear
(7) 20T Mid Gear Spline
R: "Rear PTO" Position
R/M: "Rear PTO /
Mid PTO" Position
M: "Mid PTO" Position
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
