Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-M18
7. PTO SYSTEM

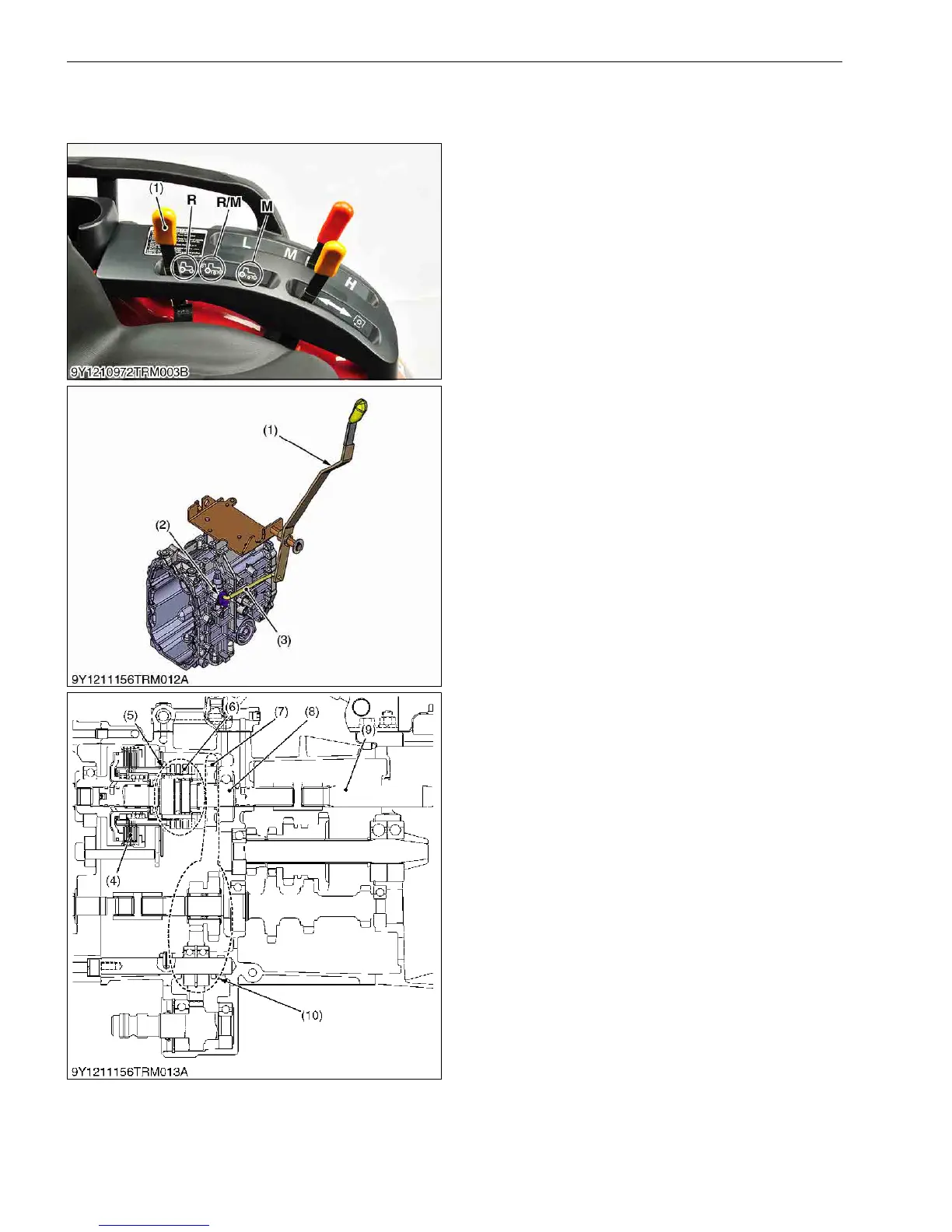

[1] STRUCTURE
The PTO shift lever (1) is located at left side fender.
The PTO shift lever (1) and the PTO shift arm (2) are
linked with the control rod (3).
The PTO shift arm (2) shifts the PTO shifter (6).
PTO gear section consists of three sections.
The first section is independent PTO section.
The second section is PTO position selection section
(5).
The third section is mid-PTO selection section (10).
In this section, when the PTO shift lever is set to
"Mid-PTO" shifter slides to the front side and shifter
meshes to the housing.
The rear PTO shift does not rotate at this "Mid-PTO"
position.
9Y1211156TRM0015US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Control Rod
(4) Independent PTO Clutch
(5) PTO Position Selection
Section
(6) PTO shifter
(7) 25T Mid Gear
(8) PTO Clutch Shaft
(9) 8T Rear PTO Shaft
(10) Mid PTO Selection Section
R: "Rear PTO" Position
R/M: "Rear PTO /
Mid PTO" Position
M: "Mid PTO" Position
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
