TRANSMISSION
B2301, B2601, WSM
2-S20
[3] DISASSEMBLING AND ASSEMBLING
(1) Separating Engine and Clutch Housing
• See page 1-S23.
9Y1211156TRS0019US0

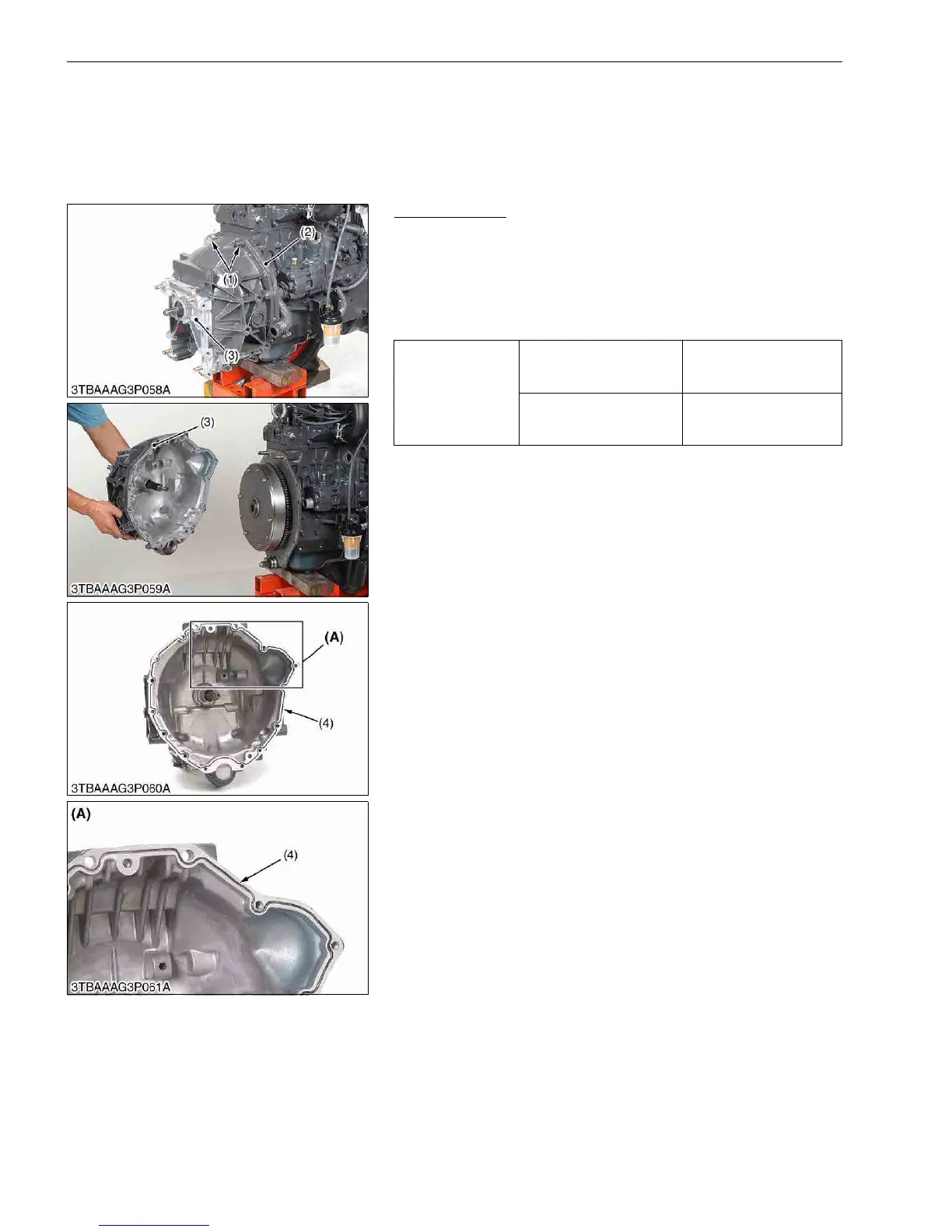

(2) Front Case
Clutch Housing
1. Support the engine securely.
2. Remove the front case mounting bolts (1).
3. Remove the front case (3) from the engine.
(When reassembling)
• Apply liquid gasket (Three Bond 1206D or equivalent) to the
joint face of the engine and the front case.
9Y1211156TRS0020US0
Tightening torque
Front case mounting nut for
aluminum material (M8)
17.7 to 20.5 N·m
1.8 to 2.1 kgf·m
13.1 to 15.1 lbf·ft
Front case mounting bolt
for aluminum material
(M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Bolt
(2) Engine Rear-End Plate
(3) Front Case
(4) Groove (for liquid gasket)
(A) Front Case Corner
KiSC issued 11, 2014 A
