Kubota B2301 Workshop Manual

HYDRAULIC SYSTEM
B2301, B2601, WSM
7-S10

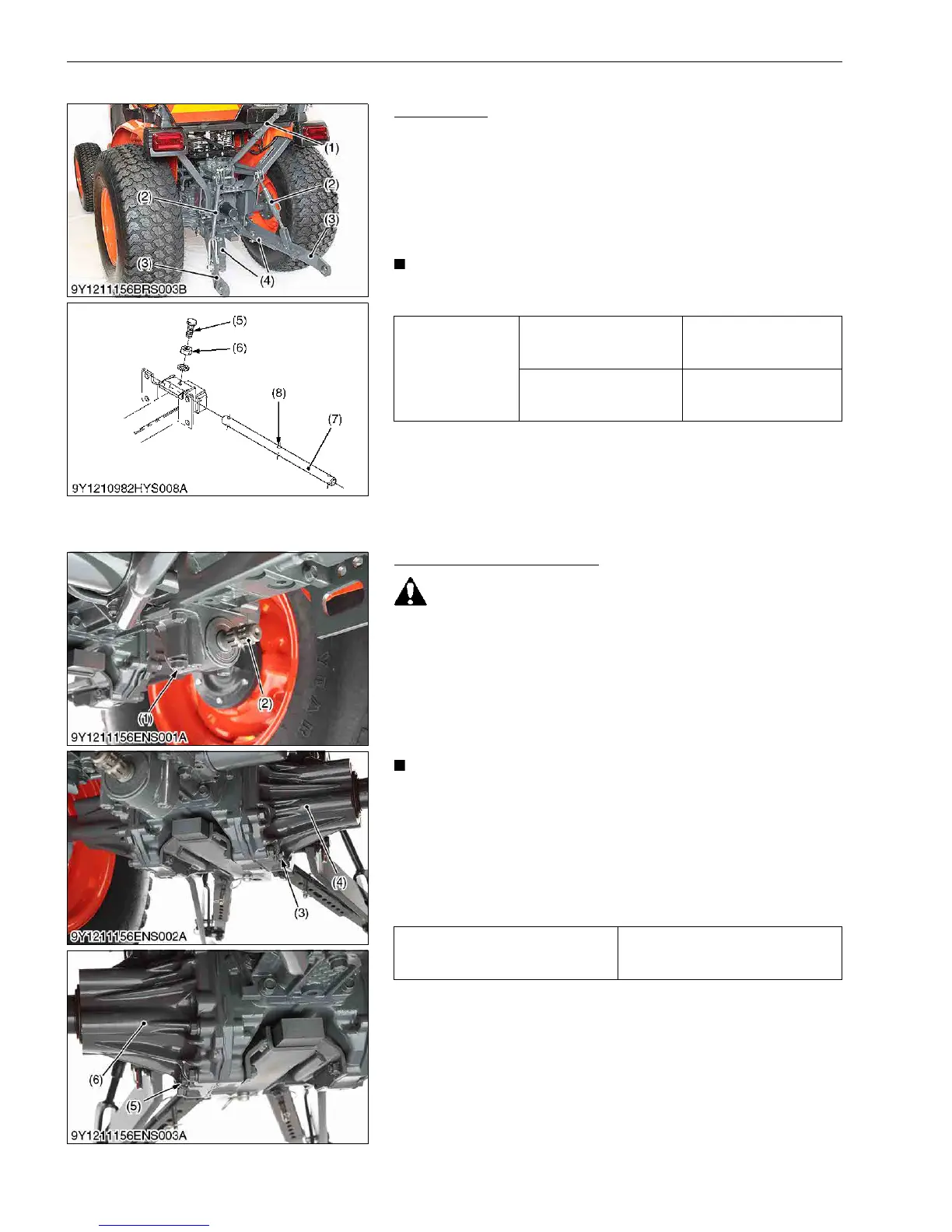

(2) 3-Point Hitch
3-Point Hitch
1. Remove the top link (1).
2. Remove the lift rods (2).
3. Remove the stabilizer (4).
4. Remove the lower links (3).
5. Loosen the lock nut (6) and remove the set screw (5).
6. Remove the lower link pin (7).
(When reassembling)
IMPORTANT
• Be sure to align the set screw (5) and lower link pin hole (8),
when installing the lower link pin (7).
9Y1211156HYS0013US0
(3) Separating Hydraulic Cylinder From Tractor Body
Draining Transmission Fluid
CAUTION
• Stop the engine before checking and changing the
transmission fluid.
1. Place the oil pan under the tractor.
2. Remove the drain plugs (1), (3), (5) at the mid-PTO shaft and at
the bottom of the rear axle cases (4), (6).
3. Drain the transmission fluid.
4. After draining the transmission fluid, reinstall the drain plugs (1),
(3), (5).
IMPORTANT
• Use only KUBOTA UDT oil. Use of other oils may damage
the transmission or hydraulic system.
Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-8.
• Never work the tractor immediately after changing the
transmission oil. Keep the engine at medium speed for a
few minutes to prevents damage to the transmission.
• Do not mix different brands oil together.
9Y1211156ENS0023US0
Tightening torque
Set bolt of the lower link pin
15 to 20 N·m
1.6 to 2.0 kgf·m
11 to 14 lbf·ft
Lock nut of the lower link
pin
43 to 47 N·m
4.4 to 4.7 kgf·m
32 to 34 lbf·ft
(1) Top Link
(2) Lift Rod
(3) Lower link
(4) Stabilizer
(5) Set Screw
(6) Lock Nut
(7) Lower Link Pin
(8) Lower Link Pin Hole
Transmission fluid capacity
15 L
4.0 U.S.gals
3.3 Imp.gals
(1) Drain Plug
(2) Mid-PTO Shaft
(3) Drain Plug
(4) Rear Axle Case (L.H.)
(5) Drain Plug
(6) Rear Axle Case (R.H.)
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
