GENERAL
B2301, B2601, WSM
G-28

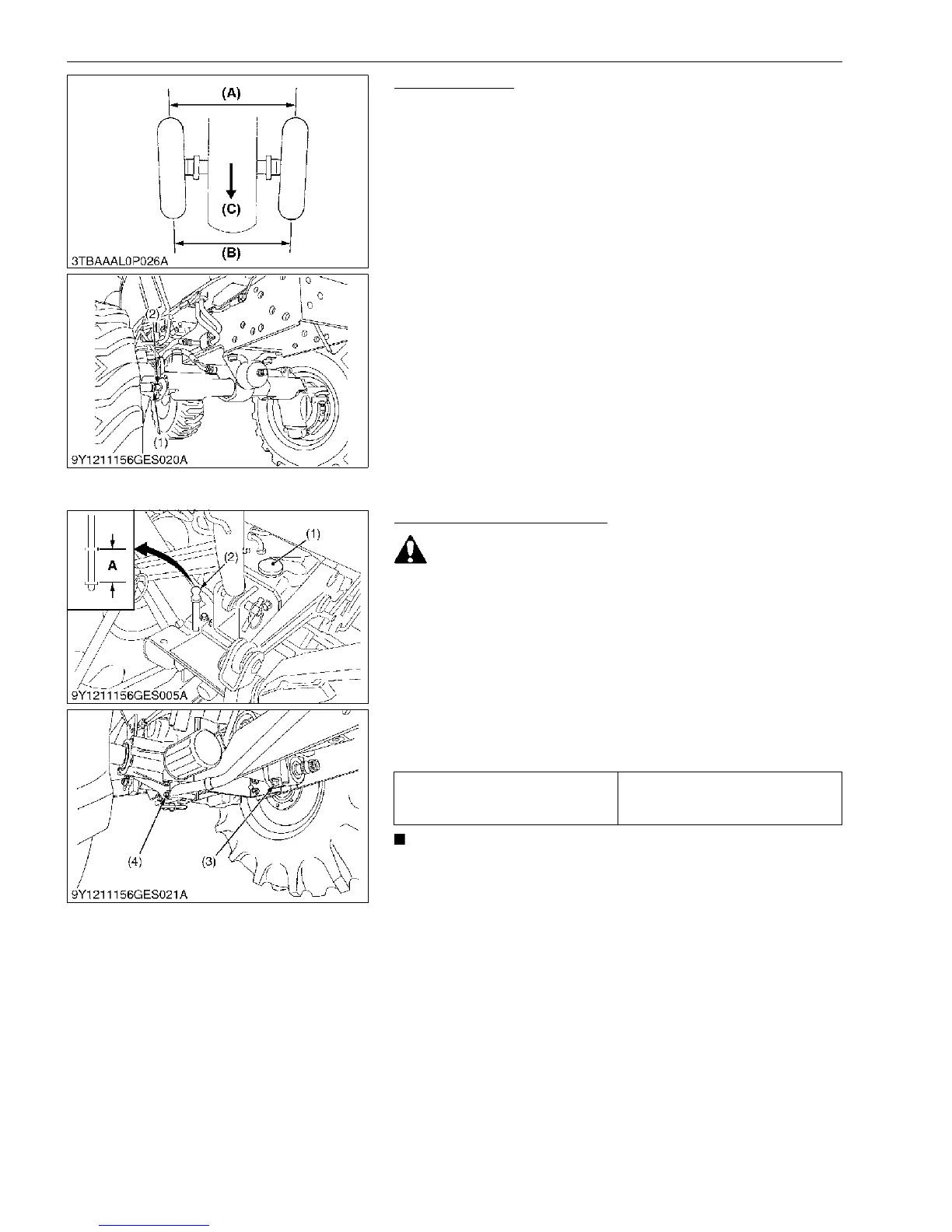

Adjusting Toe-in
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the straight ahead
position.
3. Lower the implement, lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, hub height.
5. Measure distance between tire beads at rear of tire, hub height.
6. Front distance should be 0 to 10 mm (0 to 0.39in.) less than rear
distance. If not, adjust tie-rod length.
Adjusting procedures
1. Loosen the tie-rod nut.
2. Turn the tie-rod to adjust the rod length until the proper toe-in
measurement is obtained.
3. Retighten the tie-rod nut.
9Y1211156GEG0035US0
[5] CHECK POINTS OF EVERY 400 HOURS
Changing Transmission Fluid
To avoid personal injury or death:
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. To drain the used oil, remove the drain plug at the bottom of the
transmission case and drain the oil completely into the oil pan.
2. After draining reinstall the drain plug.
3. Fill with new KUBOTA SUPER UDT fluid up to the upper notch
on the dipstick.
4. After running the engine for a few minutes, stop it and check the
oil level again; add oil to prescribed level.
5. Properly dispose of used oil.
• If the 3-point hitch can not be raised by setting the
hydraulic control lever to the UP position after long term
storage or when changing the transmission oil, turn
steering wheel to the right and left several times to bleed air
from the system.
• Do not operate the tractor immediately after changing the
transmission fluid.
9Y1211156GEG0037US0
(1) Tie-rod Nut
(2) Tie-rod
(A) Wheel-to-wheel distance at rear
(B) Wheel-to-wheel distance at front
(C) "FRONT"
Oil capacity
15 L
4.0 U.S.gals
3.3 Imp.gals
(1) Oil Inlet
(2) Dipstick
(3) Drain Plug
(4) Drain Plug (Both Sides)
A: Oil level is acceptable within this
range
