Kubota B2301 Workshop Manual

STEERING
B2301, B2601, WSM
6-M3

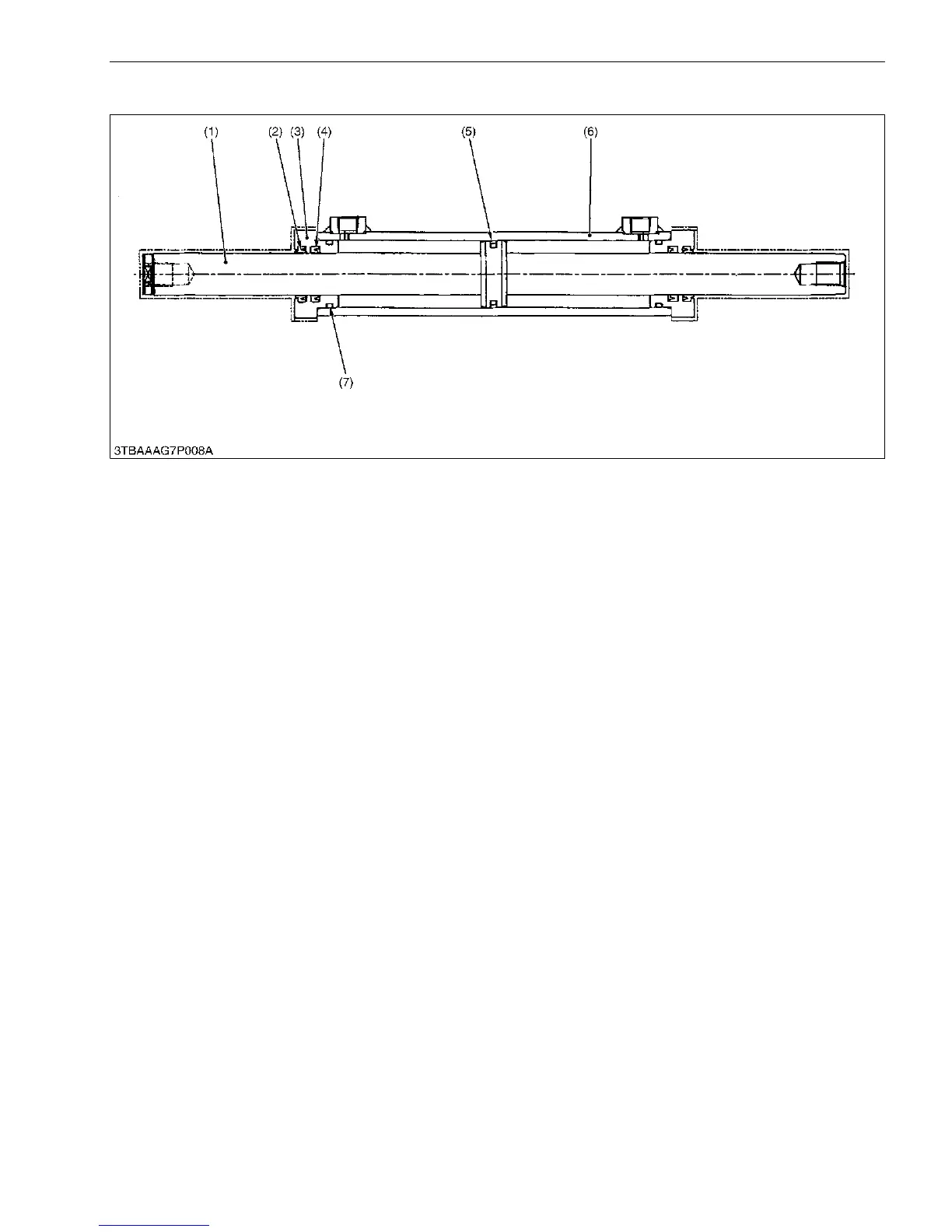

3. STEERING CYLINDER
The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the
front axle and connected to tie-rods.
The tie-rods connected to both knuckle arm guarantees equal steering movement to both front wheels.
The steering cylinder provide force in both directions. Depending upon direction the steering wheel is turned
pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of
the tractor.
9Y1211156STM0003US0
(1) Rod
(2) Dust Seal
(3) Rod Cover
(4) U gasket
(5) Piston Seal
(6) Cylinder Tube
(7) O-ring
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
