TRANSMISSION
B2301, B2601, WSM
2-M16
5. RANGE GEAR SHIFT SECTION
Range gear shift lever (1) is located at left side
fender.
Range gear shift lever (1) can select three speed
range, low speed, mid speed and high speed.
Range gear shift lever (1) and 14T-21T-29T gear (6)
are linked with range shift arm (3) and range shift fork (2)
etc..
Three range gear shifts are selected by shifting the
14T-21T-29T gear (6) on 6T bevel pinion shaft to
23T-16T-14T sub shaft (7).
Low Speed Position
14T of 23T-16T-14T Sub Shaft (7) → 29T of
14T-21T-29T Gear (6) → 6T Bevel Pinion Shaft (4)
Middle Speed Position
16T of 23T-16T-14T Sub Shaft (7) → 21T of
14T-21T-29T Gear (6) → 6T Bevel Pinion Shaft (4)
High Speed Position
23T of 23T-16T-14T Sub Shaft (7) → 14T of
14T-21T-29T Gear (6) → 6T Bevel Pinion Shaft (4)
9Y1211156TRM0013US0

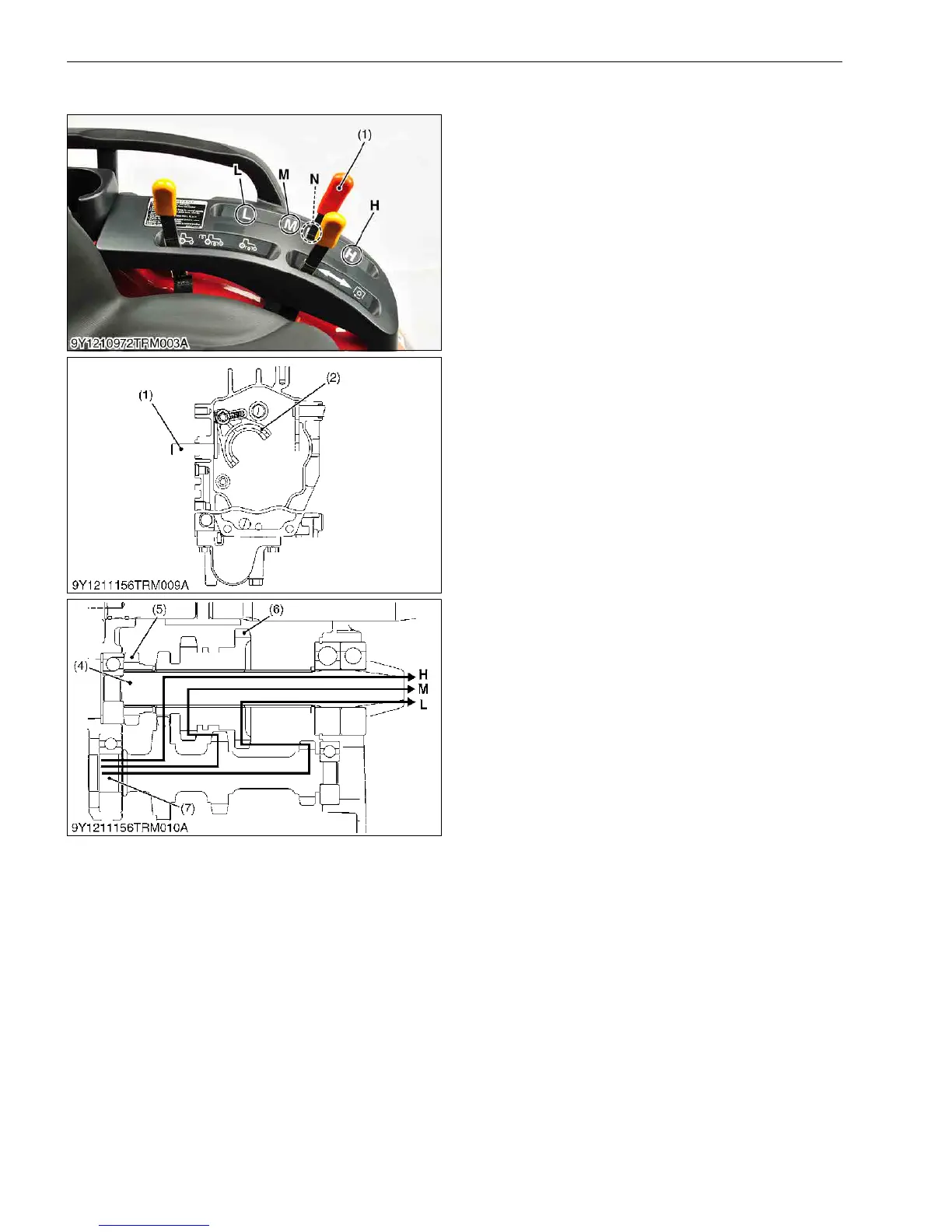

(1) Range Gear Shift Lever
(2) Range Shift Fork
(3) Range Shift Arm
(4) 6T Bevel Pinion Shaft
(5) 13T Gear (for Front Wheel
Drive)
(6) 14T-21T-29T Gear
(7) 23T-16T-14T Sub Shaft
L: "LOW" Range
M: "MID" Range
N: "NEUTRAL" Position
H: "HIGH" Range
