TRANSMISSION
B2301, B2601, WSM
2-S13

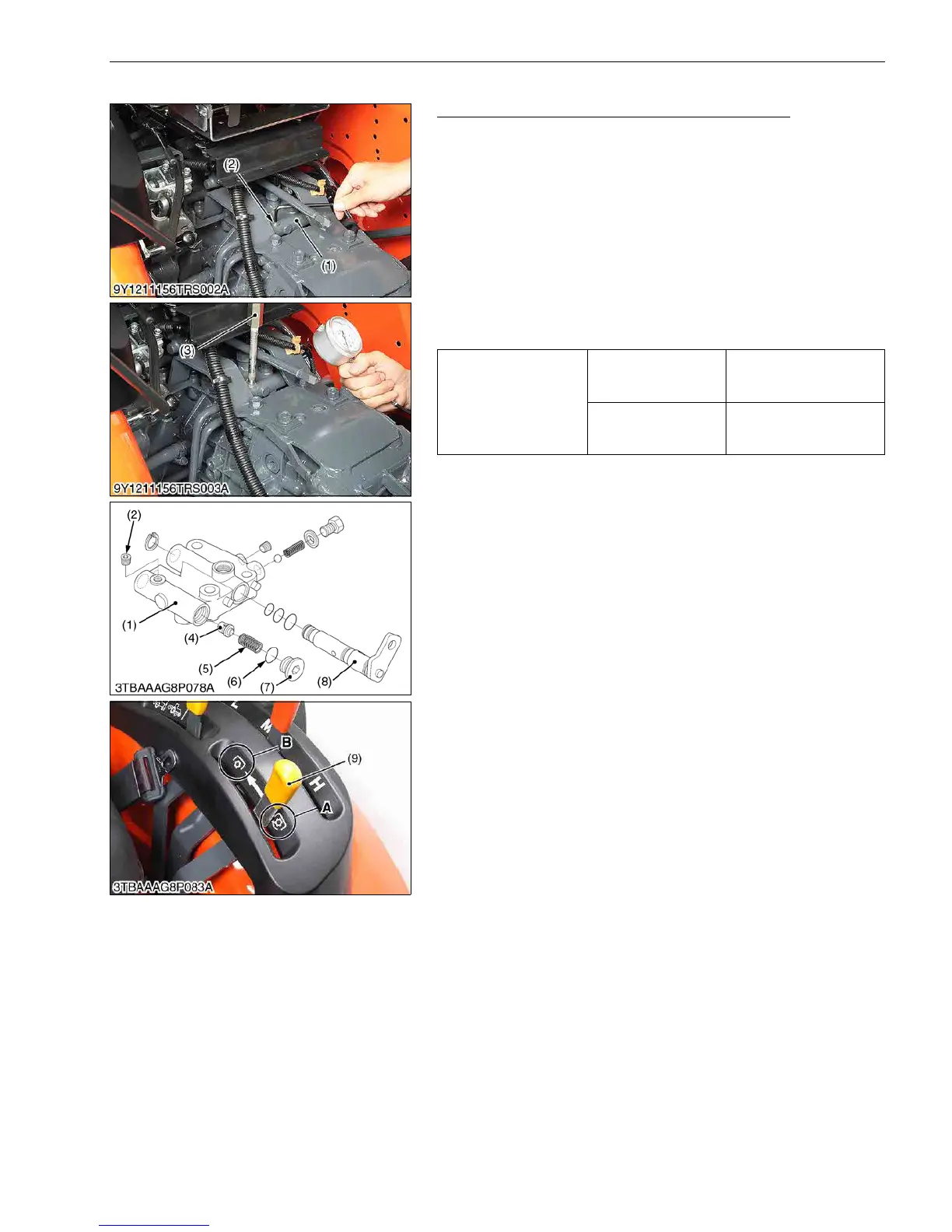

(2) Independent PTO Control Valve
Independent PTO Control Valve Setting Pressure
1. Remove the plug (2) with a hexagon wrench.
2. Install the adapter (3) to the independent PTO control valve (1).
3. Connect the cable and the pressure gauge to the adapter (3).
4. Start the engine and set at the maximum speed. (Pressure at
"ENGAGED" position)
5. Move the independent PTO lever (9) to "ENGAGED" position
A.
6. Measure the pressure. (Pressure at "DISENGAGED" position)
7. Move the independent PTO lever (9) to position B.
8. Measure the pressure.
9. If the pressure is not the factory specifications, adjust setting
pressure with (the adjusting) shims.
Condition
• Engine speed: 2900 min
-1
(rpm)
• Oil temperature: 50 °C (122 °F)
9Y1211156TRS0009US0
Independent PTO valve
setting pressure
Independent PTO
lever "ENGAGED"
position
1.1 to 1.5 MPa
11.2 to 15.3 kgf/cm
2
160 to 218 psi
Independent PTO
lever "DISENGAGED"
position
0 MPa
0 kgf/cm
2
0 psi
(1) Independent PTO Control Valve
(2) Plug
(3) Adapter
(4) Poppet
(5) Spring
(6) O-ring
(7) Plug
(8) PTO Arm
(9) Independent PTO Lever
A: ENGAGED Position
B: DISENGAGED Position
