TRANSMISSION
B2301, B2601, WSM
2-S30
(9) Independent PTO Clutch
PTO Clutch Case

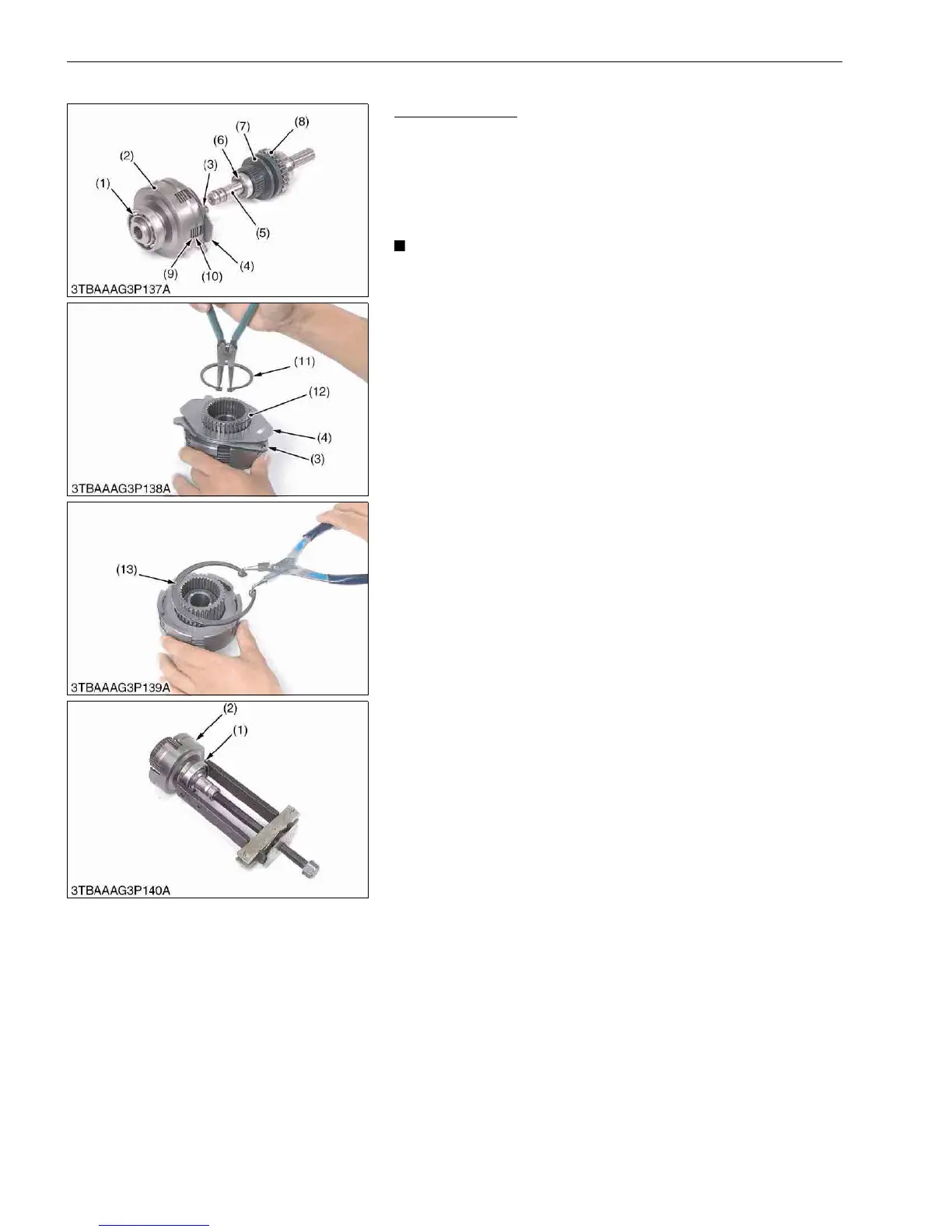

1. Remove the external circlip (11) from the spline boss (12).
2. Remove the internal circlip (13) from the PTO clutch case (2).
3. Remove the clutch discs (9) and the clutch plates (10) from the
PTO clutch case (2).
4. Remove the ball bearing (1) from the PTO clutch case (2) with
a puller.
NOTE
• When removing the circlip, use an adequate size circlip
pliers.
9Y1211156TRS0038US0
(1) Ball Bearing
(2) PTO Clutch Case
(3) Brake Plate 4
(4) Brake Plate 2
(5) PTO Clutch Shaft
(6) Thrust Bearing
(7) PTO Shifter
(8) 25T Mid PTO-gear
(9) Clutch Disc
(10) Clutch Plate
(11) External Circlip
(12) Spline Boss
(13) Internal Circlip
