Kubota B2301 Workshop Manual

HYDRAULIC SYSTEM
B2301, B2601, WSM
7-S9

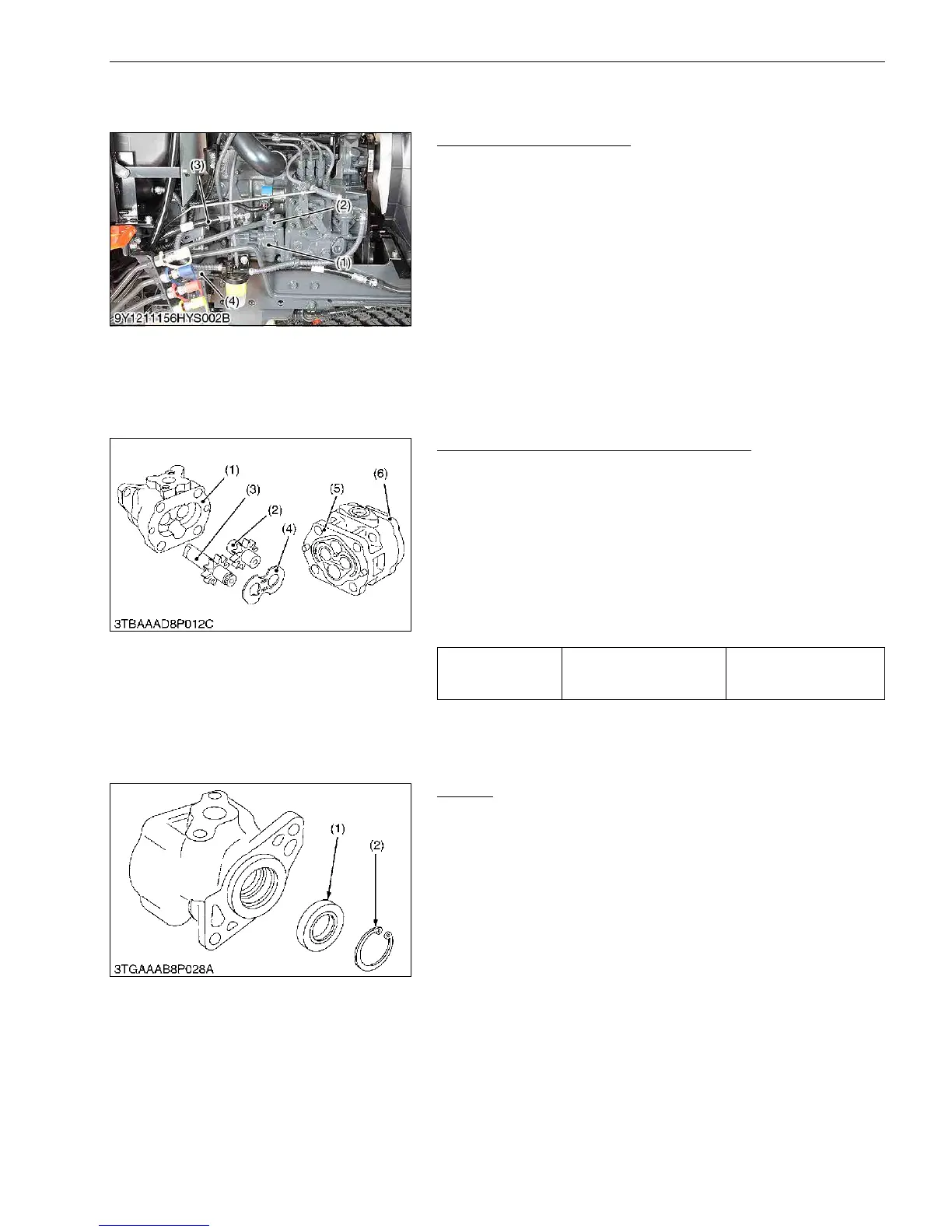

[2] DISASSEMBLING AND ASSEMBLING
(1) Hydraulic Pump
Removing Hydraulic Pump
1. Open the bonnet then remove the side cover (R.H.) and
disconnect the battery grounding cord.
2. Disconnect the connector of the engine stop solenoid and
accelerator rod.
3. Disconnect the power steering delivery hose (3).
4. Remove the engine stop solenoid.
5. Disconnect the suction hose (4).
6. Disconnect 3-points hitch delivery pipe (2) and the hydraulic
pump (1).
(When reassembling)
• Apply liquid gasket (Three Bond 1206D or equivalent) to engine
stop solenoid.
9Y1211156HYS0010US0
Hydraulic Pump Cover, Side Plate and Gear
1. Secure the hydraulic pump with a vise, and remove the
hydraulic pump cover (6) with casing (5).
2. Remove the side plate (4).
3. Remove the drive gear (3) and driven gear (2) from the casing
(1).
(When reassembling)
• Be careful not to damage the O-ring.
• Align the holes of the cover and casing (1).
• Install the side plate (4), noting its location and direction.
• Install the gears (2), (3), noting its direction.
9Y1211156HYS0011US0
Oil Seal
1. Remove the internal snap ring (2), and remove the oil seal (1).
(When reassembling)
• If the oil seal is damaged, worn or scratched, replace it.
9Y1211156HYS0012US0
(1) Hydraulic Pump
(2) 3-Point Hitch Delivery Pipe
(3) Power Steering Delivery Hose
(4) Suction Hose
Tightening torque
Hydraulic pump cover
mounting screw
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 28 lbf·ft
(1) Casing
(2) Driven Gear
(3) Drive Gear
(4) Side Plate
(5) Casing
(6) Hydraulic Pump Cover
(1) Oil Seal (2) Internal Snap Ring
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
