Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-M21

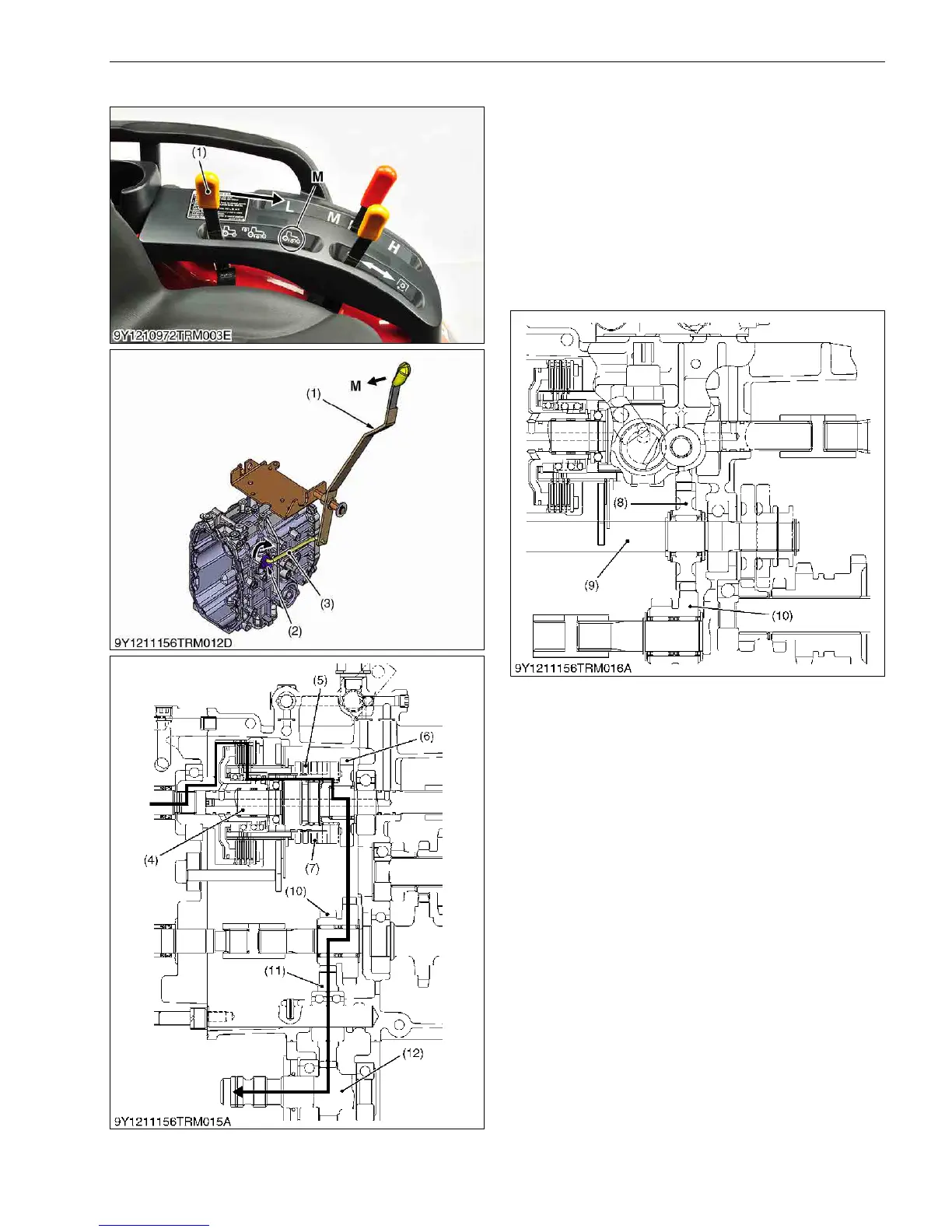

[4] MID-PTO SECTION
When the PTO shift lever (1) is set to "Mid PTO" (M)
position, the PTO shift lever pulls the control rod (3). The
control rod (3) pulls the PTO shift arm (2).
In this state, the PTO shift arm (2) shifts the PTO
shifter (5) reverse. The inner spline of the PTO shifter (5)
meshes the 20T Mid PTO gear spline (7).
Power is transmitted from the independent PTO
clutch to the Mid PTO shaft as follows.
Independent PTO Clutch → PTO Shifter (5) → 25T
Mid Gear (6) → 26T Gear (8) → 17T-26T Mid Gear (10)
→ 30T Gear (11) → Mid PTO Shaft (12)
9Y1211156TRM0018US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Control Rod
(4) Independent PTO Shaft
(5) PTO shifter
(6) 25T Mid Gear
(7) 20T Mid Gear Spline
(8) 26T Gear
(9) Front Wheel Drive Shaft
(10) 17T-26T Mid Gear
(11) 30T Gear
(12) 17T Mid PTO Shaft
R: "Rear PTO" Position
R/M: "Rear PTO /
Mid PTO" Position
M: Mid PTO Position
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
