5.6.4 Local Alarm Information
Description
When a PBX error occurs and the PBX detects it, the System Alarm button light on the PT of an extension,
which is allowed to use this feature through system programming
(a maximum of two extensions per PBX),
turns on red. Pressing the button will show the error number on the display. If multiple errors occur, the error
number will be displayed in order of highest priority to lowest. The System Alarm button light turns off
automatically after all error numbers have been displayed.
For details about the errors and their solutions, refer to the Installation Manual.

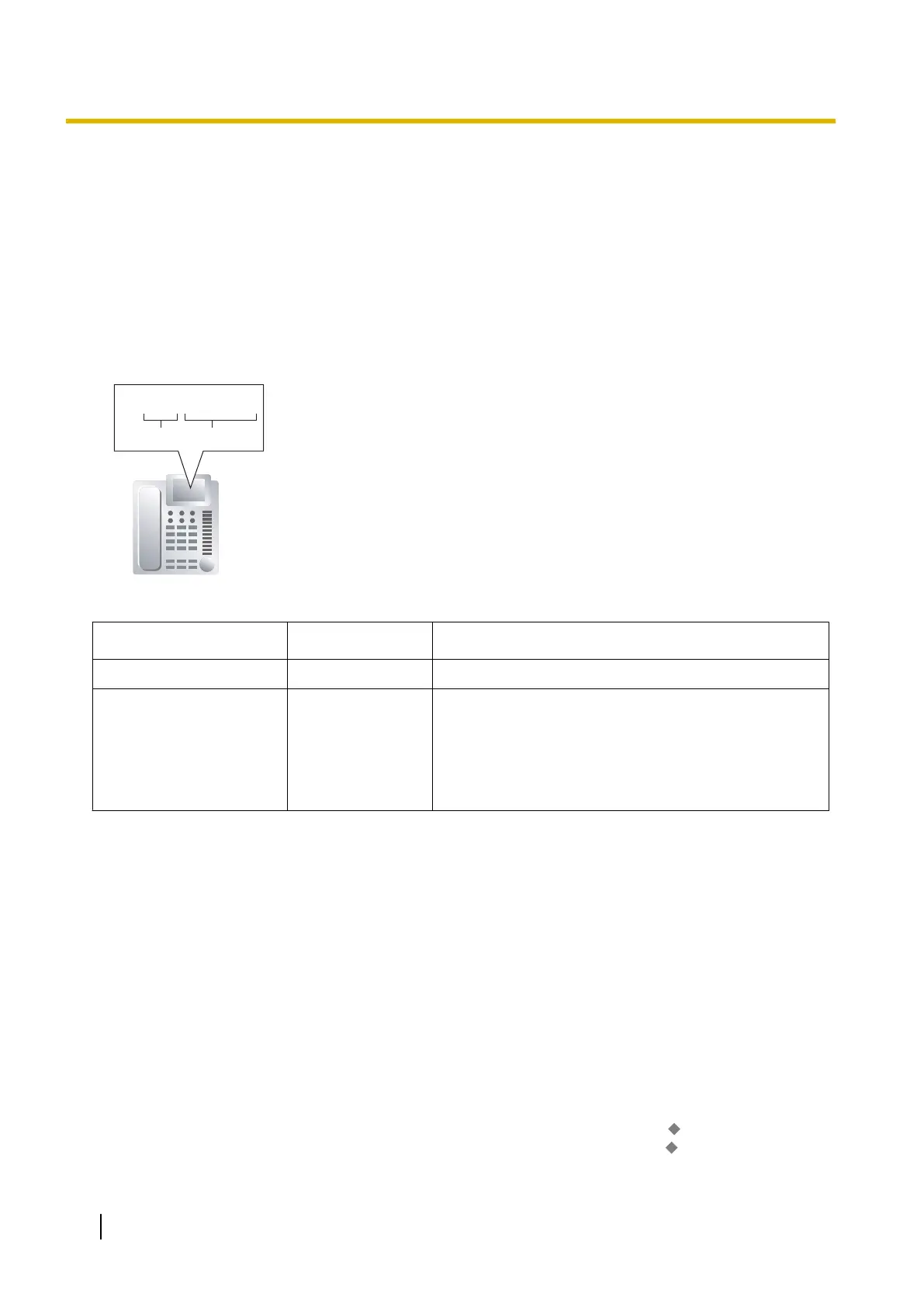

[Error Example]
ERR #100 (00 10000)
(1)
(2)
[Explanation]
Number in the Example Item Description
(1) Error Code Shows three-digit error code.
(2) Sub Code Shows 8-digit sub code (BBWXYYZZ).
BB: 00
W: Slot type (Physical shelf: blank, Virtual shelf: *)
X: Unit number/Non-PBX process code
YY: Slot number/Process code
ZZ: Port number/Process number
Conditions
• System Alarm Button
A flexible button can be customised as the System Alarm button.
• The alarm information will be recorded on SMDR, if enabled through system programming.
• The PBX can be automatically diagnosed at a preprogrammed time every day.
Installation Manual References
7.1.6 Troubleshooting by Error Log
PC Programming Manual References
7.3.1 Utility—Log—Error Log
12.1.4 PBX Configuration—[4-1-4] Extension
—Wired Extension—Flexible Button—
Type
12.2.3 PBX Configuration—[4-2-3] Extension
—Portable Station—Flexible Button—
Type
19.1 PBX Configuration
—[11-1] Maintenance—Main
