Clarus 600/680 GC User’s Guide
2-11
Stop Menu
Stop Immediately – Touching this button immediately stops the Active Method
and closes the Stop Menu dialog..
Go to a temp, program step – Displays the Go to Temp dialog for you to select
the step you wish to go to at this time. Then press OK to activate the selected step.
Cancel – Cancels this Stop Menu dialog and returns you to the Active Method.
Signal Button
The Signal icon displays the graphic signal for the active method. If the system is
not running, a baseline appears on the graph.

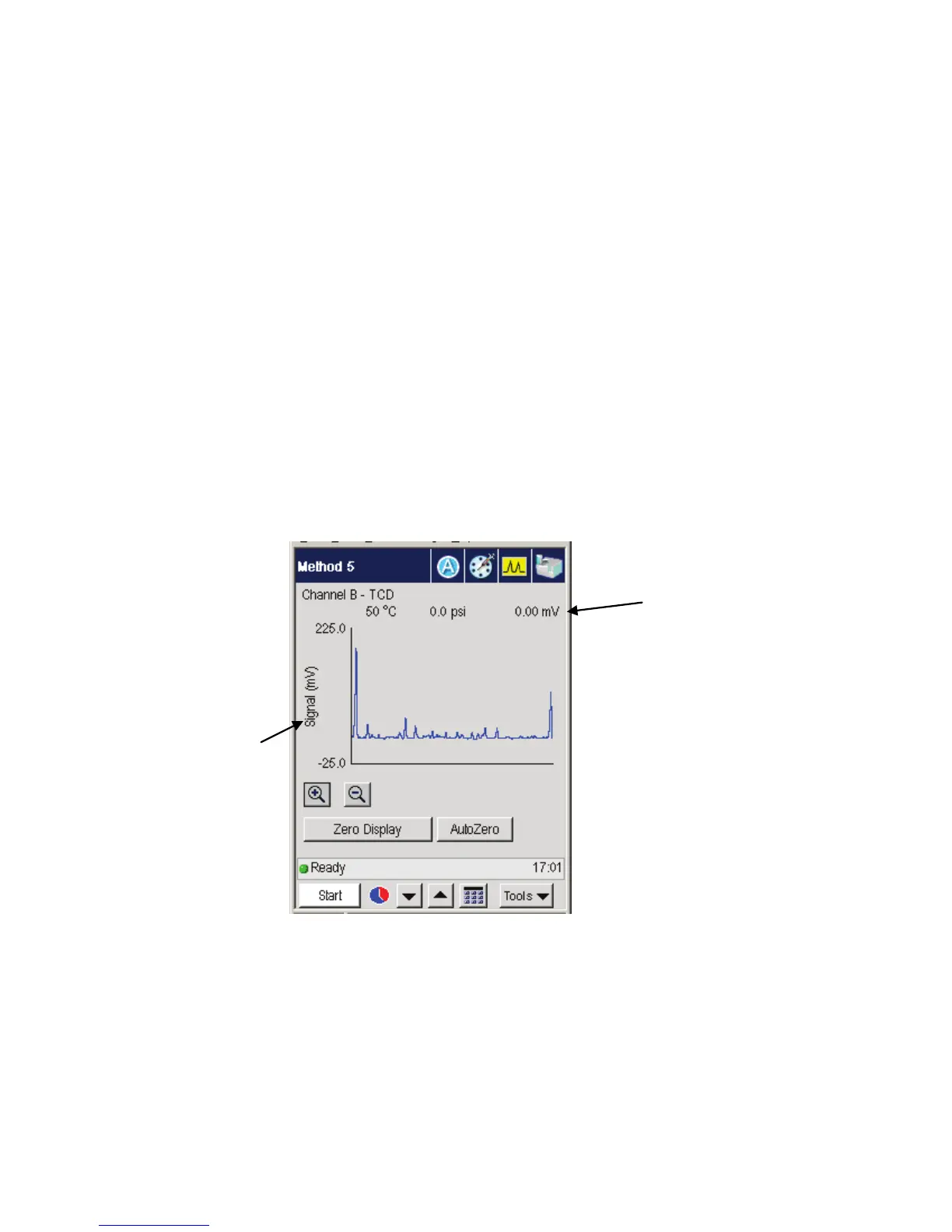

The Signal screen displays the selected detector signal over a fixed time period
(2 minutes) with you selecting the scaling factor using the up and down arrow
buttons. The raw signal is unprocessed and can appear slightly larger than the
processed signal. The processed signal has gone through attenuation and offset
filters.
