Touch Screen Navigation
2-36
TCD
The Thermal Conductivity Detector (TCD) is a dual-channel detector which
measures the difference in thermal conductivity between carrier gas flowing
through a reference channel and carrier gas plus sample flowing through an
analytical channel.
Four tungsten-rhenium filaments are connected in a bridge circuit, two in each
channel. The TCD is set up with the same amount of carrier gas flowing through
both channels. The presence of a sample component in the carrier gas flowing
through the analytical channel changes the resistance of the filaments in that
channel. This unbalances the bridge and produces a signal proportional to the
amount of sample.

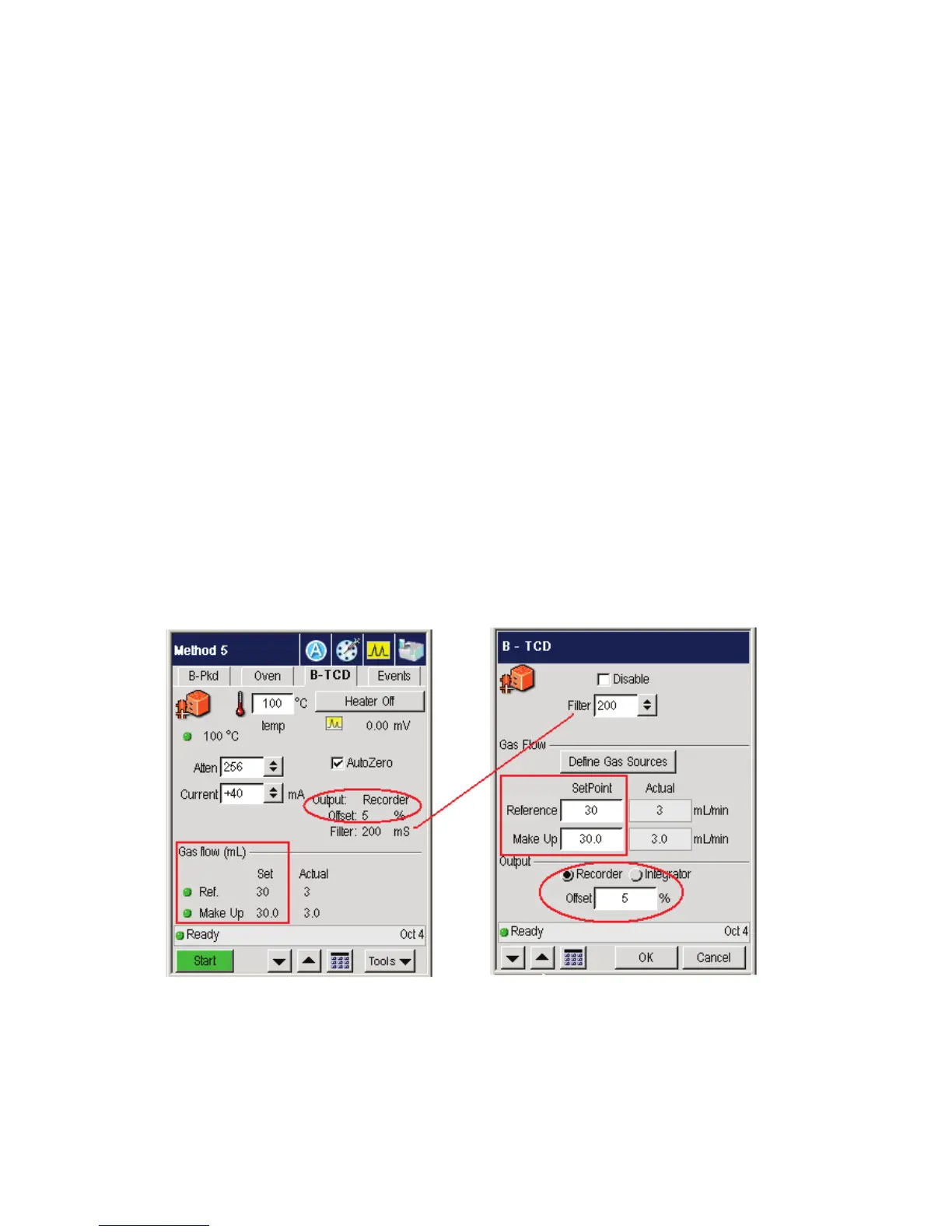

The following screens show the Active Method screen and the corresponding
settings in the Configuration screen.
Active Method Configuration Screen
