Pathology Scanner SG20 / SG60 / SG300
Network and other connections
Ethernet connections to the server(s) and for service are located at the rear side of the scanner.
21 3

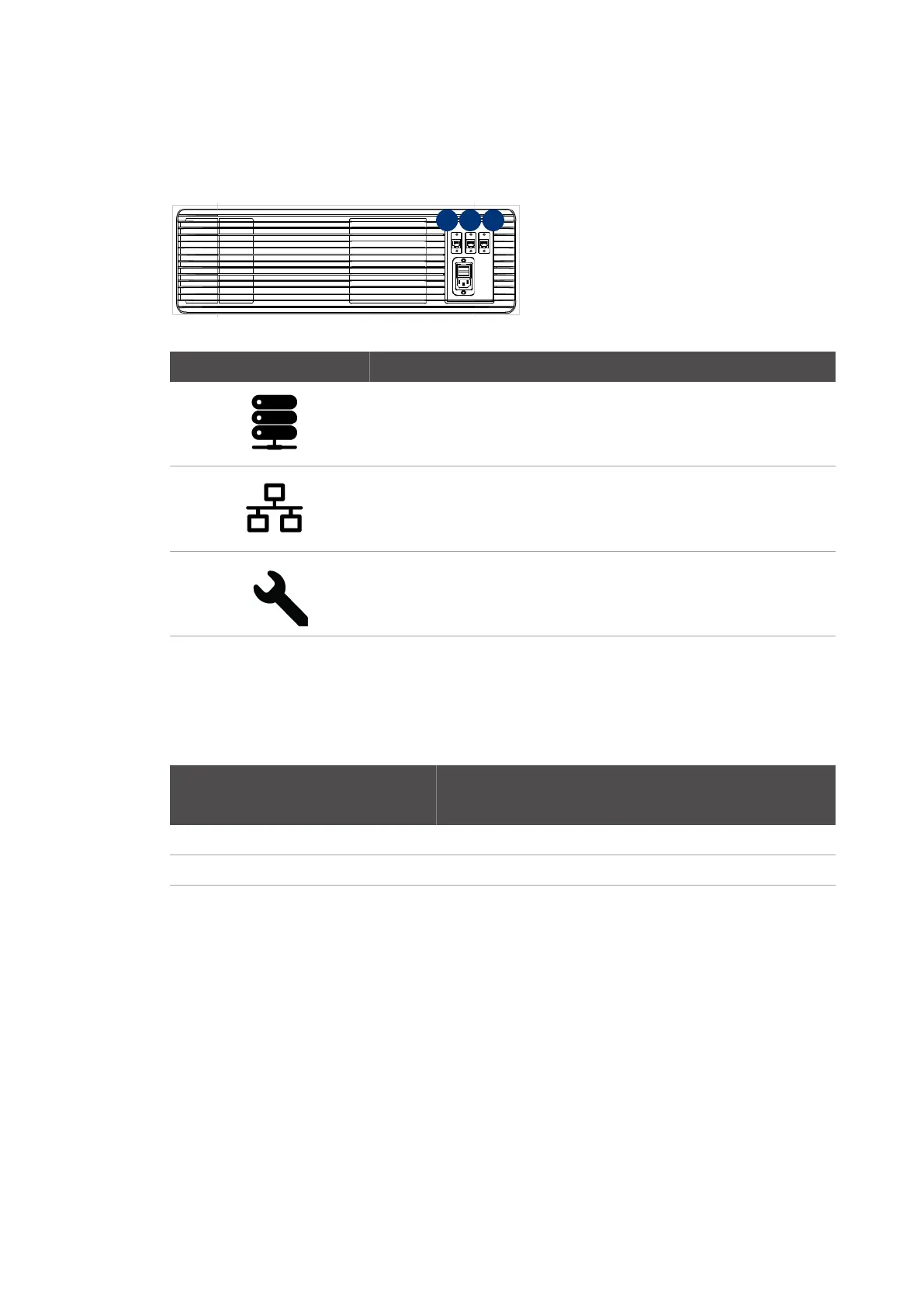

Fig. 32: Connections on rear side
Item Icon Definition Data
1 IMS connection to store the slide im-
ages and corresponding meta-data of
all scanned slides.
Category 6 (CAT 6) Ethernet cable , 3
meter.
2 Multi-purpose connection for log
transfer, NTP time synchronization and
remote access.
1Gb/s network cable with RJ45 connec-
tor, preferable CAT 6.
3 Service connection for local mainte-
nance activities
1Gb/s network cable with RJ45 connec-
tor.
Tab. 56: Connections
The throughput of the scanner depends on the speed of the network connection to the IMS. A
dedicated network connection to the IMS of 1 Gb/s is recommended for optimal scanner
performance.
See table for more information on minimum operational network parameters.
Parameter Network connection to the IMS
Bandwidth > 100 Mb/s Bandwidth > 300 Mb/s
Latency RTT < 50 ms < 125 ms
Packet loss < 0,01% < 0,01%
Tab. 57: Minimum operational network parameters (per scanner)
NOTICE
Only qualified and authorized service technicians are allowed to use the connection to the
service laptop.
Software
The scanner uses Open Source software. If you require further information about or a copy of
the used Open Source software, please contact Philips.
