RL78/G10 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 350

Dec 22, 2016

(3) Processing flow (in single-reception mode)

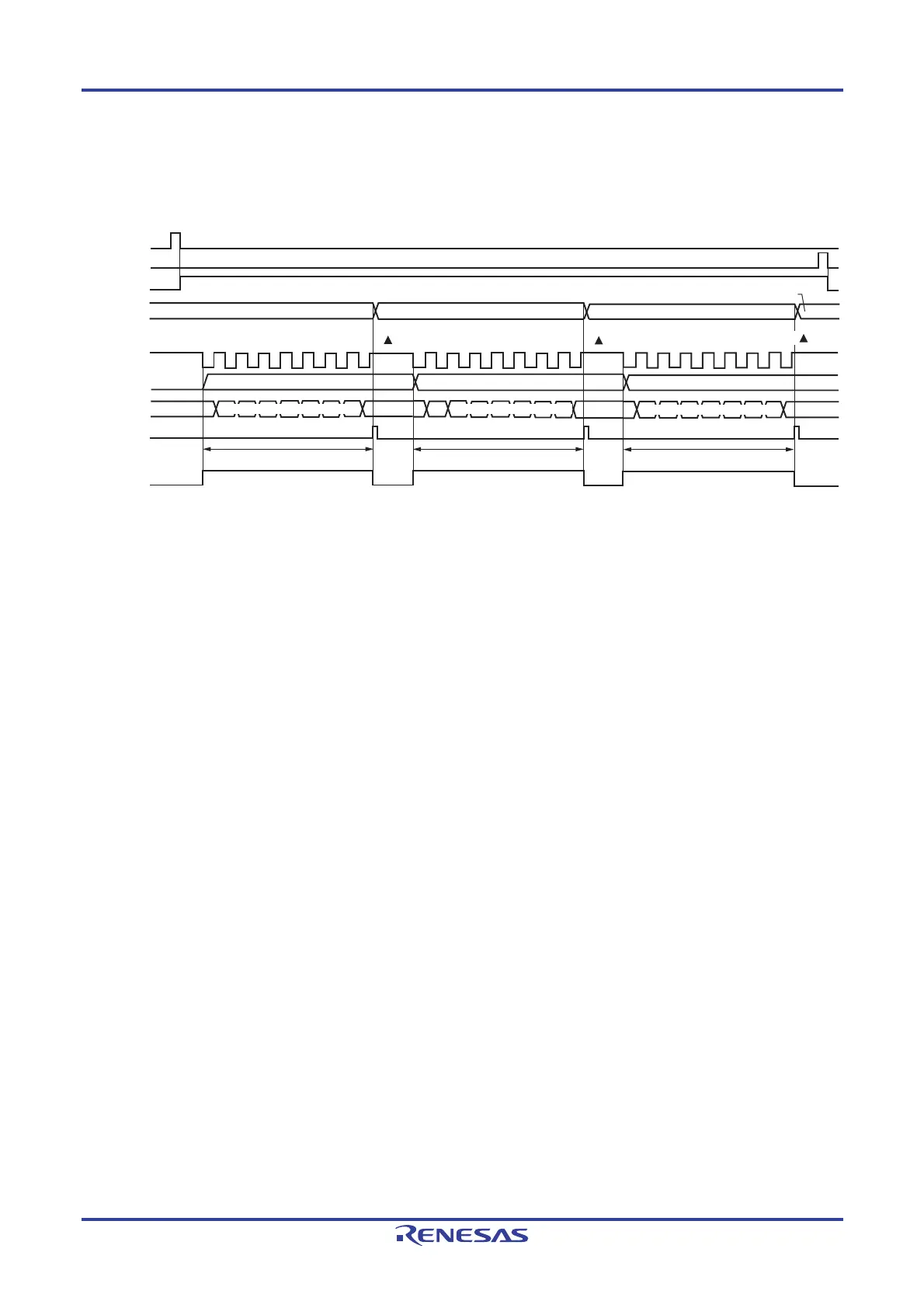

Figure 12-58. Timing Chart of Slave Reception (in Single-Reception Mode)

(Type 1: DAP0n = 0, CKP0n = 0)

SS0n

SE0n

SDR0nL

SCKp pin

SIp pin

INTCSIp

TSF0n

ST0n

Shift

Receive data 1

Receive data 2

Receive data 3

Receive data 1 Receive data 2

Receive data 3

Reception & shift operation Reception & shift operation

Reception & shift operation

Data reception Data reception Data reception

Read

Remark n = 0, 1, p: CSI number (p = 00, 01)
