RL78/G10 CHAPTER 3 CPU ARCHITECTURE

R01UH0384EJ0311 Rev. 3.11 47

Dec 22, 2016

3.4.5 SFR addressing

[Function]

SFR addressing directly specifies the target SFR addresses using 8-bit data in the instruction word. This type of

addressing is applied only to the space from FFF00H to FFFFFH.

[Operand format]

Identifier Description

SFR SFR name

SFRP 16-bit-manipulatable SFR name (even address only)

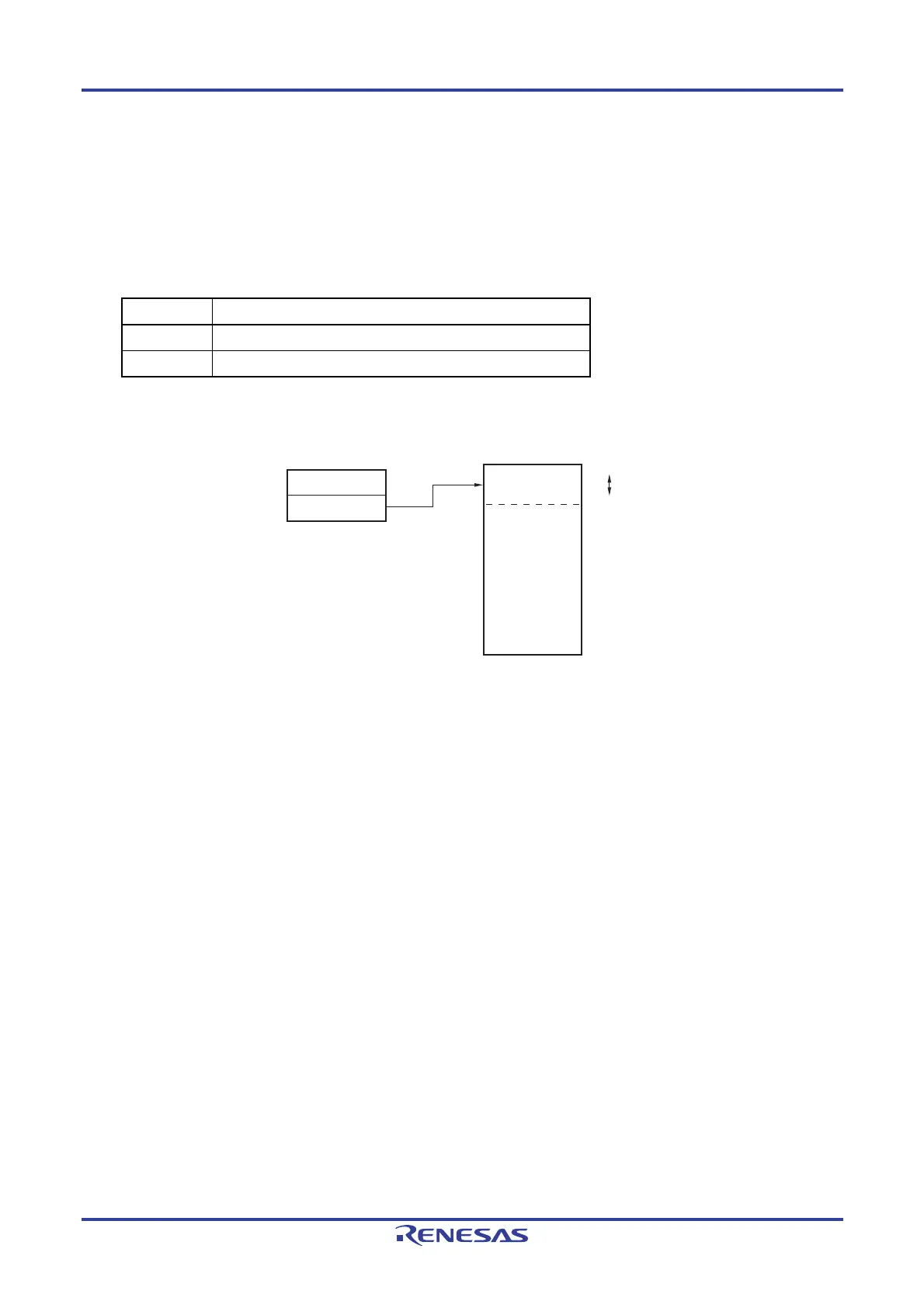

Figure 3-21. Outline of SFR Addressing

OP code

Memory

SFR

FFFFFH

FFF00H

SFR

Instruction code
