Ricoh Aficio SP C311N User Manual

Making Printer Settings Using the Control Panel
54
5
System Menu
You can set basic functions required to use the printer. The printer can be used
on factory default, but the configuration can be changed depending on the con-
dition of the user. The changed condition holds even if the printer is turned off.
Changing the System Menu
Use the following procedure to change the settings for Energy Saver timer.

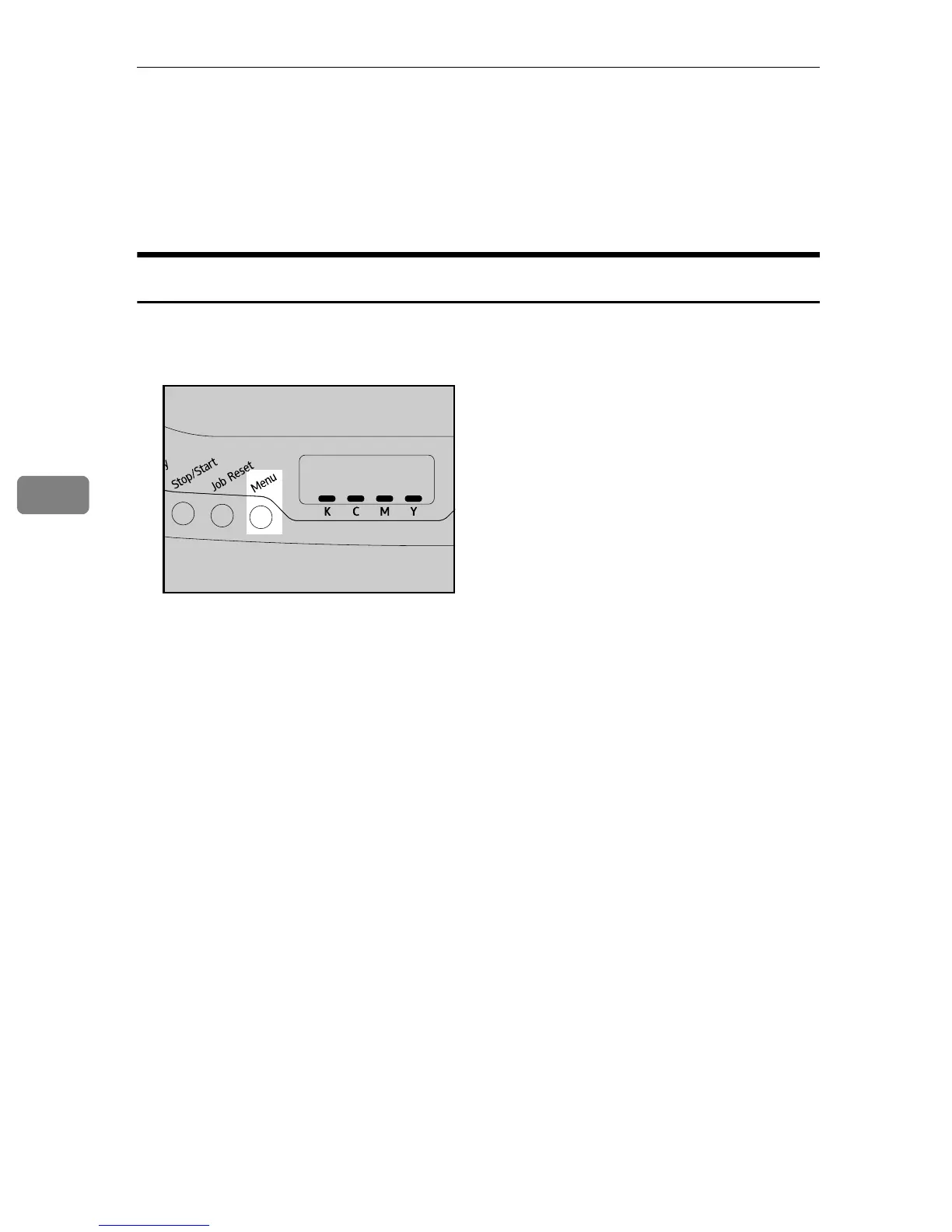

A Press the {Menu} key.
The menu screen appears.
B Press {U} or {T} to display [System], and then press the {#Enter} key.
C Press {U} or {T} to display [Energy Saver 2], and then press the {#Enter} key.
D Press {U} or {T} to display [E. Saver2 Timer], and then press the {#Enter} key.
E Select the lead time needed to switch to the Energy Saver mode using {U}
or {T}.
F Press the {#Enter} key.
The selected lead time is displayed for two seconds with an asterisk, and then
the [Energy Saver 2] screen appears.
G Press the {Menu} key to return to the initial screen.
ASI066S

Ricoh Aficio SP C311N Specifications

Printing

resolution	600 x 600 dpi (default), 1200 x 600 dpi, 2400 x 600 dpi
printing speed	26 ppm (Letter)
first print speed	13.5 sec. or less

Paper Handling

standard paper capacity	500 sheets
bypass tray capacity	100 sheets
maximum paper capacity	Up to 1, 100 sheets

Power

power source	120V, 60Hz
maximum power consumption	1300W or less
energy saver power consumption	15W or less

Weight and Dimensions

dimensions	15.8" x 15.2" x 18.9" (400 mm x 387 mm x 480 mm)
weight	61.73 lb. (28.0 kg)
