Ricoh Aficio SP C311N User Manual

Making Printer Settings Using the Control Panel
58
5
Host Interface Menu
You can set configurations about network connections and communication. The
changed configuration holds even if the printer is turned off.
Changing the Host Interface Menu
Use the following procedure to change the settings for Network Setup.

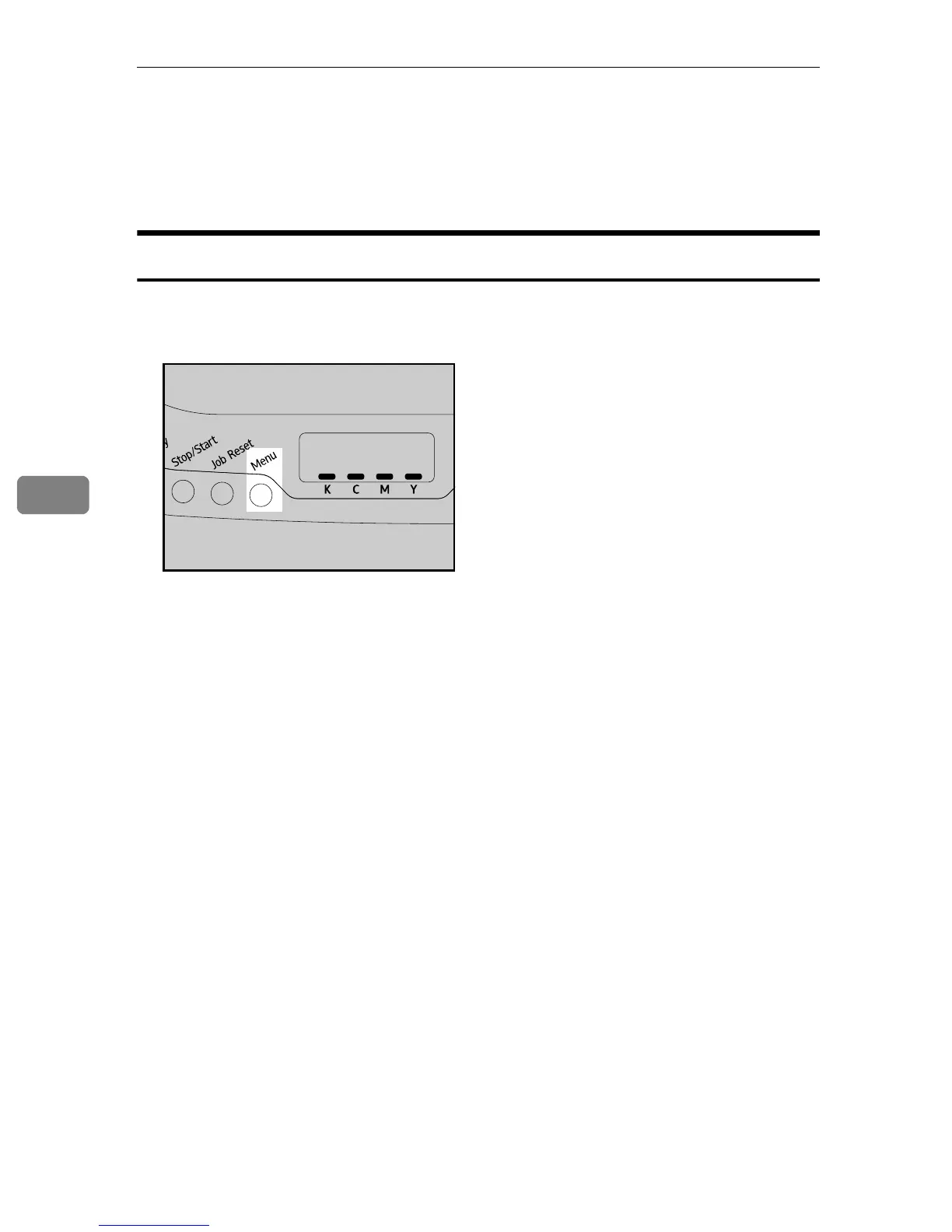

A Press the {Menu} key.
The menu screen appears.
B Press {U} or {T} to display [Host Interface], and then press the {#Enter} key.
C Press {U} or {T} to display [Network Setup], and then press the {#Enter} key.
D Press {U} or {T} to display [DHCP], and then press the {#Enter} key.
E Press {U} or {T} to display [On] or [Off] according to the network environ-
ment, and then press the {#Enter} key.
If you select [On], proceed to step
I
.
F Press {U} or {T} to display [IP Address], and then press the {#Enter} key.
G Specify the printer’s IP address using {U} or {T} keys, and then press the
{#Enter} key.
• To go to the next field, press the {#Enter} key.
• To go back to the previous field, press the {Escape} key.
H Set the subnet mask and gateway address.
Set values for each setting following the same procedure as for the IP address.
I Press the {Menu} key to return to the initial screen.
ASI066S

Ricoh Aficio SP C311N Specifications

Printing

resolution	600 x 600 dpi (default), 1200 x 600 dpi, 2400 x 600 dpi
printing speed	26 ppm (Letter)
first print speed	13.5 sec. or less

Paper Handling

standard paper capacity	500 sheets
bypass tray capacity	100 sheets
maximum paper capacity	Up to 1, 100 sheets

Power

power source	120V, 60Hz
maximum power consumption	1300W or less
energy saver power consumption	15W or less

Weight and Dimensions

dimensions	15.8" x 15.2" x 18.9" (400 mm x 387 mm x 480 mm)
weight	61.73 lb. (28.0 kg)
