Configure Bus-sharing Groups
Group 1 is a shared AC/DC hybrid configuration. The Bus Configuration for
the first two converter drives is Shared AC/DC. The Bus Configuration for the
inverter drives is Shared DC.

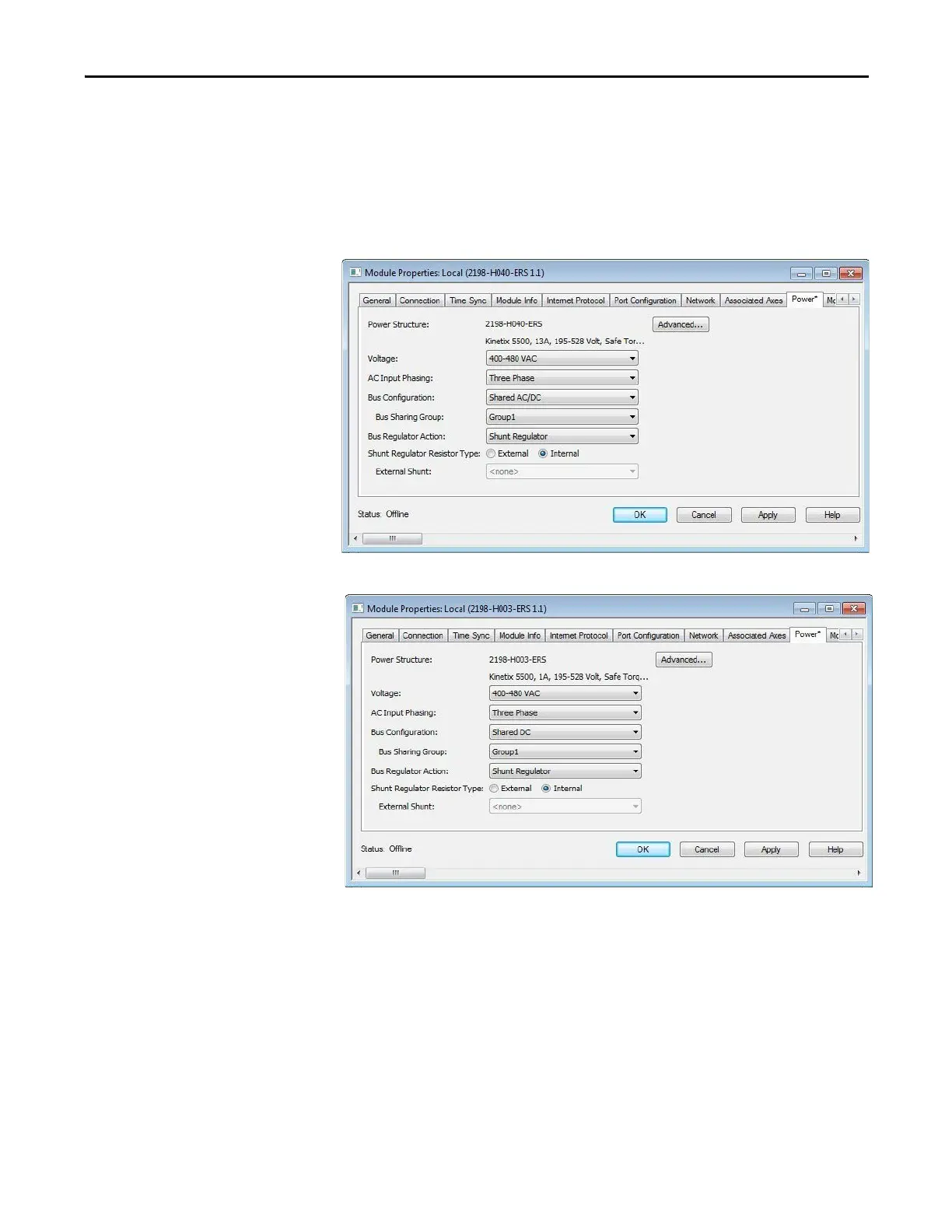

Figure 60 - Group 1 Converter Drives Configuration
Figure 61 - Group 1 Inverter Drives Configuration
