Star Topology
In this example, the devices are connected by using star topology. Each device is
connected directly to the switch.
Kinetix 5500 drives have dual ports, so linear topology is maintained from drive-
to-drive, but Kinetix 5500 drives and other devices operate independently. The
loss of one device does not impact the operation of other devices.

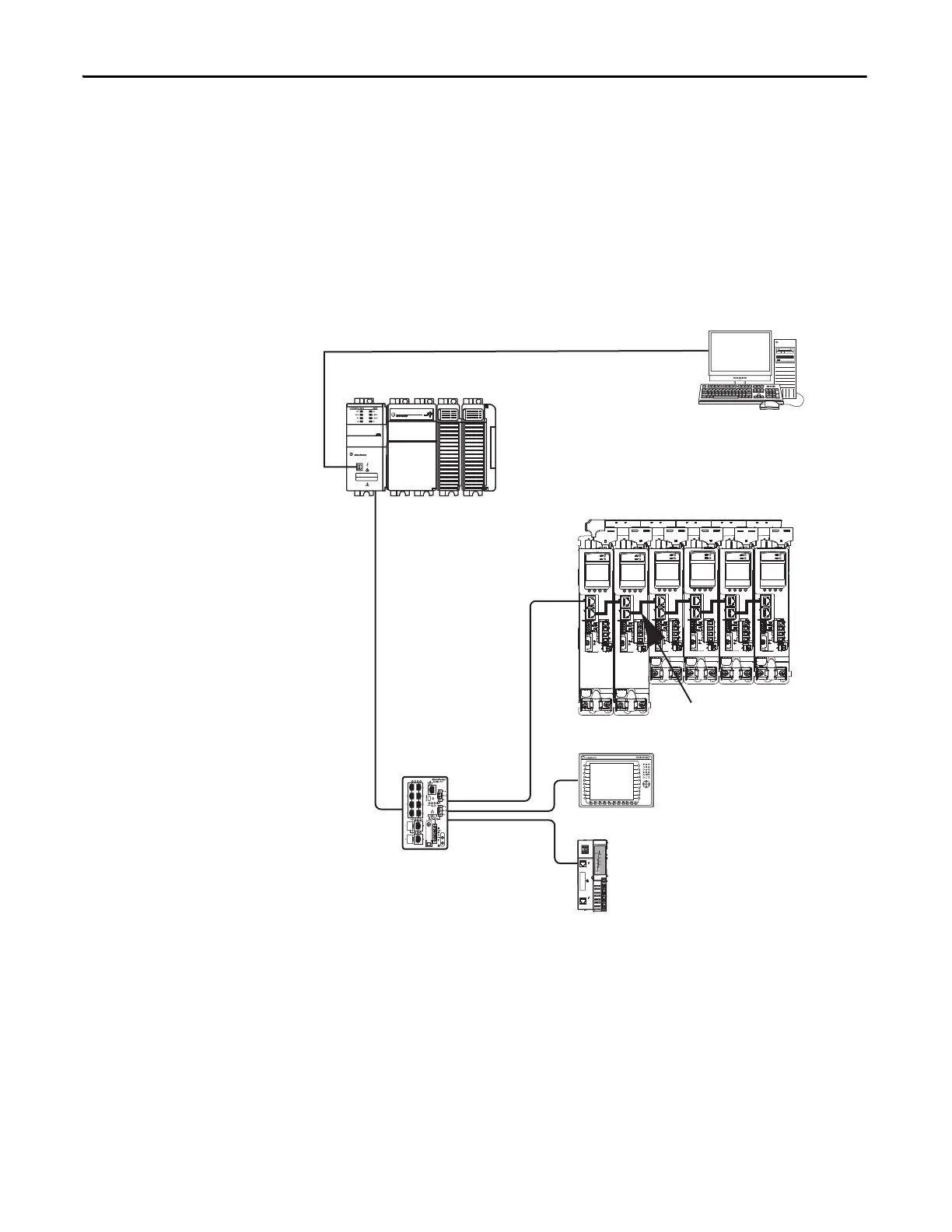

Figure 8 - Kinetix 5500 Star Communication Installation
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
1585J-M8CBJM-x
Ethernet (shielded) Cable
1734-AENTR POINT I/O
EtherNet/IP Adapter
CompactLogix Controller Programming Network
PanelView Plus
Display Terminal
1783-BMS
Stratix 5700™
Switch
1585J-M8CBJM-OM3
0.3 m (1.0 ft) Ethernet cable
for drive-to-drive connections.
Kinetix 5500 Servo Drive System
CompactLogix 5370 Controller
Logix Designer
Application
