Rockwell Automation Publication 2198-UM001D-EN-P - May 2014 71
Connecting the Kinetix 5500 Drive System Chapter 5

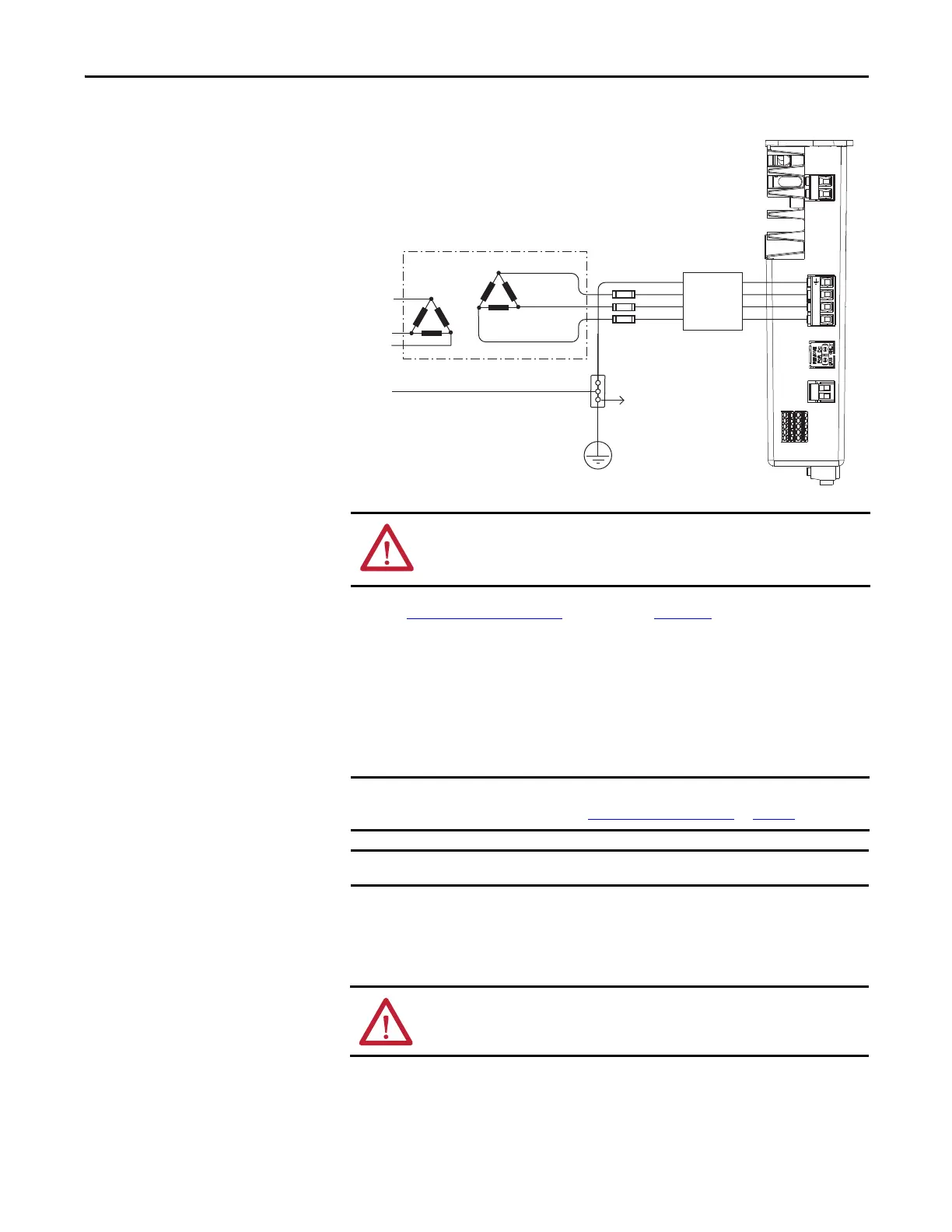

Figure 37 - Ungrounded Power Configuration
Refer to Power Wiring Examples beginning on page 190 for input power
interconnect diagrams.
Removing the Grounding
Screws in Ungrounded Power
Configurations
Removing the grounding screws is necessary only when using ungrounded or
corner-ground power configurations. Removing the screws involves gaining
access, opening the sliding door, and removing the screws.
Removing the grounding screws in multi-axis configurations is best done when
the drive is removed from the panel and placed on its side on a solid surface
equipped as a grounded static-safe workstation.
L3
L2
L1
1
2
L3
L2
L1
1
2
Transformer
Three-phase
Input VAC
Chassis Ground
Bonded Cabinet
Ground
Ground Grid or
Power Distribution Ground
Connect to ground stud.
Three-phase
AC Line Filter
Input Fusing
Kinetix 5500 Servo Drive
(top view)
ATTENTION: Ungrounded systems do not reference each phase potential to a
power distribution ground. This can result in an unknown potential to earth
ground.
If you have grounded power distribution, you do not need to remove the
grounding screws. Go to Grounding the Drive System
on page 73.
Removing the grounding screws can affect EMC performance.
ATTENTION: By removing the grounding screws for ungrounded power
configurations, you no longer maintain line-to-neutral voltage protection.
To Next Page
