82 Rockwell Automation Publication 2198-UM001D-EN-P - May 2014
Chapter 5 Connecting the Kinetix 5500 Drive System
Motor Brake Connections

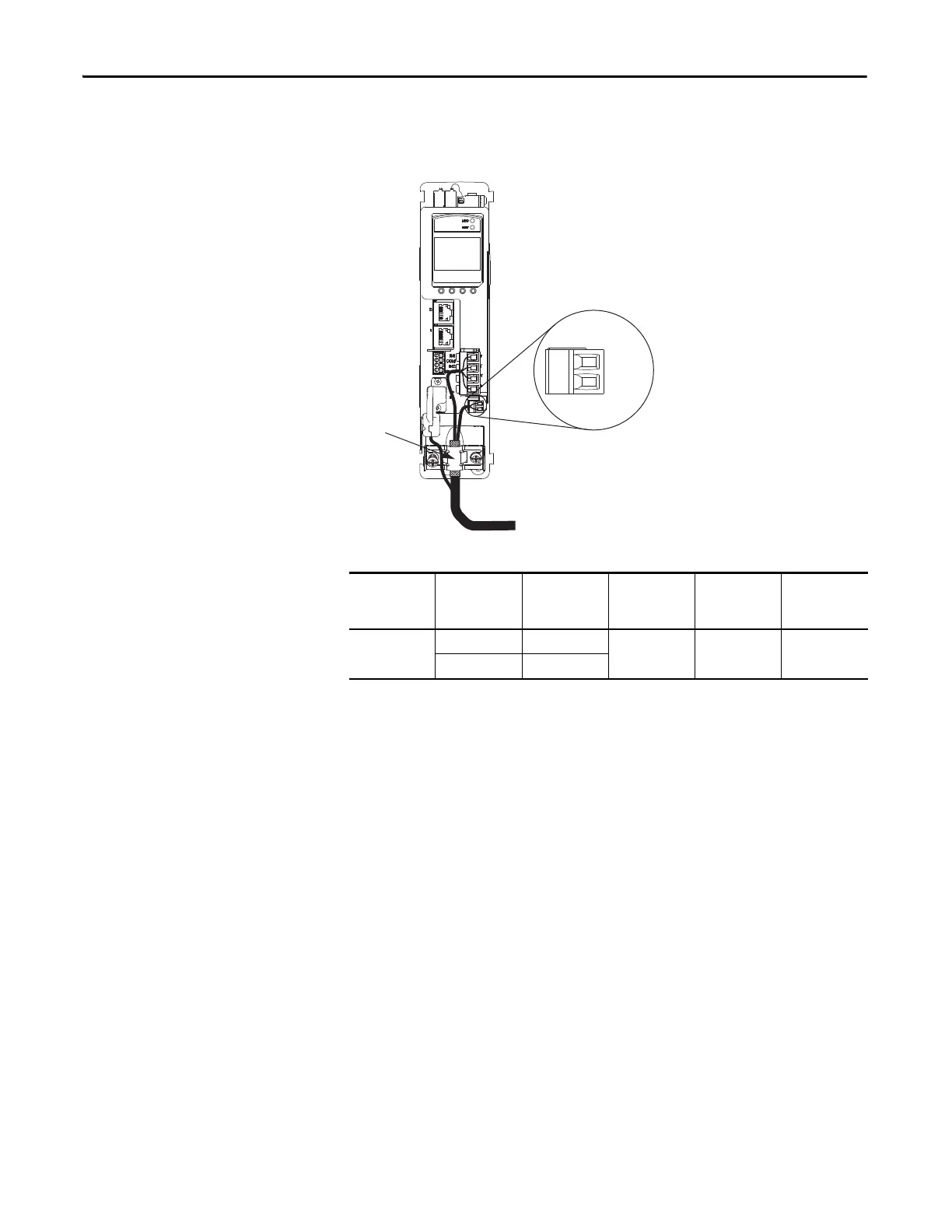

Figure 47 - BC Connector Wiring
Table 39 - Motor Brake (BC) Connector Specifications
MBRK-
MBRK+
2
1
Motor Cable
Shield Clamp
Motor Brake (BC) Connector Plug
Kinetix 5500 Servo Drive
(front view)
Drive Cat. No. Pin
Signal/
Wire Color
Recommended
Wire Size
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-Hxxx-ERSx
BC-1 MBRK+/Black
N/A
(1)
(1) Motor brake wires are part of the 2090-CSBM1DF-xxAAxx motor cable.
7.0 (0.28)
0.22…0.25
(1.9…2.2)
BC-2 MBRK-/White
