Appendix A Interconnect Diagrams
System Block Diagrams
This section provides block diagrams of the Kinetix 5500 drive modules.

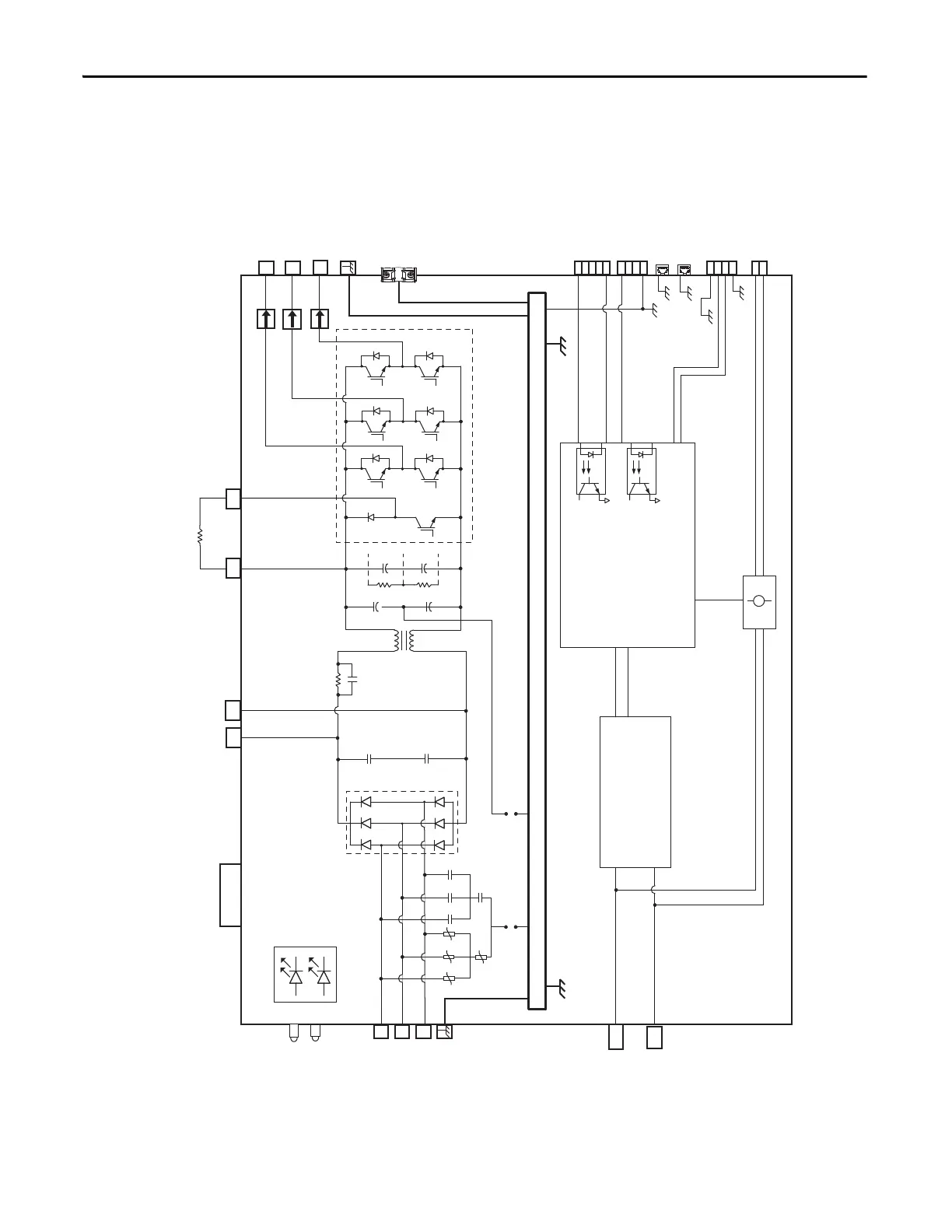

Figure 97 - Kinetix 5500 Drive Block Diagram
L1
L2
L3
DC+
DC-
DC+
SH
U
V
W
24V+
24V-
Three-phase Input
Power Connector
DC Bus Connector
Internal or External
Shunt Resitor
Shunt Connector
24V Control
Power Connector
AC Ground Jumper
DC Ground Jumper
Switched Mode Power Supply
Control Power
Encoder Power
Control Board
Chassis
Three-phase Motor Poewr Connector
Motor Cable Clamp
Safe Torque-off Connector
Digital Inputs Connector
Ethernet PORT1
Ethernet PORT2
Motor Feedback Connector
Motor Brake Connector
LCD Display
Module Status
Network Status
Status Indicators
