194 Rockwell Automation Publication 2198-UM001D-EN-P - May 2014
Appendix A Interconnect Diagrams
Shunt Resistor Wiring
Example
Refer to the External Shunt Resistor Connections on page 96 for the Bulletin
2097 external shunt resistor catalog numbers available for Kinetix 5500 servo
drives.

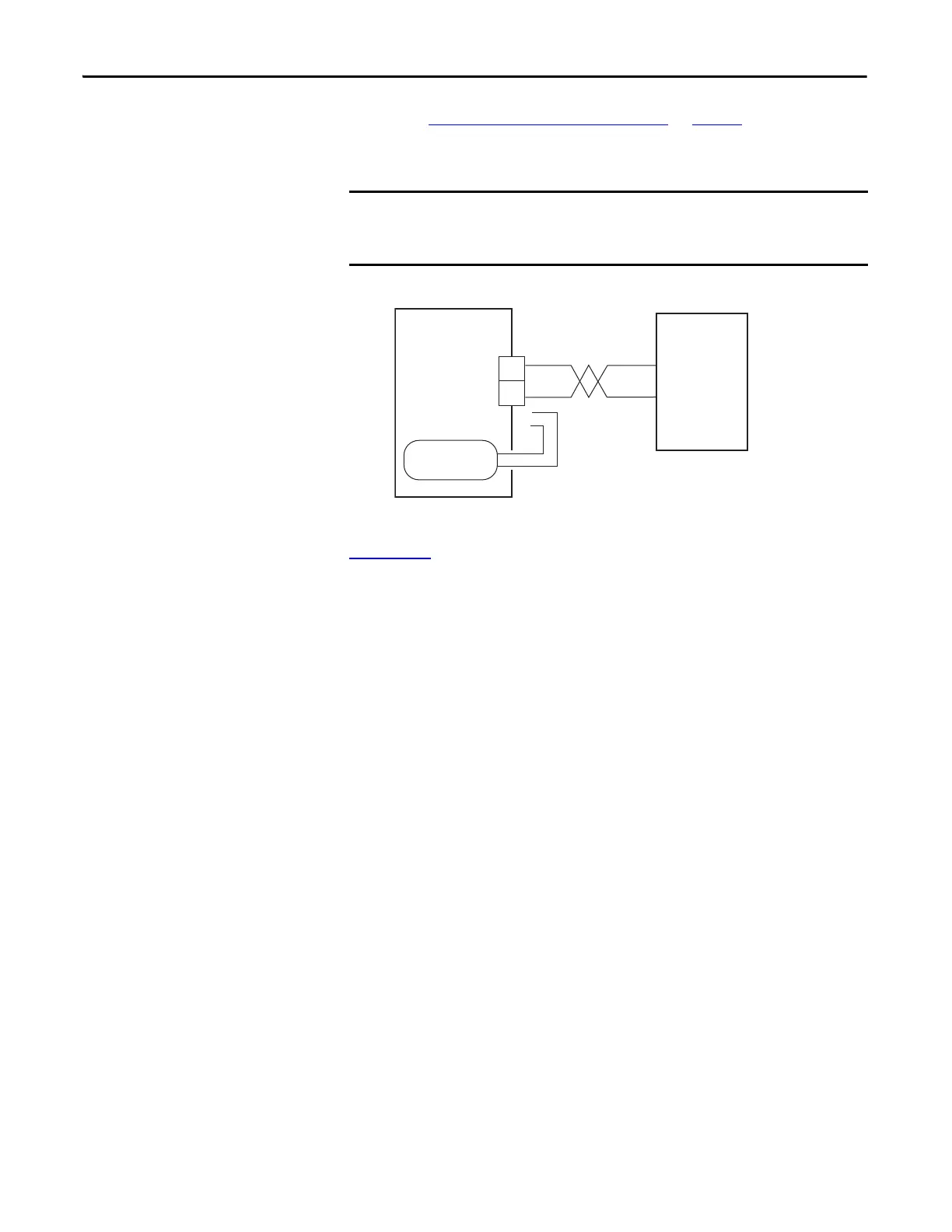

Figure 90 - Shunt Resistor Wiring Example
Refer to the Kinetix 300 Shunt Resistor Installation Instructions, publication
2097-IN002
, for shunt resistor installation instructions.
Before wiring the Bulletin 2097 external shunt to the RC connector, remove the
wires from the servo drive internal shunt. Do not connect internal and external
shunt resistors to the drive.
2198-Hxxx-ERSx
Kinetix 5500 Drive
2097-Rx
Shunt
Resistor
Shunt (RC)
Connector
Internal Shunt
To Next Page
