Chapter 1 Operation Procedures

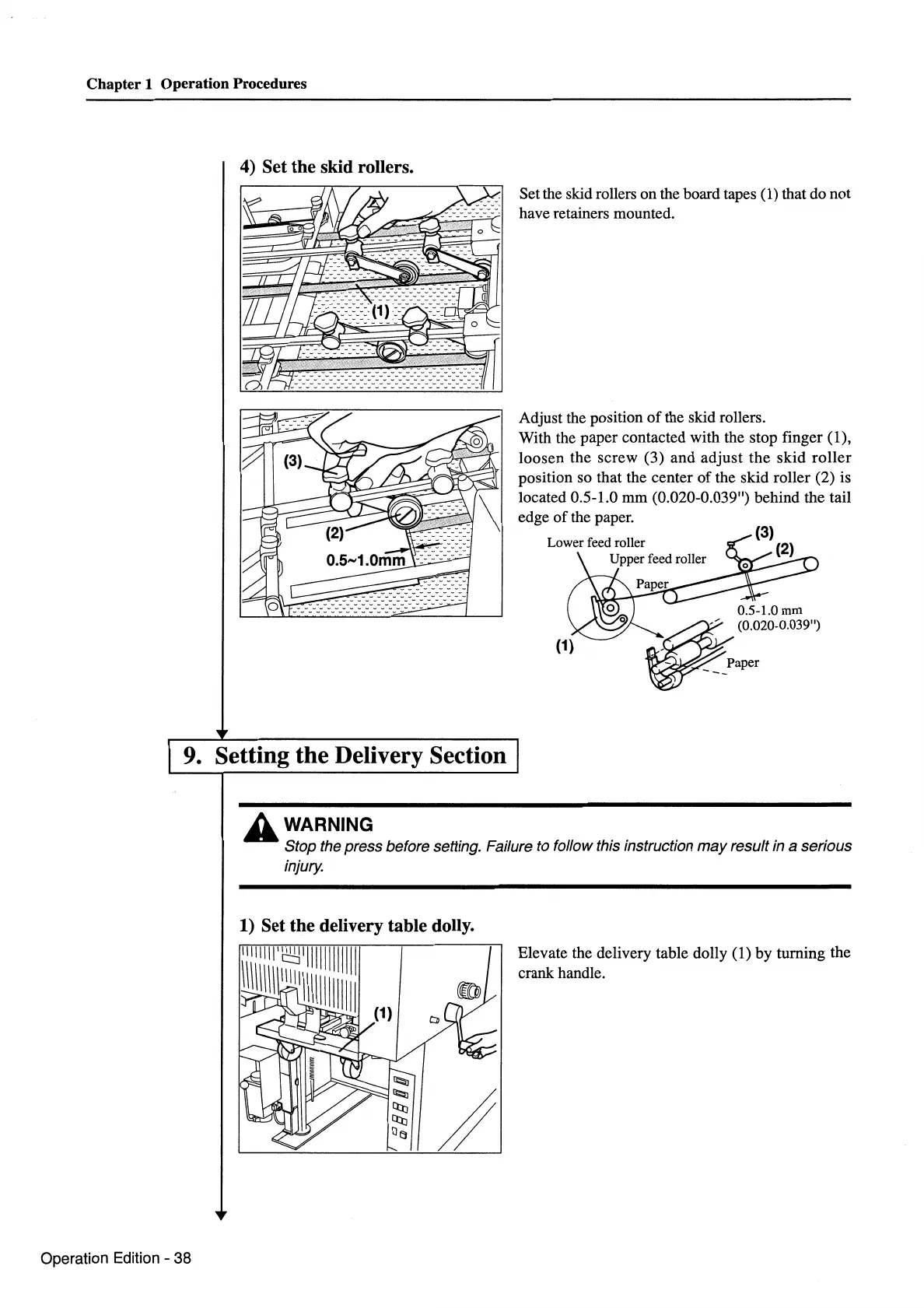

4) Set the skid rollers.
9.
Setting the Delivery Section
Set the skid rollers on the board tapes (
1)
that do not
have retainers mounted.
Adjust the position
of
the skid rollers.
With the paper contacted with the stop finger
(1),
loosen the screw (3) and adjust the skid
roller
position so that the center
of
the skid roller (2) is
located 0.5-1.0 mm (0.020-0.039") behind the tail
edge
of
the paper.
0.5-l.Omm
;;~
(0.020-0.039")
w-:-Paper
A WARNING
Stop the press before setting. Failure to follow this instruction
may
result in a serious
injury.
Operation Edition - 38
1) Set the delivery table dolly.
I\\IIIII'G\111111111111
1111111\\
IIIII
\\\\\\\111111
Elevate the delivery table dolly (1) by turning the
crank handle.
To Next Page
