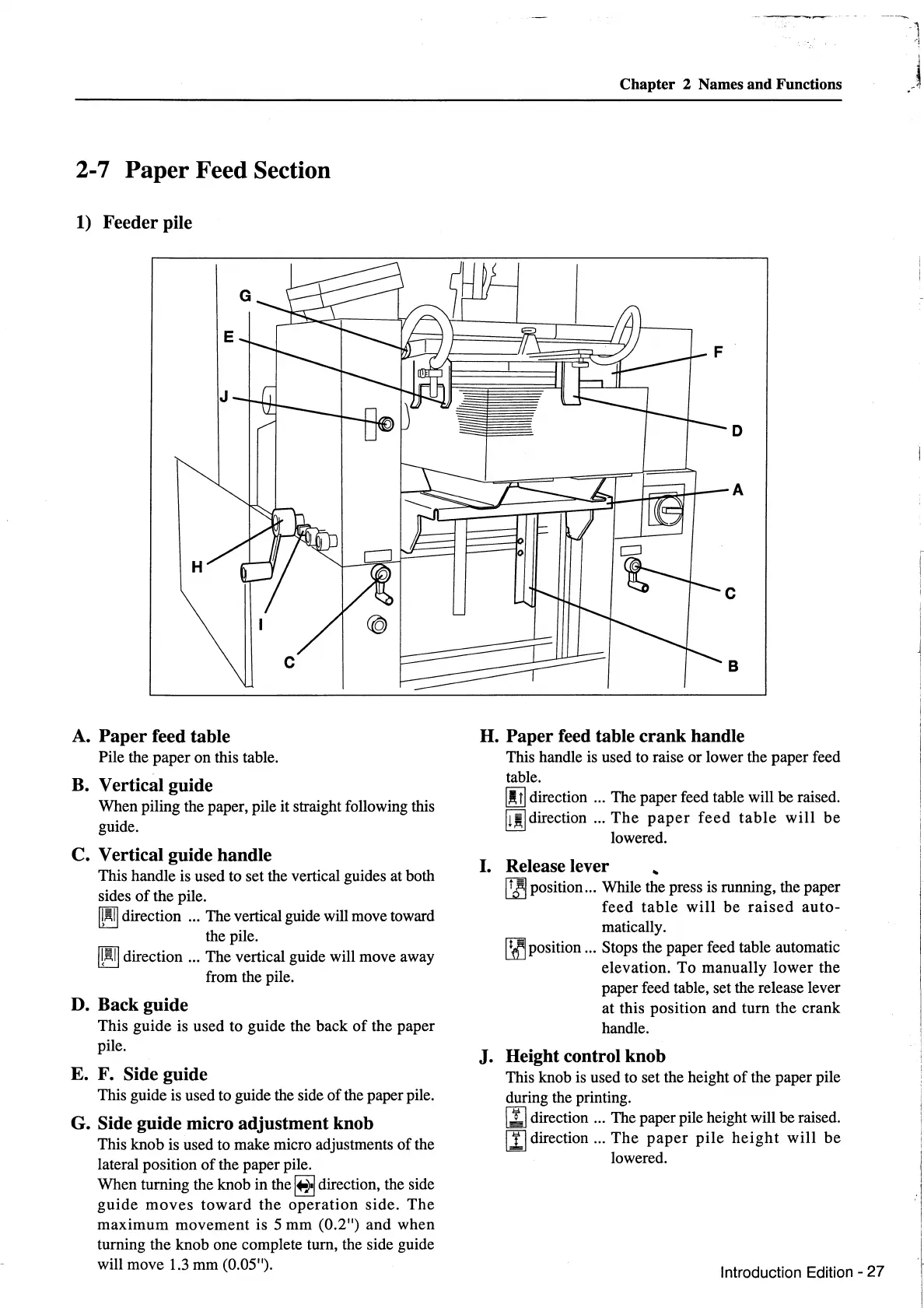

2-7
Paper
Feed Section
1) Feeder pile
H
A.
Paper
feed table
Pile the paper on this table.
B. Vertical guide
When piling the paper, pile it straight following this
guide.
C. Vertical guide handle
This handle is used to set the vertical guides at both
sides
of
the pile.
~
direction ... The vertical guide will move toward
the pile.
~
direction ... The vertical guide will move away
from the pile.
D. Back guide
This guide is used to guide the back
of
the paper
pile.
E. F. Side guide
This guide is used to guide the side of the paper pile.
G. Side guide micro adjustment knob
This knob is used to make micro adjustments
of
the
lateral position
of
the paper pile.
When turning the knob in
the~
direction, the side
guide
moves
toward
the
operation
side.
The
maximum
movement is 5 mm (0.2") and when
turning the knob one complete tum, the side guide
will move
1.3
mm (0.05").
Chapter
2 Names
and
Functions
H.
Paper
feed table
crank
handle
This handle is used to raise or lower the paper feed
table.
[!!]
direction . . . The paper feed table will be raised.
[!]direction
...
The
paper
feed
table
will
be
lowered.
I. Release lever
..
~
position ... While the press is running, the paper
feed
table
will
be
raised
auto-
matically.
~position
... Stops the paper feed table automatic
elevation. To manually lower the
paper feed table, set the release lever
at this position and
tum
the crank
handle.
J. Height control knob
This knob is used
to
set the height
of
the paper pile
during the printing.
[!] direction ... The paper pile height will be raised.
!I]
direction ...
The
paper
pile
height
will
be
lowered.
Introduction Edition - 27
